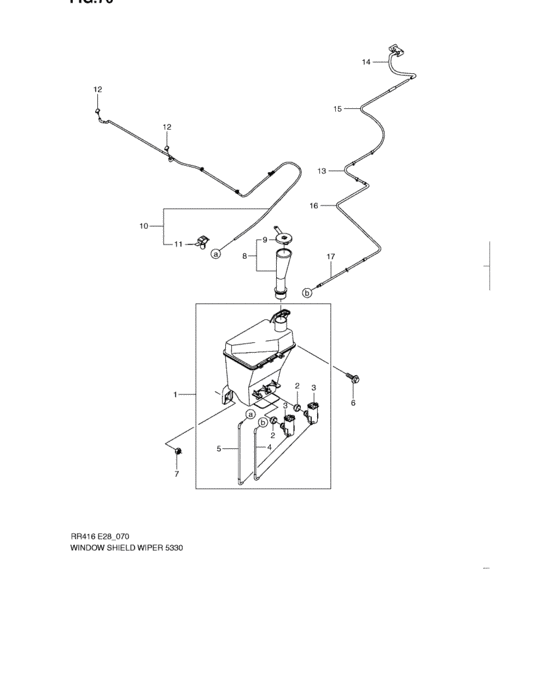

Windshield washer (WINDSHIELD WASHER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38400-84Z00-000
Washer assy, windshield
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
38400-84Z00-000 |
— | ||
|
1
|
1
38400-84Z10-000
Washer assy, windshield
09 MODEL |
38400-84Z10-000 |
— | ||
|
2
|
2
38453-84Z00-000
Grommet
|
38453-84Z00-000 |
— | ||
|
3
|
3
38410-84Z00-000
Pump assy, washer
|
38410-84Z00-000 |
— | ||
|
4
|
4
38491-84Z00-000
Hose assy, washer
04 MODEL,05 MODEL,06 MODEL |
38491-84Z00-000 |
— | ||
|
5
|
5
38491-84Z30-000
Hose assy, washer
|
38491-84Z30-000 |
— | ||
|
6
|
6
38470-84Z00-000
Bolt
|
38470-84Z00-000 |
— | ||
|
7
|
7
72516-86Z00-000
Nut
|
72516-86Z00-000 |
— | ||
|
8
|
8
38402-84Z00-000
Inlet set, washer
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
38402-84Z00-000 |
— | ||
|
8
|
8
38402-84Z10-000
Inlet set, washer
09 MODEL |
38402-84Z10-000 |
— | ||
|
9
|
9
38452-84Z00-000
Cap, washer tank
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
38452-84Z00-000 |
— | ||
|
9
|
9
38452-84Z10-000
Cap, washer tank
09 MODEL |
38452-84Z10-000 |
— | ||
|
10
|
10
38491-84Z10-000
Hose assy, washer
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
38491-84Z10-000 |
— | ||
|
11
|
11
34935-86Z00-000
Clip, washer hose
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
34935-86Z00-000 |
— | ||
|
12
|
12
38480-84Z00-000
Nozzle assy, windshield
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
38480-84Z00-000 |
— | ||
|
12
|
12
38480-84Z10-000
Nozzle assy, windshield
09 MODEL |
38480-84Z10-000 |
— | ||
|
13
|
13
38491-84Z20-000
Hose assy, washer
|
38491-84Z20-000 |
— | ||
|
14
|
14
38840-84Z00-000
Nozzle assy, rear washer
|
38840-84Z00-000 |
— | ||
|
15
|
15
38492-84Z00-000
Hose, tail gate
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL,09 MODEL |
38492-84Z00-000 |
— | ||
|
16
|
16
38493-84Z00-000
Hose, roof
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL,09 MODEL |
38493-84Z00-000 |
— | ||
|
17
|
17
38494-84Z00-000
Hose, rear washer
04 MODEL,05 MODEL,06 MODEL,07 MODEL |
38494-84Z00-000 |
— |
