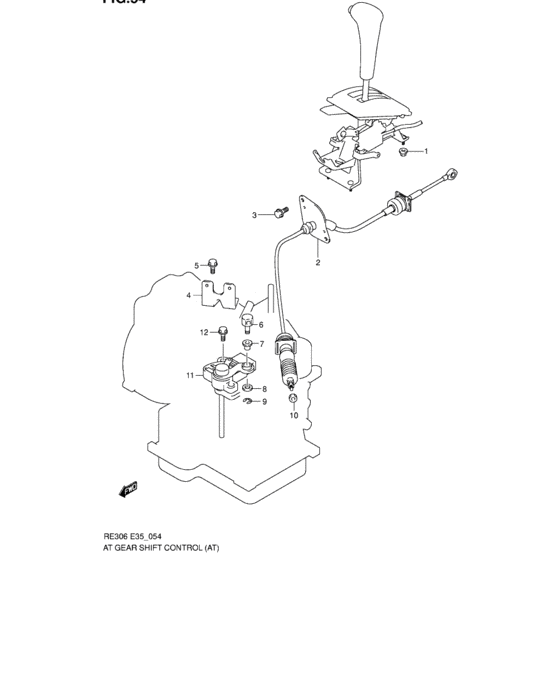

At gear shift control (AT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
1
|
1
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
2
|
2
28210-78G11-000
ケーブルアッシ,セレクト
|
28210-78G11-000 |
— | ||
| replacement | |||||
|
2
|
2
28210-78G12-000 CABLE ASSY,SELECT |
28210-78G12-000 |
US $129.54 |
||
|
3
|
3
02162-06203-000
Bolt
|
02162-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.83 |
||
|
4
|
4
28221-61D11-000 BRACKET,SELECT CABLE |
28221-61D11-000 |
US $6.59 |
||
|
5
|
5
28223-61D00-000 BoltBolt, selector cable bracket |
28223-61D00-000 |
US $3.97 |
||
|
6
|
6
28291-78233-000 JOINT,CABLE |
28291-78233-000 |
from US $0.43 |
||
|
7
|
7
09305-08012-000 BUSH |
09305-08012-000 |
from US $1.15 |
||
|
8
|
8
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
8
|
8
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.96 |
||
|
8
|
8
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
9
|
9
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
9
|
9
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.96 |
||
|
9
|
9
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.27 |
||
|
10
|
10
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
10
|
10
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
11
|
11
37720-76G31-000 SWITCH ASSY,SHIFT |
37720-76G31-000 |
from US $134.46 |
||
|
12
|
12
25948-76G10-000
Bolt, shift switch
|
25948-76G10-000 |
— | ||
| replacement | |||||
|
12
|
12
25948-76G11-000 BOLT,SHIFT SWITCH |
25948-76G11-000 |
from US $1.98 |
||
