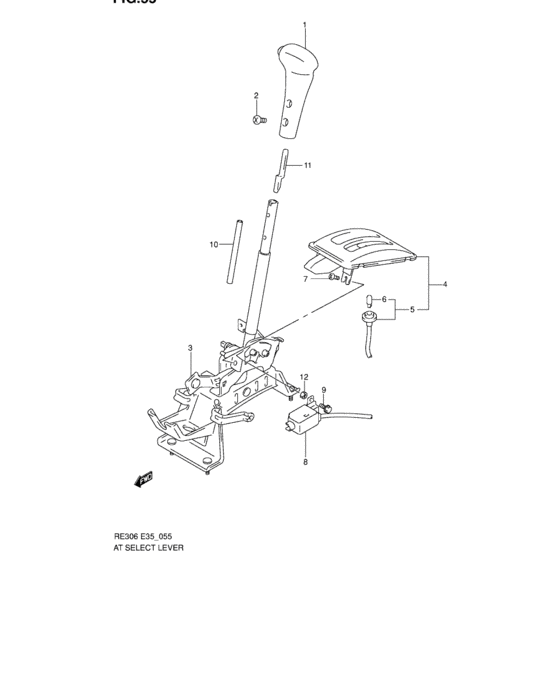

At selector lever (AT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28160-78G10-000
KNOB ASSY,SEL LEVER
|
28160-78G10-000 |
— | ||
| replacement | |||||
|
1
|
1
28160-78G11-000 KNOB ASSY,SEL LEVER |
28160-78G11-000 |
US $68.82 |
||
|
2
|
2
09125-05117-000 SCREW(5X6)Screw (5x6) |
09125-05117-000 |
from US $0.72 |
||
|
3
|
3
28110-74G70-000
Lever assy, select
TYPE 1 |
28110-74G70-000 |
— | ||
|
3
|
3
28110-74GL0-000
Lever assy, select
TYPE 2,TYPE 3 |
28110-74GL0-000 |
— | ||
|
3
|
3
28110-74GH1-000 LEVER ASSY,SELECTTYPE 4,TYPE 5 |
28110-74GH1-000 |
US $195.04 |
||
|
4
|
4
28150-74G70-000
INDICATOR ASSY,SELECT
TYPE 1,TYPE 2,TYPE 3 |
28150-74G70-000 |
— | ||
|
4
|
4
28150-74GH0-000 INDICATOR ASSY,UPRTYPE 4,TYPE 5 |
28150-74GH0-000 |
US $58.51 |
||
|
5
|
5
28159-76G10-000 LAMP ASSY,SEL LEVER ILLUMTYPE 1,TYPE 2,TYPE 3 |
28159-76G10-000 |
from US $10.62 |
||
|
5
|
5
28159-74G10-000 LAMP ASSY,ILLUMTYPE 4,TYPE 5 |
28159-74G10-000 |
US $16.89 |
||
|
6
|
6
09471-12077-000 BULB(12V1.7W,T10,WB121)TYPE 1,TYPE 2,TYPE 3 |
09471-12077-000 |
from US $1.52 |
||
|
6
|
6
28182-74G10-000 BULB,ILLUM LAMPTYPE 4,TYPE 5 |
28182-74G10-000 |
US $3.50 |
||
|
7
|
7
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.72 |
||
|
8
|
8
28610-76G30-000 SOLENOID,SHIFT LOCKTYPE 1 |
28610-76G30-000 |
US $62.93 |
||
|
8
|
8
28610-74GH0-000 SOLENOID,SHIFT LOCKTYPE 4,TYPE 5 |
28610-74GH0-000 |
US $75.81 |
||
|
9
|
9
28178-51E30-000
Bolt, solenoid
TYPE 1 |
28178-51E30-000 |
— | ||
| replacement | |||||
|
9
|
9
09118-05006-000 BOLT(5X8)TYPE 1 |
09118-05006-000 |
US $19.90 |
||
|
9
|
9
28178-74GH0-000 BOLT,SOLENOIDTYPE 4,TYPE 5 |
28178-74GH0-000 |
US $2.39 |
||
|
10
|
10
28118-64B61-000 TUBE,SWITCH WIRE HARNESS |
28118-64B61-000 |
US $1.88 |
||
|
11
|
11
28164-76G11-000 GUIDE,DETENT RELEASE ROD |
28164-76G11-000 |
US $6.96 |
||
|
12
|
12
28176-74GJ0-000 NUT,SHIFT LOCK SOLENOIDTYPE 4,TYPE 5 |
28176-74GJ0-000 |
US $1.91 |
||
