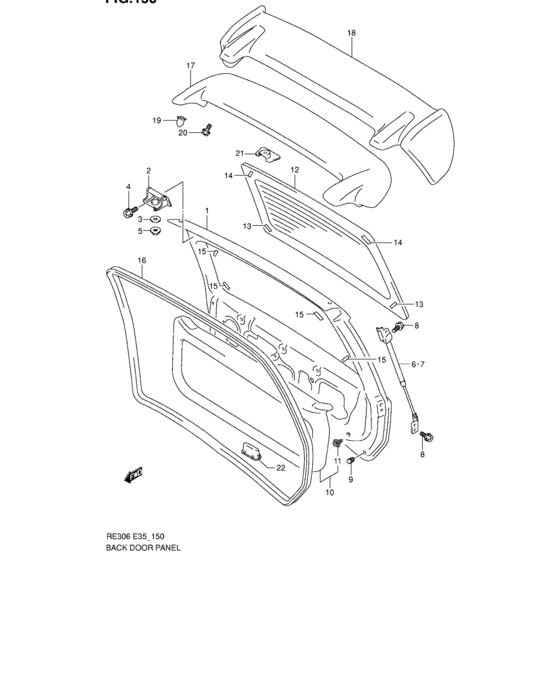

Back door panel (BACK DOOR PANEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-74G21-000
Panel assy, back door
TYPE 1,TYPE 2,->69100-82G10,USED WITH 82841-82G00-P4Z |
69100-74G21-000 |
— | ||
| replacements | |||||
|
1
|
1
35819-72J00-000 COVER,HIGH MT STOP LAMP HOLETYPE 1,TYPE 2,->69100-82G10,USED WITH 82841-82G00-P4Z |
35819-72J00-000 |
US $2.58 |
||
|
1
|
1
69100-82GC0-000 PANEL ASSY,BACK DOORTYPE 1,TYPE 2,->69100-82G10,USED WITH 82841-82G00-P4Z |
69100-82GC0-000 |
US $503.36 |
||
|
1
|
1
82841-82G02-000 HANDLE,BACK DOOR INNERTYPE 1,TYPE 2,->69100-82G10,USED WITH 82841-82G00-P4Z |
82841-82G02-000 |
from US $6.08 |
||
|
1
|
1
69100-82G10-000
パネルアッシ,バックドア(スポイラ)
TYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
69100-82G10-000 |
— | ||
| replacements | |||||
|
1
|
1
35819-72J00-000 COVER,HIGH MT STOP LAMP HOLETYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
35819-72J00-000 |
US $2.58 |
||
|
1
|
1
69100-82GC0-000 PANEL ASSY,BACK DOORTYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
69100-82GC0-000 |
US $503.36 |
||
|
2
|
2
69510-76G00-000 HINGE,BACK DOOR |
69510-76G00-000 |
from US $16.49 |
||
|
3
|
3
69571-76G00-000 PACKING,BACK DR HNG |
69571-76G00-000 |
US $2.24 |
||
|
4
|
4
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
5
|
5
08361-25083-000
Nut
|
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.96 |
||
|
6
|
6
81850-74G11-X10
バランサ,バックドア,ライト
|
81850-74G11-X10 |
— | ||
| replacement | |||||
|
6
|
6
81850-74G11-000 BALANCER,BACK DR,R |
81850-74G11-000 |
US $82.80 |
||
|
7
|
7
81860-74G11-X10
バランサ,バックドア,レフト
|
81860-74G11-X10 |
— | ||
| replacement | |||||
|
7
|
7
81860-74G11-000 BALANCER,BACK DR,L |
81860-74G11-000 |
US $82.80 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
9
|
9
82683-60B10-000 CUSHION |
82683-60B10-000 |
from US $1.92 |
||
|
10
|
10
83770-74G00-V12
Trim, back door (gray)
TYPE 1 |
83770-74G00-V12 |
— | ||
| replacement | |||||
|
10
|
10
83770-74G00-T01
TRIM,BACK DOOR
TYPE 1 |
83770-74G00-T01 |
— | ||
|
10
|
10
83770-74G00-T01
TRIM,BACK DOOR
TYPE 2 |
83770-74G00-T01 |
— | ||
|
10
|
10
83770-74G00-P4Z TRIM,BACK DOORTYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
83770-74G00-P4Z |
US $87.95 |
||
|
11
|
11
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
12
|
12
84570-74G01-000
GLASS,BACK DR WINDOW
|
84570-74G01-000 |
— | ||
|
13
|
13
84572-74G00-000 MALE,GLASS FASTENER NO.1 |
84572-74G00-000 |
from US $3.20 |
||
|
14
|
14
84513-76F00-000 MALE,GLASS FASTENER NO.2 |
84513-76F00-000 |
from US $1.60 |
||
|
15
|
15
84515-65D00-000 FEMALE,GLASS FASTENER NO.2 |
84515-65D00-000 |
from US $3.60 |
||
|
16
|
16
84681-74G00-000 WEATHERSTRIP,BACK DR OPNG |
84681-74G00-000 |
US $67.34 |
||
|
17
|
17
83980-74G00-000
AIR SPOILER,BACK DR
PAINT TO MATCH,TYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
83980-74G00-000 |
— | ||
|
18
|
18
83980-82G00-ZS6
SPOILER,BACK DOOR
TYPE 6 |
83980-82G00-ZS6 |
— | ||
|
18
|
18
83980-82G00-ZJ3 SPOILER,BACK DOORTYPE 6,TYPE 7,TYPE 8 |
83980-82G00-ZJ3 |
US $422.40 |
||
|
18
|
18
83980-82G00-Z7T SPOILER,BACK DOORTYPE 6,TYPE 7,TYPE 8 |
83980-82G00-Z7T |
US $422.40 |
||
|
18
|
18
83980-82G00-Z9T
SPOILER,BACK DOOR
TYPE 6,TYPE 7,TYPE 8 |
83980-82G00-Z9T |
— | ||
|
18
|
18
83980-82G00-ZY4 SPOILER,BACK DOORTYPE 7,TYPE 8 |
83980-82G00-ZY4 |
US $422.40 |
||
|
19
|
19
09410-00076-000 CLIP |
09410-00076-000 |
from US $1.33 |
||
|
20
|
20
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
20
|
20
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
21
|
21
83981-74G00-000 CAP,AIR SPOILERTYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
83981-74G00-000 |
US $5.34 |
||
|
22
|
22
82841-82G00-P4Z
ハンドル,バックドア,インナ(グレー)
TYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
82841-82G00-P4Z |
— | ||
| replacement | |||||
|
22
|
22
82841-82G02-000 HANDLE,BACK DOOR INNERTYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
82841-82G02-000 |
from US $6.08 |
||
