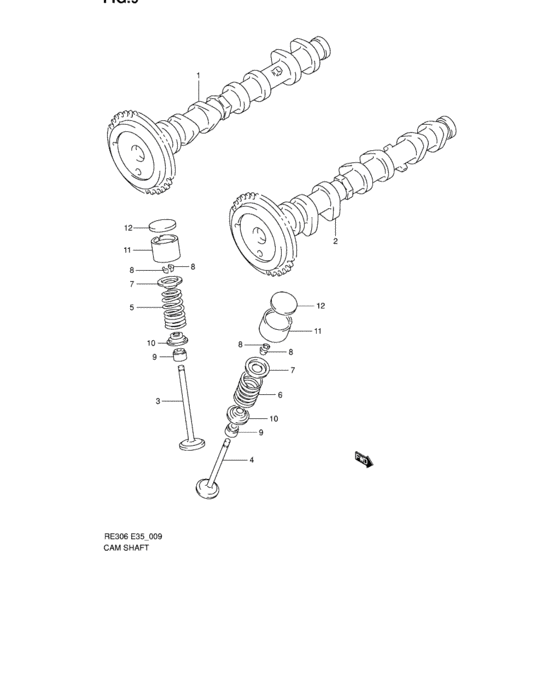

Cam shaft/valve (CAM SHAFT/VALVE) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12710-78G50-000
Cam shaft, intake
TYPE 1,TYPE 2,TYPE 3 |
12710-78G50-000 |
— | ||
| replacement | |||||
|
1
|
1
12710-78G51-000
CAMSHAFT,INTK
TYPE 1,TYPE 2,TYPE 3 |
12710-78G51-000 |
— | ||
|
1
|
1
12710-83G60-000
CAMSHAFT,INTAKE
TYPE 4 |
12710-83G60-000 |
— | ||
|
1
|
1
12710-65H50-000
Camshaft,intake
TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
12710-65H50-000 |
— | ||
| replacement | |||||
|
1
|
1
12710-65H51-000 CAMSHAFT,INTKTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
12710-65H51-000 |
US $371.68 |
||
|
2
|
2
12720-78G50-000
Cam shaft, exhaust
TYPE 1,TYPE 2,TYPE 3 |
12720-78G50-000 |
— | ||
| replacement | |||||
|
2
|
2
12720-78G51-000 CAMSHAFT,EXHTYPE 1,TYPE 2,TYPE 3 |
12720-78G51-000 |
US $314.64 |
||
|
2
|
2
12720-83G60-000
Camshaft,exhaust
TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
12720-83G60-000 |
— | ||
| replacement | |||||
|
2
|
2
12720-83G61-000 CAMSHAFT,EXHTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
12720-83G61-000 |
US $371.68 |
||
|
3
|
3
12911-73G01-000 Valve,intakeTYPE 1,TYPE 2,TYPE 3 |
12911-73G01-000 |
US $56 |
||
|
3
|
3
12911-83G01-000 Valve,intakeTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
12911-83G01-000 |
from US $26.33 |
||
|
4
|
4
12915-73G20-000 Valve,exhaustValve, exhaust |
12915-73G20-000 |
from US $27.41 |
||
|
5
|
5
12921-87J10-000
SPRING,VALVE
TYPE 1 |
12921-87J10-000 |
— | ||
| replacement | |||||
|
5
|
5
12921-87J11-000 SPRING,VALVETYPE 1 |
12921-87J11-000 |
US $6.56 |
||
|
5
|
5
12921-78G20-000
SPRING,VALVE
TYPE 2,TYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
12921-78G20-000 |
— | ||
| replacement | |||||
|
5
|
5
12921-78G30-000 SPRING,VALVETYPE 2,TYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
12921-78G30-000 |
US $10.40 |
||
|
6
|
6
12921-78G00-000 SPRING,VALVETYPE 1 |
12921-78G00-000 |
US $20 |
||
|
6
|
6
12921-78G20-000
SPRING,VALVE
TYPE 2,TYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
12921-78G20-000 |
— | ||
| replacement | |||||
|
6
|
6
12921-78G30-000 SPRING,VALVETYPE 2,TYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
12921-78G30-000 |
US $10.40 |
||
|
7
|
7
12931-78G00-000 RETAINER,VALVE SPRINGRetainer, valve spring |
12931-78G00-000 |
from US $2.88 |
||
|
8
|
8
12932-24400-000 COTTER,VALVE |
12932-24400-000 |
from US $1.28 |
||
|
9
|
9
09289-05012-000 SEAL,OIL(5.5X11.5X9.3) |
09289-05012-000 |
from US $3.87 |
||
|
10
|
10
12933-51E00-000 SEAT,VALVE SPRINGSeat, valve spring |
12933-51E00-000 |
from US $1.60 |
||
|
11
|
11
12891-65H00-000 Tappet |
12891-65H00-000 |
US $27.42 |
||
|
12
|
12
12892-65H00-218 SHIM,TAPPET T:2.18 |
12892-65H00-218 |
US $16.80 |
||
|
12
|
12
12892-65H00-220 SHIM,TAPPET T:2.20 |
12892-65H00-220 |
US $16.80 |
||
|
12
|
12
12892-65H00-222 SHIM,TAPPET T:2.22 |
12892-65H00-222 |
US $16.80 |
||
|
12
|
12
12892-65H00-224 SHIM,TAPPET T:2.24 |
12892-65H00-224 |
US $16.80 |
||
|
12
|
12
12892-65H00-226 SHIM,TAPPET T:2.26 |
12892-65H00-226 |
US $16.80 |
||
|
12
|
12
12892-65H00-228 SHIM,TAPPET T:2.28 |
12892-65H00-228 |
from US $9.07 |
||
|
12
|
12
12892-65H00-230 SHIM,TAPPET T:2.30 |
12892-65H00-230 |
from US $9.07 |
||
|
12
|
12
12892-65H00-232 SHIM,TAPPET T:2.32 |
12892-65H00-232 |
US $8.10 |
||
|
12
|
12
12892-65H00-234 SHIM,TAPPET T:2.34 |
12892-65H00-234 |
from US $8.10 |
||
|
12
|
12
12892-65H00-236 SHIM,TAPPET T:2.36 |
12892-65H00-236 |
from US $8.10 |
||
|
12
|
12
12892-65H00-238 SHIM,TAPPET T:2.38 |
12892-65H00-238 |
from US $9.07 |
||
|
12
|
12
12892-65H00-240 SHIM,TAPPET T:2.40 |
12892-65H00-240 |
from US $8.10 |
||
|
12
|
12
12892-65H00-242 SHIM,TAPPET T:2.42 |
12892-65H00-242 |
US $8.10 |
||
|
12
|
12
12892-65H00-244 SHIM,TAPPET T:2.44 |
12892-65H00-244 |
from US $9.07 |
||
|
12
|
12
12892-65H00-246 SHIM,TAPPET T:2.46 |
12892-65H00-246 |
US $8.10 |
||
|
12
|
12
12892-65H00-248 SHIM,TAPPET T:2.48 |
12892-65H00-248 |
from US $9.07 |
||
|
12
|
12
12892-65H00-250 SHIM,TAPPET T:2.50 |
12892-65H00-250 |
from US $9.07 |
||
|
12
|
12
12892-65H00-252 SHIM,TAPPET T:2.52 |
12892-65H00-252 |
US $14.88 |
||
|
12
|
12
12892-65H00-254 SHIM,TAPPET T:2.54 |
12892-65H00-254 |
from US $8.10 |
||
|
12
|
12
12892-65H00-256 SHIM,TAPPET T:2.56 |
12892-65H00-256 |
US $14.88 |
||
|
12
|
12
12892-65H00-258 SHIM,TAPPET T:2.58 |
12892-65H00-258 |
from US $9.07 |
||
|
12
|
12
12892-65H00-260 SHIM,TAPPET T:2.60 |
12892-65H00-260 |
US $8.10 |
||
|
12
|
12
12892-65H00-262 SHIM,TAPPET T:2.62 |
12892-65H00-262 |
US $8.10 |
||
|
12
|
12
12892-65H00-264 SHIM,TAPPET T:2.64 |
12892-65H00-264 |
US $8.10 |
||
|
12
|
12
12892-65H00-266 SHIM,TAPPET T:2.66 |
12892-65H00-266 |
US $14.88 |
||
|
12
|
12
12892-65H00-268 SHIM,TAPPET T:2.68 |
12892-65H00-268 |
US $8.10 |
||
|
12
|
12
12892-65H00-270 SHIM,TAPPET T:2.70 |
12892-65H00-270 |
US $8.10 |
||
|
12
|
12
12892-65H00-272 SHIM,TAPPET T:2.72 |
12892-65H00-272 |
from US $8.10 |
||
|
12
|
12
12892-65H00-274 SHIM,TAPPET T:2.74 |
12892-65H00-274 |
US $8.10 |
||
|
12
|
12
12892-65H00-276 SHIM,TAPPET T:2.76 |
12892-65H00-276 |
US $8.10 |
||
|
12
|
12
12892-65H00-278 SHIM,TAPPET T:2.78 |
12892-65H00-278 |
US $8.10 |
||
|
12
|
12
12892-65H00-280 SHIM,TAPPET T:2.80 |
12892-65H00-280 |
US $16.80 |
||
|
12
|
12
12892-65H00-282 SHIM,TAPPET T:2.82 |
12892-65H00-282 |
US $8.10 |
||
|
12
|
12
12892-65H00-284 SHIM,TAPPET T:2.84 |
12892-65H00-284 |
US $8.10 |
||
|
12
|
12
12892-65H00-286 SHIM,TAPPET T:2.86 |
12892-65H00-286 |
US $8.10 |
||
|
12
|
12
12892-65H00-288 SHIM,TAPPET T:2.88 |
12892-65H00-288 |
US $8.10 |
||
|
12
|
12
12892-65H00-290 SHIM,TAPPET T:2.90 |
12892-65H00-290 |
US $8.10 |
||
|
12
|
12
12892-65H00-292 SHIM,TAPPET T:2.92 |
12892-65H00-292 |
US $8.10 |
||
|
12
|
12
12892-65H00-294 SHIM,TAPPET T:2.94 |
12892-65H00-294 |
US $8.10 |
||
|
12
|
12
12892-65H00-296 SHIM,TAPPET T:2.96 |
12892-65H00-296 |
US $8.10 |
||
|
12
|
12
12892-65H00-298 SHIM,TAPPET T:2.98 |
12892-65H00-298 |
US $16.80 |
||
|
12
|
12
12892-65H00-300 SHIM,TAPPET T:3.00 |
12892-65H00-300 |
US $8.10 |
||
