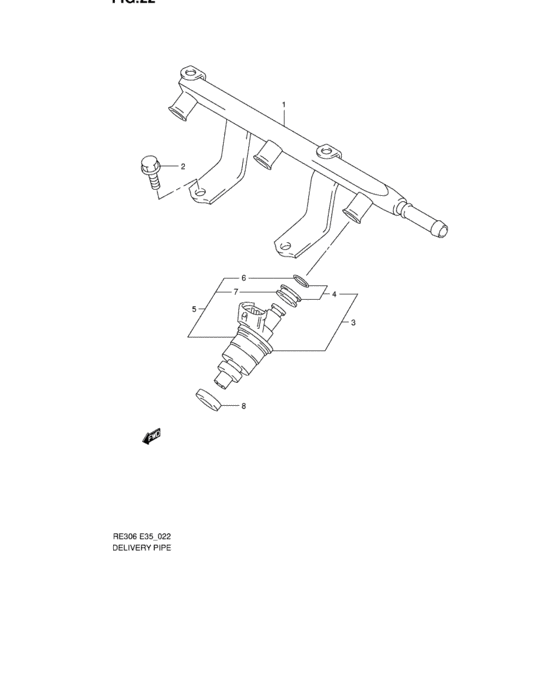

Delivery pipe (DELIVERY PIPE) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15730-78G10-000 PIPE,DELIVERYTYPE 1,TYPE 2,TYPE 3,TYPE 4 |
15730-78G10-000 |
US $75.81 |
||
|
1
|
1
15730-83G10-000 PIPE,DELIVERYTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
15730-83G10-000 |
US $79.49 |
||
|
2
|
2
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
2
|
2
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
3
|
3
15710-78G50-000 INJECTOR ASSY,FUELTYPE 1,TYPE 2,TYPE 3,TYPE 4 |
15710-78G50-000 |
US $349.60 |
||
|
4
|
4
15716-865T0-000 GROMMET SET,FUEL INJECTORTYPE 1,TYPE 2,TYPE 3,TYPE 4 |
15716-865T0-000 |
from US $10.42 |
||
|
5
|
5
15710-78G60-000 INJECTOR ASSY,FUELTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
15710-78G60-000 |
US $356.96 |
||
|
6
|
6
15710-09300-000 O-RINGTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
15710-09300-000 |
from US $1.60 |
||
|
7
|
7
15720-09300-000 GROMMETTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
15720-09300-000 |
from US $1.52 |
||
|
8
|
8
09320-08062-000 CUSHION |
09320-08062-000 |
from US $4.64 |
||
