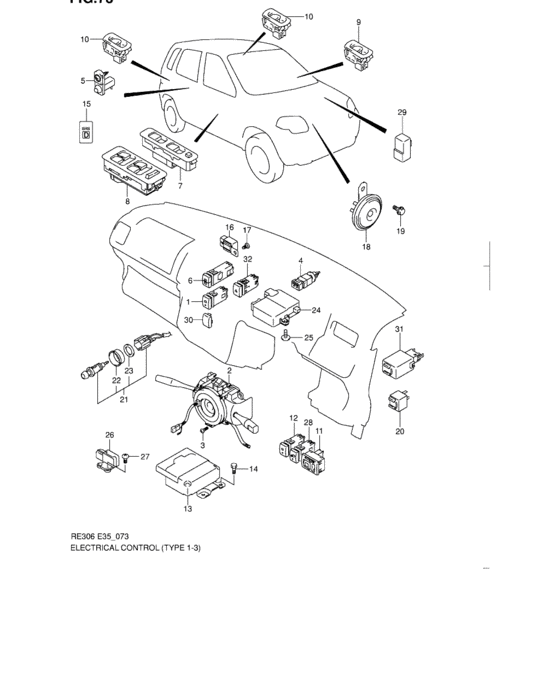

Electrical control (TYPE 1,2,3) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37370-75F10-000 SWITCH ASSY,RR WIPER&WASHER |
37370-75F10-000 |
US $118.86 |
||
|
2
|
2
37400-76G31-000
Switch assy, combination
TYPE 1 |
37400-76G31-000 |
— | ||
| replacement | |||||
|
2
|
2
37400-76G32-000 SWITCH ASSY,COMBTYPE 1 |
37400-76G32-000 |
US $432.96 |
||
|
2
|
2
37400-76GA2-000
Switch assy, combination
TYPE 2,TYPE 3 |
37400-76GA2-000 |
— | ||
| replacement | |||||
|
2
|
2
37400-76GA3-000 SWITCH ASSY,COMBTYPE 2,TYPE 3 |
37400-76GA3-000 |
US $432.96 |
||
|
3
|
3
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
4
|
4
37740-80G10-000 SWITCH ASSY,STOP LAMP |
37740-80G10-000 |
from US $12.92 |
||
|
5
|
5
37670-76G00-000 SWITCH ASSY,DOOR3DR |
37670-76G00-000 |
from US $10.06 |
||
|
6
|
6
37860-75F10-000 SWITCH ASSY,RR DEFOGGER |
37860-75F10-000 |
from US $23.42 |
||
|
7
|
7
37990-81A20-T01 SWITCH ASSY,P/W MAIN3DR |
37990-81A20-T01 |
US $231.64 |
||
|
8
|
8
37990-75F51-T01 SWITCH ASSY,P/W MAIN5DR:TYPE 1,TYPE 2 |
37990-75F51-T01 |
US $272.32 |
||
|
8
|
8
37990-75F51-P4Z SWITCH ASSY,P/W MAIN5DR:TYPE 3 |
37990-75F51-P4Z |
US $268.64 |
||
|
9
|
9
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) TYPE 1,TYPE 2 |
37995-75F00-T01 |
from US $71.78 |
||
|
9
|
9
37995-75F00-P4Z SWITCH ASSY, P/W SUB (GRAY)TYPE 3 |
37995-75F00-P4Z |
from US $51.44 |
||
|
10
|
10
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) 5DR:TYPE 1,TYPE 2 |
37995-75F00-T01 |
from US $71.78 |
||
|
10
|
10
37995-75F00-P4Z SWITCH ASSY, P/W SUB (GRAY)5DR:TYPE 3 |
37995-75F00-P4Z |
from US $51.44 |
||
|
11
|
11
37950-75F10-000 SWITCH ASSY,MIRRORTYPE 1,TYPE 2 |
37950-75F10-000 |
US $41.95 |
||
|
11
|
11
37950-75F00-000 SWITCH ASSY,MIRRORTYPE 3 |
37950-75F00-000 |
from US $31.23 |
||
|
12
|
12
37955-64G01-000 SWITCH ASSY,MIRROR HEATER |
37955-64G01-000 |
US $50.05 |
||
|
13
|
13
38910-74G00-000 CONTROLLER ASSY,AIR BAG |
38910-74G00-000 |
US $763.84 |
||
|
14
|
14
09129-06006-000 SCREW(6X18) |
09129-06006-000 |
US $14 |
||
|
15
|
15
38918-76G10-000 LABEL,AIR BAG(MARK D) |
38918-76G10-000 |
US $2.87 |
||
|
16
|
16
95572-63C00-000 RELAY ASSYTYPE 1 |
95572-63C00-000 |
from US $38.52 |
||
|
17
|
17
03142-05123-000
Screw
TYPE 1 |
03142-05123-000 |
— | ||
| replacement | |||||
|
17
|
17
03141-0512A-000 SCREWScrew, belt cooling duct TYPE 1 |
03141-0512A-000 |
from US $0.76 |
||
|
18
|
18
38500-76G00-000 HORN ASSY |
38500-76G00-000 |
US $61.46 |
||
|
19
|
19
09118-06106-000 BOLT(6X16) |
09118-06106-000 |
from US $1.12 |
||
|
20
|
20
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
from US $44.30 |
||
|
21
|
21
39400-84811-000 LIGHTER ASSY,CIGARETTELighter assy, cigarette |
39400-84811-000 |
from US $14.40 |
||
|
22
|
22
39471-84000-000 RIM,CIGAR LIGHTER |
39471-84000-000 |
from US $2.72 |
||
|
23
|
23
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
24
|
24
38720-74G20-000 CONTROLLER ASSY,PRWER STRG3DR |
38720-74G20-000 |
US $658.24 |
||
|
24
|
24
38720-83H00-000 CONTROLLER ASSY,POWER STRG5DR,HN21S-637689~ |
38720-83H00-000 |
US $644.16 |
||
|
25
|
25
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
25
|
25
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.96 |
||
|
25
|
25
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
26
|
26
33945-82C10-000 SENSOR ASSY,G |
33945-82C10-000 |
from US $174.35 |
||
|
27
|
27
09132-06010-000 SCREW(6X16) |
09132-06010-000 |
from US $1.04 |
||
|
28
|
28
37270-76F10-000 SWITCH ASSY,FR FOG LAMP |
37270-76F10-000 |
from US $27.65 |
||
|
29
|
29
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
from US $28.82 |
||
|
30
|
30
37285-75F00-000 CAP,OPTION SW HOLETYPE 1 |
37285-75F00-000 |
from US $2.28 |
||
|
31
|
31
38700-76G01-000 CONTROLLER ASSY,PWR DR LOCKTYPE 1,TYPE 2 |
38700-76G01-000 |
from US $54.11 |
||
|
31
|
31
38700-84G10-000
CONTROLLER,PWR DR LOCK
TYPE 3 |
38700-84G10-000 |
— | ||
|
32
|
32
37430-76G00-000 SWITCH ASSY,HAZARD WARNINGTYPE 2,TYPE 3 |
37430-76G00-000 |
US $40.85 |
||
