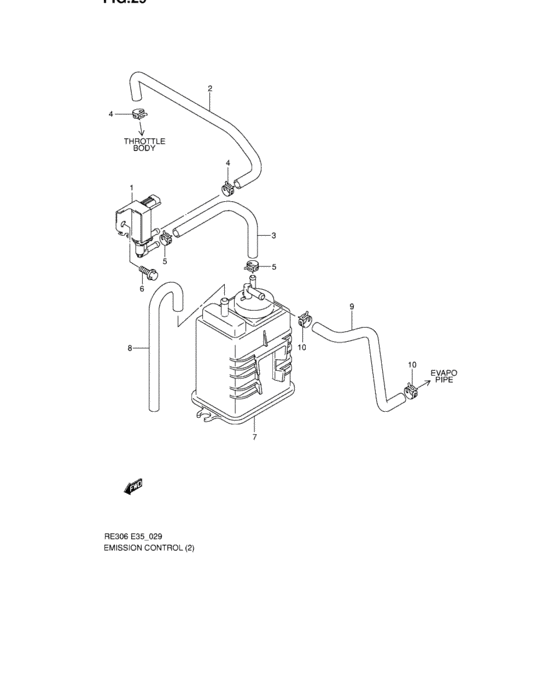

Emission control (TYPE 4,5,6,7,8) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-81AB2-000 VALVE,CANISTER PURGE |
18117-81AB2-000 |
US $130.40 |
||
|
2
|
2
18564-83G02-000
ホース,バルブツースロットルボディ
|
18564-83G02-000 |
— | ||
| replacements | |||||
|
2
|
2
09401-11419-000 CLIP |
09401-11419-000 |
from US $1.42 |
||
|
2
|
2
18564-83G10-000 HOSE,VSV TO TB |
18564-83G10-000 |
US $10.05 |
||
|
3
|
3
18565-83G00-000
ホース,キャニスタツーバルブ
|
18565-83G00-000 |
— | ||
| replacements | |||||
|
3
|
3
09401-11419-000 CLIP |
09401-11419-000 |
from US $1.42 |
||
|
3
|
3
18565-73H10-000 HOSE,CSTR TO VSV |
18565-73H10-000 |
US $7.07 |
||
|
3
|
3
18565-73H00-000
ホース,キャニスタツーバルブ
HN22S-776089~ |
18565-73H00-000 |
— | ||
| replacements | |||||
|
3
|
3
09401-11419-000 CLIPHN22S-776089~ |
09401-11419-000 |
from US $1.42 |
||
|
3
|
3
18565-73H10-000 HOSE,CSTR TO VSVHN22S-776089~ |
18565-73H10-000 |
US $7.07 |
||
|
4
|
4
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
5
|
5
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
6
|
6
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
18560-83G00-000 CANISTER |
18560-83G00-000 |
US $112.61 |
||
|
8
|
8
18561-83G00-000
ホース,キャニスタサクション
|
18561-83G00-000 |
— | ||
| replacement | |||||
|
8
|
8
18561-83G01-000 HOSE,CANISTER SUCTION |
18561-83G01-000 |
US $7.95 |
||
|
9
|
9
18567-83G00-000
ホース,キャニスタ,インレット
->18567-73H11,USED WITH 09401-11419(2PCS) |
18567-83G00-000 |
— | ||
| replacements | |||||
|
9
|
9
09401-11419-000 CLIP->18567-73H11,USED WITH 09401-11419(2PCS) |
09401-11419-000 |
from US $1.42 |
||
|
9
|
9
18567-73H11-000 HOSE,CANISTER INLET->18567-73H11,USED WITH 09401-11419(2PCS) |
18567-73H11-000 |
US $16.12 |
||
|
9
|
9
18567-73H11-000 HOSE,CANISTER INLETHN22S-776089~ |
18567-73H11-000 |
US $16.12 |
||
|
10
|
10
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
10
|
10
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
10
|
10
09401-11419-000 CLIPHN22S-776089~ |
09401-11419-000 |
from US $1.42 |
||
