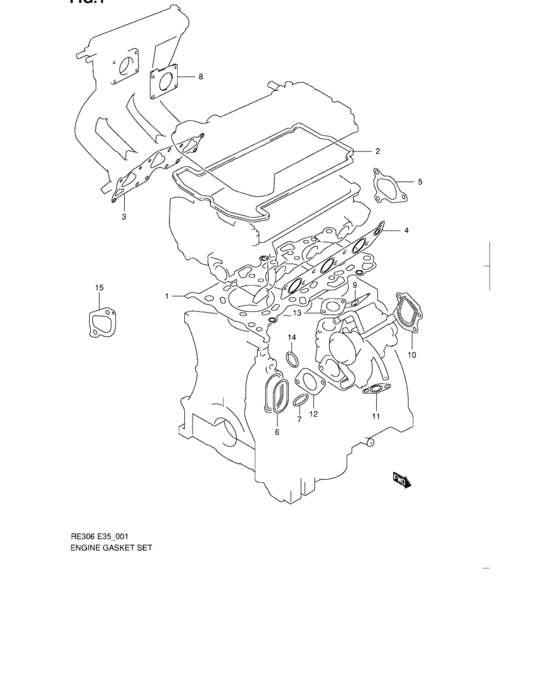

Engine gasket set (ENGINE GASKET SET) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
11400-67883-000
ガスケットセット,エンジン
TYPE 6,TYPE 7,TYPE 8 |
11400-67883-000 |
— | ||
| replacement | |||||
|
|
11401-67881-000 GASKET SET,ENGINETYPE 6,TYPE 7,TYPE 8 |
11401-67881-000 |
from US $149.81 |
||
|
|
11401-83852-000
ガスケットセット,エンジン
TYPE 4,TYPE 5 |
11401-83852-000 |
— | ||
| replacement | |||||
|
|
11401-83857-000 GASKET SET,ENGINETYPE 4,TYPE 5 |
11401-83857-000 |
from US $118.96 |
||
|
|
11402-78838-000
Gasket set,engine
TYPE 1,TYPE 2,TYPE 3 |
11402-78838-000 |
— | ||
| replacement | |||||
|
|
11403-78842-000
GASKET SET,ENGINE
TYPE 1,TYPE 2,TYPE 3 |
11403-78842-000 |
— | ||
|
1
|
1
11141-73G01-000
Gasket,cylinder head
|
11141-73G01-000 |
— | ||
| replacement | |||||
|
1
|
1
11141-73G03-000 GASKET,CYL HEAD |
11141-73G03-000 |
from US $77.99 |
||
|
2
|
2
11189-78G01-000 Gasket, Cylinder Head CoverTYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
11189-78G01-000 |
from US $21.26 |
||
|
2
|
2
11189-67H00-000
ガスケット,シリンダヘッドカバー
TYPE 6,TYPE 7,TYPE 8 |
11189-67H00-000 |
— | ||
| replacement | |||||
|
2
|
2
11189-67H12-000 GASKET,CYL HEAD COVERTYPE 6,TYPE 7,TYPE 8 |
11189-67H12-000 |
from US $16.85 |
||
|
3
|
3
13119-73G40-000 GASKET,INTK MANFGasket, intake manifold |
13119-73G40-000 |
from US $8.93 |
||
|
4
|
4
14141-73G02-000 GASKET,EXH MANFGasket, exhaust manifold TYPE 1,TYPE 2,TYPE 3 |
14141-73G02-000 |
from US $18.68 |
||
|
4
|
4
14141-83G00-000
ガスケット,エキゾーストマニホールド
TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
14141-83G00-000 |
— | ||
| replacement | |||||
|
4
|
4
14141-83G01-000 GASKET,EXH MANFTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
14141-83G01-000 |
from US $15.68 |
||
|
5
|
5
17699-73G01-000 GASKET,THERMOSTAT CASEGasket, thermostat case |
17699-73G01-000 |
from US $3.74 |
||
|
6
|
6
17611-73G01-000
O ring,water pump
|
17611-73G01-000 |
— | ||
| replacement | |||||
|
6
|
6
17611-73G03-000 O-RING,WATER PUMP |
17611-73G03-000 |
from US $4.95 |
||
|
7
|
7
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe |
17849-53E00-000 |
from US $1.52 |
||
|
8
|
8
13421-77G00-000 GASKET,THROTTLE BODYGasket, throttle body |
13421-77G00-000 |
from US $2.24 |
||
|
9
|
9
14181-54A51-000 GASKET,EXH MANFGasket, exhaust manifold TYPE 1,TYPE 2,TYPE 3 |
14181-54A51-000 |
from US $18 |
||
|
9
|
9
14181-78F50-000 GASKET,EXH MANFTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
14181-78F50-000 |
from US $16.18 |
||
|
10
|
10
14182-85551-000 GASKET,EXH PIPEGasket, t/c outlet pipe |
14182-85551-000 |
US $11.10 |
||
|
11
|
11
13945-70G50-000 GASKET,OIL DRAINGasket, oil drain |
13945-70G50-000 |
from US $4.68 |
||
|
12
|
12
13955-56F00-000 GASKET,INTK AIR PIPEGasket, intk air pipe |
13955-56F00-000 |
US $2.28 |
||
|
13
|
13
13965-56F00-000 GASKET,OUTLET AIR PIPEGasket, outlet air pipe |
13965-56F00-000 |
US $2.40 |
||
|
14
|
14
17849-83G00-000 O-RING,HEATER OUTLET PIPETYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
17849-83G00-000 |
from US $1.85 |
||
|
15
|
15
12832-58J00-000 GASKET,TENSIONER ADJUSTERHN22S-772810~ |
12832-58J00-000 |
from US $3.26 |
||
