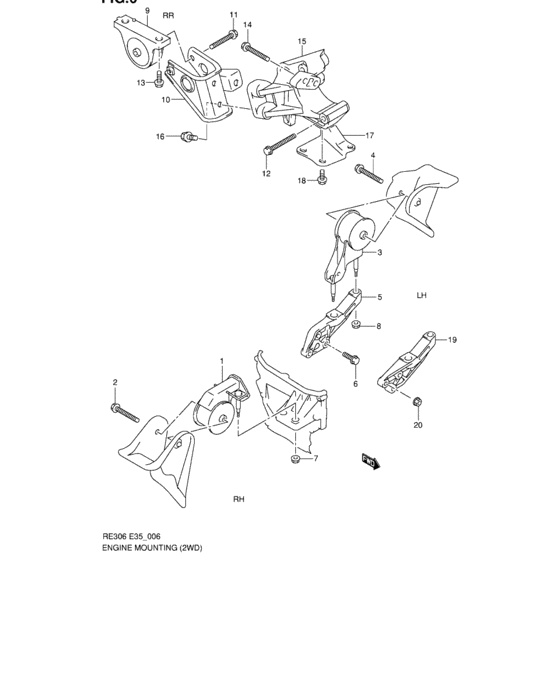

Engine mounting (2WD) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-83H00-000 MOUNTING,ENG,R |
11610-83H00-000 |
from US $140.67 |
||
|
2
|
2
09113-10004-000 BOLT(10X85) |
09113-10004-000 |
US $21.70 |
||
|
3
|
3
11620-76G02-000
Mounting,eng lh
MT |
11620-76G02-000 |
— | ||
| replacement | |||||
|
3
|
3
11620-76G03-000 MOUNTING,ENG,LMT |
11620-76G03-000 |
US $208 |
||
|
4
|
4
09113-10004-000 BOLT(10X85) |
09113-10004-000 |
US $21.70 |
||
|
5
|
5
11651-83G00-000 BRACKET,ENG MTG,LTYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
11651-83G00-000 |
from US $37.67 |
||
|
6
|
6
01550-10353-000
Bolt
|
01550-10353-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1035A-000 BoltBolt, fr fork upper |
01550-1035A-000 |
from US $1.62 |
||
|
7
|
7
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
11710-76G60-000 MOUNTING,ENG RRTYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
11710-76G60-000 |
US $76.91 |
||
|
9
|
9
11710-76G30-000 MOUNTING,ENG RRTYPE 6,TYPE 7,TYPE 8 |
11710-76G30-000 |
US $148 |
||
|
10
|
10
11740-83G00-000 BRACKET,ENG MTG RR |
11740-83G00-000 |
US $34.04 |
||
|
11
|
11
09113-10003-000 BOLT(10X75) |
09113-10003-000 |
US $19.50 |
||
|
12
|
12
01550-10853-000
Bolt
|
01550-10853-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1085A-000 Bolt |
01550-1085A-000 |
from US $1.35 |
||
|
13
|
13
01551-10353-000
ボルト
|
01551-10353-000 |
— | ||
| replacement | |||||
|
13
|
13
01551-1035A-000 Bolt |
01551-1035A-000 |
US $19.50 |
||
|
14
|
14
01550-10353-000
Bolt
|
01550-10353-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-1035A-000 BoltBolt, fr fork upper |
01550-1035A-000 |
from US $1.62 |
||
|
15
|
15
11749-78F10-000 BRACKET,ENG MTG RR |
11749-78F10-000 |
US $107.46 |
||
|
16
|
16
09103-10342-000 BOLT(10X32) |
09103-10342-000 |
from US $6.14 |
||
|
17
|
17
11751-76G20-000 STIFFENER,ENG MTG BRKT RRTYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
11751-76G20-000 |
from US $6.05 |
||
|
17
|
17
11751-78F00-000 STIFFENER,ENG MTG BRKT RRTYPE 6,TYPE 7,TYPE 8 |
11751-78F00-000 |
US $11.11 |
||
|
18
|
18
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $1.28 |
||
|
18
|
18
01550-1025A-000 BoltBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
19
|
19
11651-76G00-000 BRACKET,ENG MTG,LTYPE 6,TYPE 7,TYPE 8 |
11651-76G00-000 |
US $71.76 |
||
|
20
|
20
08316-10103-000
Nut
TYPE 6,TYPE 7,TYPE 8 |
08316-10103-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1010B-000 NUTTYPE 6,TYPE 7,TYPE 8 |
08316-1010B-000 |
from US $0.80 |
||
