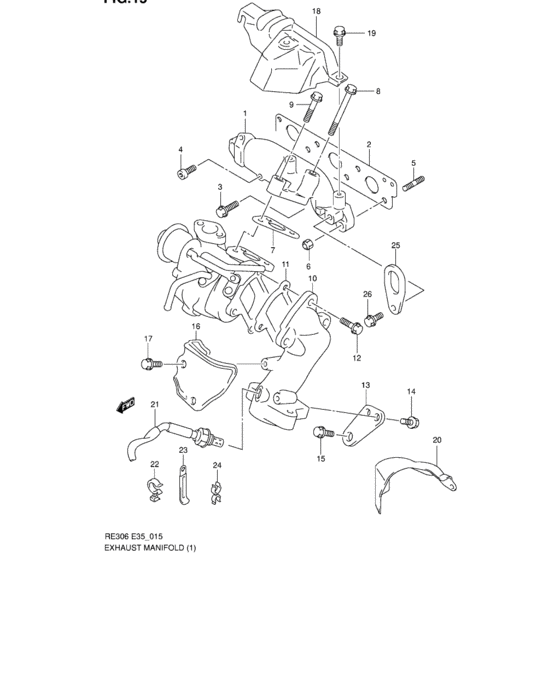

Exhaust manifold (TYPE 1,2,3) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-81AA2-000 MANIFOLD,EXH |
14111-81AA2-000 |
US $417.60 |
||
|
2
|
2
14141-73G02-000 GASKET,EXH MANFGasket, exhaust manifold |
14141-73G02-000 |
from US $18.68 |
||
|
3
|
3
14118-70G50-000 BOLT,EXH MANF 8X25 |
14118-70G50-000 |
US $7.36 |
||
|
4
|
4
14118-73G01-000 BOLT,EXH MANF |
14118-73G01-000 |
from US $15.45 |
||
|
5
|
5
14119-81402-000 STUD BOLT |
14119-81402-000 |
US $2.72 |
||
|
6
|
6
09159-08056-000 NUT |
09159-08056-000 |
US $1.28 |
||
|
7
|
7
14181-54A51-000 GASKET,EXH MANFGasket, exhaust manifold |
14181-54A51-000 |
from US $18 |
||
|
8
|
8
14119-54A50-000 BOLT,EXH T/C L:58 |
14119-54A50-000 |
from US $12.47 |
||
|
9
|
9
09103-08118-000 BOLT(8X35) |
09103-08118-000 |
from US $10.55 |
||
|
10
|
10
14115-78G60-000
PIPE,TURBO OUTLET
|
14115-78G60-000 |
— | ||
|
11
|
11
14182-85551-000 GASKET,EXH PIPEGasket, t/c outlet pipe |
14182-85551-000 |
US $11.10 |
||
|
12
|
12
14118-73G01-000 BOLT,EXH MANF |
14118-73G01-000 |
from US $15.45 |
||
|
13
|
13
14171-78G51-000 BRACKET,TURBO OUTLET |
14171-78G51-000 |
US $6.04 |
||
|
14
|
14
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
14
|
14
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
15
|
15
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
15
|
15
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
16
|
16
14133-78G50-000 COVER,TURBO OUTLET PIPE |
14133-78G50-000 |
US $5.48 |
||
|
17
|
17
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $0.95 |
||
|
18
|
18
14131-78G52-000 COVER,EXH MANF |
14131-78G52-000 |
US $49.60 |
||
|
19
|
19
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $0.95 |
||
|
20
|
20
14136-78G50-000 COVER,OUTLET PIPE LOWER |
14136-78G50-000 |
US $6.37 |
||
|
21
|
21
18213-76G50-000
SENSOR,OXYGEN
|
18213-76G50-000 |
— | ||
|
21
|
21
18213-76G51-000
SENSOR,OXYGEN
HN21S-110026~,HN21S-614916~ |
18213-76G51-000 |
— | ||
|
22
|
22
18214-78G00-000 CLAMP~HN21S-110025,~HN21S-614915 |
18214-78G00-000 |
US $1.95 |
||
|
23
|
23
09404-06434-000
CLAMP(L:80 T:1.0)
~HN21S-110025,~HN21S-614915 |
09404-06434-000 |
— | ||
| replacement | |||||
|
23
|
23
09404-06036-000 Clamp(L:80)~HN21S-110025,~HN21S-614915 |
09404-06036-000 |
from US $1.82 |
||
|
24
|
24
09408-00080-000 CLAMP |
09408-00080-000 |
US $21.30 |
||
|
24
|
24
09408-00110-000 CLAMPHN21S-110026~,HN21S-614916~ |
09408-00110-000 |
US $26.50 |
||
|
25
|
25
11851-62B00-000 HOOK |
11851-62B00-000 |
from US $1.87 |
||
|
26
|
26
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
26
|
26
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
