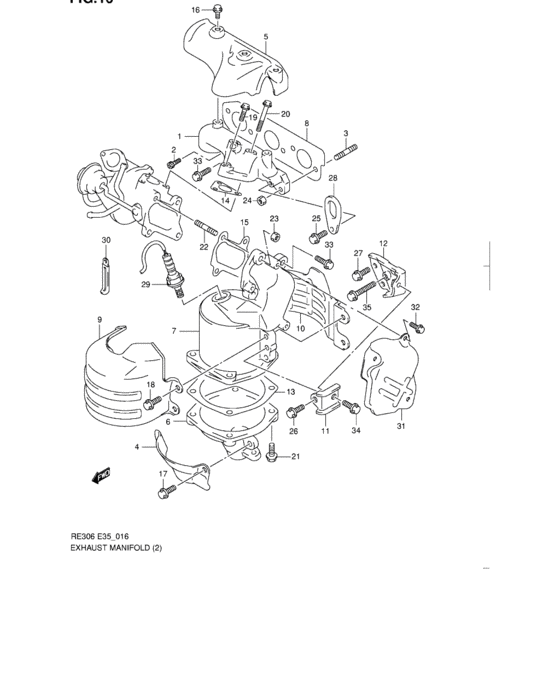

Exhaust manifold (TYPE 4,5,6,7,8) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-78G61-000
マニホールド,エキゾースト
|
14111-78G61-000 |
— | ||
| replacement | |||||
|
1
|
1
14111-78G62-000 MANIFOLD,EXH |
14111-78G62-000 |
US $179.58 |
||
|
2
|
2
14118-73G01-000 BOLT,EXH MANFTYPE 4,TYPE 5,TYPE 6 |
14118-73G01-000 |
from US $15.45 |
||
|
3
|
3
09108-08256-000 BOLT,STUD(8X36)TYPE 4,TYPE 5,TYPE 6 |
09108-08256-000 |
US $23.90 |
||
|
3
|
3
09108-08268-000 BOLT,STUDTYPE 7,TYPE 8 |
09108-08268-000 |
from US $3.96 |
||
|
4
|
4
14120-83G50-000 COVER,CTLST OUTLET PIPE |
14120-83G50-000 |
US $13.47 |
||
|
5
|
5
14131-83G51-000 COVER,EXH MANF |
14131-83G51-000 |
US $14.87 |
||
|
6
|
6
14137-83G50-000 PIPE,CTLST OUTLET |
14137-83G50-000 |
US $128.06 |
||
|
7
|
7
14100-83860-000 CASE SET,CATALYST |
14100-83860-000 |
US $616 |
||
|
8
|
8
14141-83G00-000
ガスケット,エキゾーストマニホールド
|
14141-83G00-000 |
— | ||
| replacement | |||||
|
8
|
8
14141-83G01-000 GASKET,EXH MANF |
14141-83G01-000 |
from US $15.68 |
||
|
9
|
9
14170-83G50-000 COVER,CTLST CASE |
14170-83G50-000 |
US $17.63 |
||
|
10
|
10
14171-83G50-000
カバー,キャタリストケース,リヤ
TYPE 4,TYPE 5 |
14171-83G50-000 |
— | ||
| replacement | |||||
|
10
|
10
14171-83G51-000 COVER,CTLST CASE,RRTYPE 4,TYPE 5 |
14171-83G51-000 |
US $8.61 |
||
|
10
|
10
14171-83G51-000 COVER,CTLST CASE,RRTYPE 6,TYPE 7,TYPE 8 |
14171-83G51-000 |
US $8.61 |
||
|
11
|
11
14173-83G51-000
ブラケット,キャタリストケース,NO.2
TYPE 4,TYPE 5,->14173-83G52,USED WITH 14180-82G61,AND 01550-10163 |
14173-83G51-000 |
— | ||
| replacement | |||||
|
11
|
11
14173-83G52-000 BRACKET,CTLST CASE NO.2TYPE 4,TYPE 5,->14173-83G52,USED WITH 14180-82G61,AND 01550-10163 |
14173-83G52-000 |
US $3.72 |
||
|
11
|
11
14173-83G52-000 BRACKET,CTLST CASE NO.2TYPE 6,TYPE 7,TYPE 8 |
14173-83G52-000 |
US $3.72 |
||
|
12
|
12
14180-82G50-000
ブラケット,キャタリストケース,NO.1
TYPE 4 |
14180-82G50-000 |
— | ||
| replacement | |||||
|
12
|
12
14180-82G5V-000 BRACKET,CTLST CASE NO.1TYPE 4 |
14180-82G5V-000 |
US $4.97 |
||
|
12
|
12
14180-82G60-000
ブラケット,キャタリストケース,NO.1
TYPE 5,->14180-82G61,USED WITH 14173-83G52,AND 01550-10163 |
14180-82G60-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-1016B-000 BoltPlug, oil gallery TYPE 5,->14180-82G61,USED WITH 14173-83G52,AND 01550-10163 |
01550-1016B-000 |
from US $1.12 |
||
|
12
|
12
14173-83G52-000 BRACKET,CTLST CASE NO.2TYPE 5,->14180-82G61,USED WITH 14173-83G52,AND 01550-10163 |
14173-83G52-000 |
US $3.72 |
||
|
12
|
12
14180-82G61-000 BRACKET,CTLST CASE NO.1TYPE 5,->14180-82G61,USED WITH 14173-83G52,AND 01550-10163 |
14180-82G61-000 |
US $8.32 |
||
|
12
|
12
01550-1016A-000 BoltPlug, oil gallery TYPE 5,->14180-82G61,USED WITH 14173-83G52,AND 01550-10163 |
01550-1016A-000 |
from US $4.96 |
||
|
12
|
12
01550-10163-000
Bolt
TYPE 5,->14180-82G61,USED WITH 14173-83G52,AND 01550-10163 |
01550-10163-000 |
— | ||
|
12
|
12
14180-82G61-000 BRACKET,CTLST CASE NO.1TYPE 6 |
14180-82G61-000 |
US $8.32 |
||
|
12
|
12
14180-82G62-000 BRACKET,CTLST CASE NO.1HN22S-754518~ |
14180-82G62-000 |
US $13.76 |
||
|
13
|
13
14181-78F00-000 GASKET,CATALYST CASE |
14181-78F00-000 |
US $10.56 |
||
|
14
|
14
14181-78F50-000 GASKET,EXH MANF |
14181-78F50-000 |
from US $16.18 |
||
|
15
|
15
14182-85551-000 GASKET,EXH PIPEGasket, t/c outlet pipe |
14182-85551-000 |
US $11.10 |
||
|
16
|
16
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $0.95 |
||
|
17
|
17
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $0.95 |
||
|
18
|
18
09103-06187-000
Bolt (6x20)
|
09103-06187-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
||
|
19
|
19
09103-08118-000 BOLT(8X35) |
09103-08118-000 |
from US $10.55 |
||
|
20
|
20
09103-08368-000 BOLT(8X65) |
09103-08368-000 |
from US $6.64 |
||
|
21
|
21
09103-10315-000 BOLT(10X30) |
09103-10315-000 |
US $35.30 |
||
|
22
|
22
09108-08258-000 BOLT,STUDTYPE 4 |
09108-08258-000 |
US $87.20 |
||
|
22
|
22
09108-08264-000 BOLT,STUDTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09108-08264-000 |
US $86.10 |
||
|
23
|
23
09140-08023-000
Nut (ll/x)
|
09140-08023-000 |
— | ||
| replacement | |||||
|
23
|
23
09140-08023-XC0 NUT |
09140-08023-XC0 |
from US $1.93 |
||
|
23
|
23
09159-08130-000 NUTHN22S-775342~ |
09159-08130-000 |
from US $1.44 |
||
|
24
|
24
09159-08056-000 NUTTYPE 4,TYPE 5,TYPE 6 |
09159-08056-000 |
US $1.28 |
||
|
24
|
24
08316-10083-000
Nut
TYPE 7,TYPE 8 |
08316-10083-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1008B-000 NUTTYPE 7,TYPE 8 |
08316-1008B-000 |
from US $0.76 |
||
|
25
|
25
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
25
|
25
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
26
|
26
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
26
|
26
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
27
|
27
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
27
|
27
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
28
|
28
11851-62B00-000 HOOK |
11851-62B00-000 |
from US $1.87 |
||
|
29
|
29
18213-83G50-000
センサ,オキシジェン
|
18213-83G50-000 |
— | ||
| replacement | |||||
|
29
|
29
18213-83G51-000 SENSOR,OXYGEN |
18213-83G51-000 |
US $292.56 |
||
|
30
|
30
09404-06434-000
CLAMP(L:80 T:1.0)
TYPE 4 |
09404-06434-000 |
— | ||
|
30
|
30
09404-06433-000
CLAMP(L:80)
TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09404-06433-000 |
— | ||
| replacements | |||||
|
30
|
30
09404-06434-000
CLAMP(L:80 T:1.0)
TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09404-06434-000 |
— | ||
|
30
|
30
09404-06436-000 Clamp(L:80)TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09404-06436-000 |
from US $2.13 |
||
|
30
|
30
09404-06036-000 Clamp(L:80)TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09404-06036-000 |
from US $1.82 |
||
|
31
|
31
14172-83G50-000 COVER,CTLST CASE |
14172-83G50-000 |
US $10.78 |
||
|
32
|
32
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $0.95 |
||
|
33
|
33
14118-70G50-000 BOLT,EXH MANF 8X25TYPE 4,TYPE 5,TYPE 6 |
14118-70G50-000 |
US $7.36 |
||
|
34
|
34
01550-08163-000
Bolt, holder
TYPE 4,TYPE 5 |
01550-08163-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-0816B-000 BoltTYPE 4,TYPE 5 |
01550-0816B-000 |
from US $0.91 |
||
|
34
|
34
01550-0816A-000 BoltBolt, rear TYPE 4,TYPE 5 |
01550-0816A-000 |
from US $0.91 |
||
|
34
|
34
01550-10203-000
Bolt
TYPE 6,TYPE 7,TYPE 8 |
01550-10203-000 |
— | ||
| replacement | |||||
|
34
|
34
01550-1020A-000 BoltBolt, bal sprocket TYPE 6,TYPE 7,TYPE 8 |
01550-1020A-000 |
from US $0.96 |
||
|
35
|
35
01550-08453-000
Bolt,cylinder h
HN22S-754518~ |
01550-08453-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0845B-000 BoltHN22S-754518~ |
01550-0845B-000 |
from US $1.06 |
||
|
35
|
35
01550-0845A-000 BoltBolt, oil pump (s) HN22S-754518~ |
01550-0845A-000 |
US $5.03 |
||
