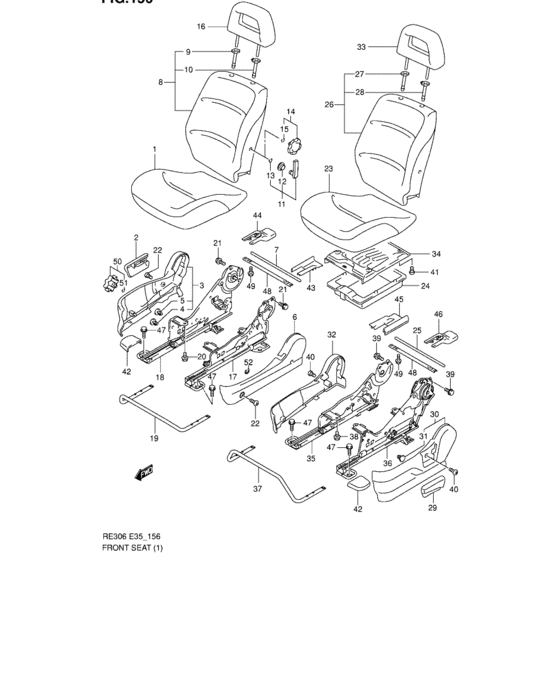

Front seat (TYPE 1,2,3,4,5) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-74G00-M2J
Cushion assy, front
TYPE 1 |
85101-74G00-M2J |
— | ||
|
1
|
1
85101-74G00-CK2
Cushion assy,fr(gray)
TYPE 2 |
85101-74G00-CK2 |
— | ||
|
1
|
1
85101-74G00-EJ9
Cushion assy,fr
TYPE 3 |
85101-74G00-EJ9 |
— | ||
|
1
|
1
85101-74G60-GD8
Cushion assy,fr
TYPE 4,TYPE 5 |
85101-74G60-GD8 |
— | ||
| replacement | |||||
|
1
|
1
85101-74G61-GD8
CUSHION ASSY,FR
TYPE 4,TYPE 5 |
85101-74G61-GD8 |
— | ||
|
2
|
2
85211-76G00-V12
Knob, reclining rh (gray)
TYPE 1 |
85211-76G00-V12 |
— | ||
| replacement | |||||
|
2
|
2
85211-75H00-P4Z KNOB,RECL,RTYPE 1 |
85211-75H00-P4Z |
from US $2.99 |
||
|
2
|
2
85211-76G00-T01
KNOB,RECL,R
TYPE 2 |
85211-76G00-T01 |
— | ||
|
2
|
2
85211-76G00-P4Z
ノブ,リクライニング,ライト(グレー)
TYPE 3,TYPE 4,TYPE 5 |
85211-76G00-P4Z |
— | ||
| replacement | |||||
|
2
|
2
85211-75H00-P4Z KNOB,RECL,RTYPE 3,TYPE 4,TYPE 5 |
85211-75H00-P4Z |
from US $2.99 |
||
|
3
|
3
85220-74G10-V12
Cover,recl outside,r
TYPE 1 |
85220-74G10-V12 |
— | ||
| replacement | |||||
|
3
|
3
85220-74G11-V12
COVER,RECL OUTSIDE,R
TYPE 1 |
85220-74G11-V12 |
— | ||
|
3
|
3
85220-74G10-T01
Cover,recl outside,r
TYPE 2 |
85220-74G10-T01 |
— | ||
| replacement | |||||
|
3
|
3
85220-74G11-T01 COVER,RECL OUTSIDE,RTYPE 2 |
85220-74G11-T01 |
US $103.41 |
||
|
3
|
3
85220-80G01-P4Z COVER,RECL OUTSIDE,RTYPE 3,TYPE 4,TYPE 5 |
85220-80G01-P4Z |
US $44.16 |
||
|
4
|
4
85225-74G00-P4Z CLIP, |
85225-74G00-P4Z |
US $2.36 |
||
|
5
|
5
85225-80G00-P4Z CLIP,RECL COVERTYPE 4,TYPE 5 |
85225-80G00-P4Z |
US $2.69 |
||
|
6
|
6
85241-74G01-V12
カバー,リクライニングインサイド,ライト(グレー)
TYPE 1 |
85241-74G01-V12 |
— | ||
|
6
|
6
85241-74G01-T01
COVER,RECL INSIDE,R
TYPE 2 |
85241-74G01-T01 |
— | ||
|
6
|
6
85241-74G01-P4Z
COVER,RECL INSIDE,R
TYPE 3 |
85241-74G01-P4Z |
— | ||
|
6
|
6
85241-80G00-P4Z COVER,RECL INSIDE,RTYPE 4,TYPE 5 |
85241-80G00-P4Z |
US $39.01 |
||
|
7
|
7
85250-74G00-000
ROD,FR ADJUSTER
|
85250-74G00-000 |
— | ||
|
8
|
8
85301-74G10-M2J
Back assy, front
TYPE 1 |
85301-74G10-M2J |
— | ||
|
8
|
8
85301-74G30-CK2
バックアッシ,フロント
TYPE 2 |
85301-74G30-CK2 |
— | ||
|
8
|
8
85301-74G30-EJ9
バックアッシ,フロント
TYPE 3 |
85301-74G30-EJ9 |
— | ||
|
8
|
8
85301-74G60-GD8
Back assy,fr
TYPE 4,TYPE 5 |
85301-74G60-GD8 |
— | ||
|
9
|
9
85341-81A00-T01 GUIDE,HEADRESTRAINTTYPE 1,TYPE 2 |
85341-81A00-T01 |
US $6.04 |
||
|
9
|
9
85341-81A00-P4Z GUIDE,HEADRESTRAINTTYPE 3,TYPE 4,TYPE 5 |
85341-81A00-P4Z |
from US $3.49 |
||
|
10
|
10
85840-81A10-T01 GUIDE,HEADRESTRAINTTYPE 1,TYPE 2 |
85840-81A10-T01 |
US $13.73 |
||
|
10
|
10
85840-81A10-P4Z GUIDE,HEADRESTRAINTTYPE 3,TYPE 4,TYPE 5 |
85840-81A10-P4Z |
US $11.63 |
||
|
11
|
11
86170-74G00-V12
LEVER,LUMBAR SUPPORT
TYPE 1 |
86170-74G00-V12 |
— | ||
| replacement | |||||
|
11
|
11
86170-74G00-T01 LEVER,LUMBER SUPPORTTYPE 1 |
86170-74G00-T01 |
US $9.97 |
||
|
12
|
12
86172-74G00-V12
Spacer, rumber support lever (
TYPE 1 |
86172-74G00-V12 |
— | ||
| replacement | |||||
|
12
|
12
86172-74G00-T01
SPACER,LEVER
TYPE 1 |
86172-74G00-T01 |
— | ||
|
13
|
13
78463-78000-000 SNAPTYPE 1 |
78463-78000-000 |
from US $1.24 |
||
|
14
|
14
86170-80G00-T01
KNOB,SUPPORT
TYPE 2 |
86170-80G00-T01 |
— | ||
|
14
|
14
86170-80G00-P4Z KNOBTYPE 3,TYPE 4,TYPE 5 |
86170-80G00-P4Z |
from US $6.73 |
||
|
15
|
15
78463-78000-000 SNAPTYPE 2,TYPE 3,TYPE 4,TYPE 5 |
78463-78000-000 |
from US $1.24 |
||
|
16
|
16
86401-76F50-W11
Headrestraint assy
TYPE 1 |
86401-76F50-W11 |
— | ||
| replacement | |||||
|
16
|
16
86401-76F51-W11
Headrestraint assy
TYPE 1 |
86401-76F51-W11 |
— | ||
|
16
|
16
86401-76F50-P2N
ヘッドレストレイントアッシ(ブルー)
TYPE 2 |
86401-76F50-P2N |
— | ||
| replacement | |||||
|
16
|
16
86401-76F51-P2N
HEADRESTRAINT ASSY
TYPE 2 |
86401-76F51-P2N |
— | ||
|
16
|
16
86401-76F50-P6U
ヘッドレストレイントアッシ
TYPE 3 |
86401-76F50-P6U |
— | ||
| replacement | |||||
|
16
|
16
86401-76F51-P6U
HEADRESTRAINT ASSY
TYPE 3 |
86401-76F51-P6U |
— | ||
|
16
|
16
86401-76F50-R0G HEADRESTRAINT ASSYTYPE 4,TYPE 5 |
86401-76F50-R0G |
US $148.30 |
||
|
17
|
17
86601-74G01-000 ADJUSTER ASSY,FR INSIDE,RTYPE 1,TYPE 2,TYPE 3 |
86601-74G01-000 |
US $140.58 |
||
|
17
|
17
86601-74G50-000
ADJUSTER ASSY,FR INSIDE,R
TYPE 4,TYPE 5 |
86601-74G50-000 |
— | ||
|
18
|
18
86603-74G01-000
Adjuster assy, fr outside rh
TYPE 1,TYPE 2,->86603-74G02,USED WITH 86691-74G01 |
86603-74G01-000 |
— | ||
| replacements | |||||
|
18
|
18
86603-74G02-000 ADJUSTER ASSY,FR OUTSIDE,RTYPE 1,TYPE 2,->86603-74G02,USED WITH 86691-74G01 |
86603-74G02-000 |
US $237.36 |
||
|
18
|
18
86691-74G01-000
HANDLE,FR ADJ
TYPE 1,TYPE 2,->86603-74G02,USED WITH 86691-74G01 |
86691-74G01-000 |
— | ||
|
18
|
18
86603-74G02-000 ADJUSTER ASSY,FR OUTSIDE,RTYPE 2,TYPE 3,HN21S-110025~,HN21S-614477~ |
86603-74G02-000 |
US $237.36 |
||
|
18
|
18
86603-74G50-000 ADJUSTER ASSY,FR OUTSIDE,RTYPE 4,TYPE 5 |
86603-74G50-000 |
US $312.80 |
||
|
19
|
19
86691-74G00-000
Handle, fr adjuster rh
TYPE 1,TYPE 2 |
86691-74G00-000 |
— | ||
|
19
|
19
86691-74G01-000
HANDLE,FR ADJ
TYPE 2,TYPE 3,HN21S-110025~,HN21S-614477~ |
86691-74G01-000 |
— | ||
|
19
|
19
86691-74G50-000
HANDLE,FR ADJ,R
TYPE 4,TYPE 5 |
86691-74G50-000 |
— | ||
|
20
|
20
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
20
|
20
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
21
|
21
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
22
|
22
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
22
|
22
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
22
|
22
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
23
|
23
85101-74G00-M2J
Cushion assy, front
TYPE 1 |
85101-74G00-M2J |
— | ||
|
23
|
23
85101-74G00-CK2
Cushion assy,fr(gray)
TYPE 2 |
85101-74G00-CK2 |
— | ||
|
23
|
23
85101-74G00-EJ9
Cushion assy,fr
TYPE 3 |
85101-74G00-EJ9 |
— | ||
|
23
|
23
85101-74G10-GD8
Cushion assy,fr
TYPE 4,TYPE 5 |
85101-74G10-GD8 |
— | ||
|
24
|
24
85150-80G10-000 TRAY ASSY,FR UNDER |
85150-80G10-000 |
from US $52.31 |
||
|
25
|
25
85250-74G00-000
ROD,FR ADJUSTER
|
85250-74G00-000 |
— | ||
|
26
|
26
85301-74G00-M2J
Back assy, front
TYPE 1 |
85301-74G00-M2J |
— | ||
|
26
|
26
85301-74G00-CK2
バックアッシ,フロント
TYPE 2 |
85301-74G00-CK2 |
— | ||
|
26
|
26
85301-74G00-EJ9
BACK ASSY,FR
TYPE 3 |
85301-74G00-EJ9 |
— | ||
|
26
|
26
85301-74G50-GD8
Back assy,fr
TYPE 4,TYPE 5 |
85301-74G50-GD8 |
— | ||
|
27
|
27
85341-81A00-T01 GUIDE,HEADRESTRAINTTYPE 1,TYPE 2 |
85341-81A00-T01 |
US $6.04 |
||
|
27
|
27
85341-81A00-P4Z GUIDE,HEADRESTRAINTTYPE 3,TYPE 4,TYPE 5 |
85341-81A00-P4Z |
from US $3.49 |
||
|
28
|
28
85840-81A10-T01 GUIDE,HEADRESTRAINTTYPE 1,TYPE 2 |
85840-81A10-T01 |
US $13.73 |
||
|
28
|
28
85840-81A10-P4Z GUIDE,HEADRESTRAINTTYPE 3,TYPE 4,TYPE 5 |
85840-81A10-P4Z |
US $11.63 |
||
|
29
|
29
85711-76G00-V12
Knob, reclining lh (gray)
TYPE 1 |
85711-76G00-V12 |
— | ||
| replacement | |||||
|
29
|
29
85711-75H00-P4Z KNOB,RECL,LTYPE 1 |
85711-75H00-P4Z |
from US $2.99 |
||
|
29
|
29
85711-76G00-T01
Knob,recl,l
TYPE 2 |
85711-76G00-T01 |
— | ||
| replacement | |||||
|
29
|
29
85711-75H00-T01 KNOB,RECL,LTYPE 2 |
85711-75H00-T01 |
US $4.67 |
||
|
29
|
29
85711-76G00-P4Z
ノブ,リクライニング,レフト(グレー)
TYPE 3,TYPE 4,TYPE 5 |
85711-76G00-P4Z |
— | ||
| replacement | |||||
|
29
|
29
85711-75H00-P4Z KNOB,RECL,LTYPE 3,TYPE 4,TYPE 5 |
85711-75H00-P4Z |
from US $2.99 |
||
|
30
|
30
85720-74G10-V12
Cover,recl outside,l
TYPE 1 |
85720-74G10-V12 |
— | ||
| replacement | |||||
|
30
|
30
85720-74G11-V12
COVER,RECL OUTSIDE,L
TYPE 1 |
85720-74G11-V12 |
— | ||
|
30
|
30
85720-74G10-T01
Cover,recl outside,l
TYPE 2 |
85720-74G10-T01 |
— | ||
| replacement | |||||
|
30
|
30
85720-74G11-T01
COVER,RECL OUTSIDE,L
TYPE 2 |
85720-74G11-T01 |
— | ||
|
30
|
30
85720-74G10-P4Z
Cover,recl outside,l
TYPE 3,TYPE 4,TYPE 5 |
85720-74G10-P4Z |
— | ||
| replacement | |||||
|
30
|
30
85720-74G11-P4Z COVER,RECL OUTSIDE,LTYPE 3,TYPE 4,TYPE 5 |
85720-74G11-P4Z |
US $42.69 |
||
|
31
|
31
85225-74G00-P4Z CLIP, |
85225-74G00-P4Z |
US $2.36 |
||
|
32
|
32
85741-74G01-V12
Cover, reclining inside lh
TYPE 1 |
85741-74G01-V12 |
— | ||
| replacement | |||||
|
32
|
32
85741-80G00-V12
カバー,リクライニングインサイド,レフト(グレー)
TYPE 1 |
85741-80G00-V12 |
— | ||
|
32
|
32
85741-74G01-T01
COVER,RECL INSIDE,L
TYPE 2 |
85741-74G01-T01 |
— | ||
|
32
|
32
85741-74G01-P4Z
COVER,RECL INSIDE,L
TYPE 3 |
85741-74G01-P4Z |
— | ||
|
32
|
32
85741-80G00-P4Z COVER,RECL INSIDE,LTYPE 4,TYPE 5 |
85741-80G00-P4Z |
US $39.01 |
||
|
33
|
33
86401-76F50-W11
Headrestraint assy
TYPE 1 |
86401-76F50-W11 |
— | ||
| replacement | |||||
|
33
|
33
86401-76F51-W11
Headrestraint assy
TYPE 1 |
86401-76F51-W11 |
— | ||
|
33
|
33
86401-76F50-P2N
ヘッドレストレイントアッシ(ブルー)
TYPE 2 |
86401-76F50-P2N |
— | ||
| replacement | |||||
|
33
|
33
86401-76F51-P2N
HEADRESTRAINT ASSY
TYPE 2 |
86401-76F51-P2N |
— | ||
|
33
|
33
86401-76F50-P6U
ヘッドレストレイントアッシ
TYPE 3 |
86401-76F50-P6U |
— | ||
| replacement | |||||
|
33
|
33
86401-76F51-P6U
HEADRESTRAINT ASSY
TYPE 3 |
86401-76F51-P6U |
— | ||
|
33
|
33
86401-76F50-R0G HEADRESTRAINT ASSYTYPE 4,TYPE 5 |
86401-76F50-R0G |
US $148.30 |
||
|
34
|
34
86521-74G00-000 BRACKET,UNDER TRAY |
86521-74G00-000 |
US $34.41 |
||
|
35
|
35
86602-74G11-000
ADJUSTER ASSY,FR INSIDE,L
3DR |
86602-74G11-000 |
— | ||
|
35
|
35
86602-74G01-000
ADJUSTER ASSY,FR INSIDE,L
5DR |
86602-74G01-000 |
— | ||
|
36
|
36
86604-74G11-000
Adjuster assy, fr outside lh
3DR,->86604-74G12,USED WITH 86891-74G01 |
86604-74G11-000 |
— | ||
| replacements | |||||
|
36
|
36
86604-74G12-000
Adjuster assy,fr outside,l
3DR,->86604-74G12,USED WITH 86891-74G01 |
86604-74G12-000 |
— | ||
|
36
|
36
86891-74G10-000
HANDLE,FR ADJUSTER,L
3DR,->86604-74G12,USED WITH 86891-74G01 |
86891-74G10-000 |
— | ||
|
36
|
36
86604-74G12-000
Adjuster assy,fr outside,l
3DR,HN21S-110025~ |
86604-74G12-000 |
— | ||
|
36
|
36
86604-74G01-000
Adjuster assy, fr outside lh
5DR,->86604-74G02,USED WITH 86891-74G01 |
86604-74G01-000 |
— | ||
| replacements | |||||
|
36
|
36
86604-74G02-000 ADJUSTER ASSY,FR OUTSIDE,L5DR,->86604-74G02,USED WITH 86891-74G01 |
86604-74G02-000 |
US $237.36 |
||
|
36
|
36
86891-74G10-000
HANDLE,FR ADJUSTER,L
5DR,->86604-74G02,USED WITH 86891-74G01 |
86891-74G10-000 |
— | ||
|
36
|
36
86604-74G02-000 ADJUSTER ASSY,FR OUTSIDE,L5DR,HN21S-614477~,HN22S-700001~ |
86604-74G02-000 |
US $237.36 |
||
|
37
|
37
86891-74G00-000
HANDLE,FR ADJUSTER,L
|
86891-74G00-000 |
— | ||
|
37
|
37
86891-74G10-000
HANDLE,FR ADJUSTER,L
HN21S-110025~,HN21S-614477~,HN22S-700001~ |
86891-74G10-000 |
— | ||
|
38
|
38
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
38
|
38
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
39
|
39
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
39
|
39
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
40
|
40
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
40
|
40
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
40
|
40
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
41
|
41
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
41
|
41
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
42
|
42
85492-76G00-T01
COVER,FR OUTSIDE
TYPE 1,TYPE 2 |
85492-76G00-T01 |
— | ||
|
42
|
42
85492-76G00-P4Z COVER,FR OUTSIDETYPE 3,TYPE 4,TYPE 5 |
85492-76G00-P4Z |
US $4.75 |
||
|
43
|
43
85495-76G00-T01 COVER,RR INSIDE,RTYPE 1,TYPE 2 |
85495-76G00-T01 |
US $7.76 |
||
|
43
|
43
85495-76G00-P4Z COVER,RR INSIDE,RTYPE 3,TYPE 4,TYPE 5 |
85495-76G00-P4Z |
US $7.76 |
||
|
44
|
44
85496-76G00-T01 COVER,RR OUTSIDETYPE 1,TYPE 2 |
85496-76G00-T01 |
US $5.78 |
||
|
44
|
44
85496-76G00-P4Z COVER,RR OUTSIDETYPE 3,TYPE 4,TYPE 5 |
85496-76G00-P4Z |
US $5.78 |
||
|
45
|
45
85995-76G00-T01 COVER,RR INSIDE,LTYPE 1,TYPE 2 |
85995-76G00-T01 |
US $7.76 |
||
|
45
|
45
85995-76G00-P4Z COVER,RR INSIDE,LTYPE 3,TYPE 4,TYPE 5 |
85995-76G00-P4Z |
US $7.76 |
||
|
46
|
46
85496-76G00-T01 COVER,RR OUTSIDETYPE 1,TYPE 2 |
85496-76G00-T01 |
US $5.78 |
||
|
46
|
46
85496-76G00-P4Z COVER,RR OUTSIDETYPE 3,TYPE 4,TYPE 5 |
85496-76G00-P4Z |
US $5.78 |
||
|
47
|
47
01551-10253-000
Bolt
|
01551-10253-000 |
— | ||
| replacement | |||||
|
47
|
47
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
48
|
48
85770-76GC0-000 MEMBER,CONV RR |
85770-76GC0-000 |
US $14.87 |
||
|
49
|
49
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
49
|
49
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
49
|
49
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
50
|
50
86170-80G00-P4Z KNOBTYPE 4,TYPE 5 |
86170-80G00-P4Z |
from US $6.73 |
||
|
51
|
51
78463-78000-000 SNAPTYPE 4,TYPE 5 |
78463-78000-000 |
from US $1.24 |
||
|
52
|
52
08332-11086-000
E ring
TYPE 4,TYPE 5 |
08332-11086-000 |
— | ||
| replacement | |||||
|
52
|
52
08332-1108A-000 E RINGTYPE 4,TYPE 5 |
08332-1108A-000 |
from US $0.96 |
||
