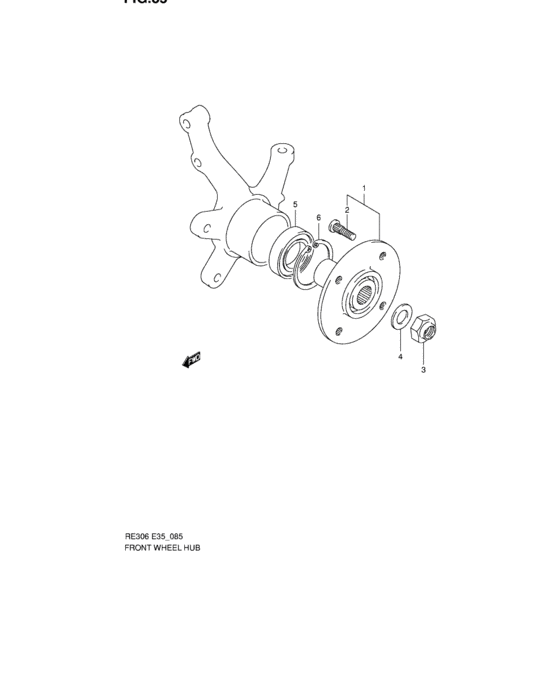

Front wheel hub (FRONT WHEEL HUB) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43420-76810-000
Hub, front wheel
|
43420-76810-000 |
— | ||
| replacement | |||||
|
1
|
1
43420-76811-000 HUB SET,FR WHL |
43420-76811-000 |
US $172.80 |
||
|
2
|
2
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $1.33 |
||
|
3
|
3
09159-18008-000 NUT |
09159-18008-000 |
from US $4.10 |
||
|
4
|
4
09160-18017-000 WASHER(18X35X4) |
09160-18017-000 |
from US $0.91 |
||
|
5
|
5
43440-84F00-000
Bearing, rr hub
|
43440-84F00-000 |
— | ||
| replacements | |||||
|
5
|
5
43440-58J00-000
BEARING,FR WHEEL
|
43440-58J00-000 |
— | ||
|
5
|
5
43440-58J01-000 BEARING,FR WHEEL |
43440-58J01-000 |
from US $56.24 |
||
|
6
|
6
08331-41626-000
Ring 62mm
|
08331-41626-000 |
— | ||
| replacement | |||||
|
6
|
6
08331-4162A-000 CIRCLIP |
08331-4162A-000 |
from US $2.68 |
||
