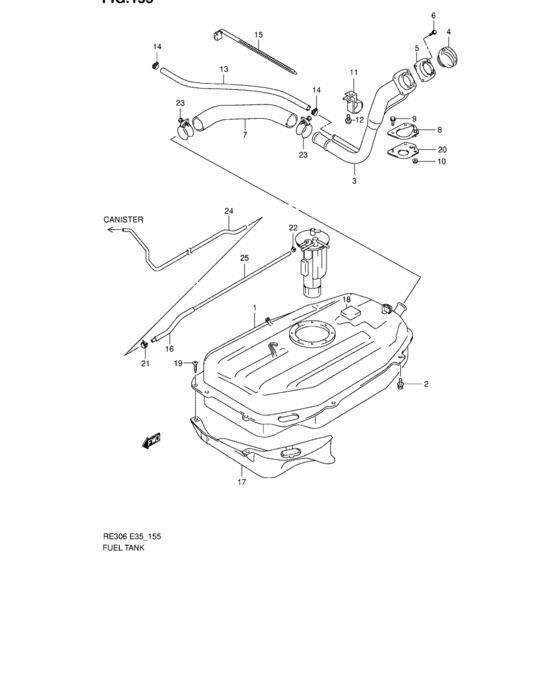

Fuel tank (FUEL TANK) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-76G10-000
Tank assy, fuel
|
89101-76G10-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-76G12-000 TANK ASSY,FUEL |
89101-76G12-000 |
US $390.08 |
||
|
2
|
2
09118-08151-000
Bolt (8x25)
|
09118-08151-000 |
— | ||
| replacement | |||||
|
2
|
2
09118-08151-XC0 BOLT(8X25) |
09118-08151-XC0 |
US $21.70 |
||
|
3
|
3
89210-76G11-000
Neck, fuel filler
|
89210-76G11-000 |
— | ||
| replacement | |||||
|
3
|
3
89210-76G12-000
NECK,FUEL FILLER
|
89210-76G12-000 |
— | ||
|
4
|
4
89260-50J00-000 CAP ASSY,FUEL FILLER |
89260-50J00-000 |
US $21.49 |
||
|
5
|
5
89285-75F00-000 PACKING,FUEL FILLER |
89285-75F00-000 |
from US $3.87 |
||
|
6
|
6
02162-05123-000
Screw
|
02162-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0512A-000 SCREW |
02162-0512A-000 |
from US $0.80 |
||
|
7
|
7
89241-75F00-000 HOSE,FUEL TANK FILLERTYPE 1,TYPE 2,TYPE 3 |
89241-75F00-000 |
US $35.33 |
||
|
7
|
7
89241-75F20-000 HOSE,FUEL TANK FILLERTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
89241-75F20-000 |
US $84.80 |
||
|
8
|
8
89291-75F00-000 BRACKET,FUEL FILLER |
89291-75F00-000 |
US $25.60 |
||
|
9
|
9
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
10
|
10
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
89280-75F00-000
Clamp, fuel filler neck
|
89280-75F00-000 |
— | ||
| replacement | |||||
|
11
|
11
89280-75F0V-000 CLAMP,FUEL FILLER NECK |
89280-75F0V-000 |
US $19.20 |
||
|
12
|
12
09118-06106-000 BOLT(6X16)TYPE 1,TYPE 2,TYPE 3,TYPE 4 |
09118-06106-000 |
from US $1.12 |
||
|
12
|
12
09116-06173-000
Bolt
TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09116-06173-000 |
— | ||
| replacement | |||||
|
12
|
12
09116-06205-000 BOLT(6X16)TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09116-06205-000 |
from US $0.96 |
||
|
13
|
13
09355-11165-00B HOSE(11X16X2000)TYPE 1,TYPE 2,TYPE 3,L:2000->720 |
09355-11165-00B |
US $27.60 |
||
|
13
|
13
09355-11188-00B HOSE(11X17.8X2000)TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8,L:2000->720 |
09355-11188-00B |
US $23 |
||
|
14
|
14
09401-14404-000 CLIPTYPE 1,TYPE 2,TYPE 3 |
09401-14404-000 |
from US $3.59 |
||
|
14
|
14
09401-16406-000
Clip
TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09401-16406-000 |
— | ||
| replacement | |||||
|
14
|
14
09401-16407-000 CLIPTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09401-16407-000 |
from US $1.60 |
||
|
15
|
15
09407-19401-000 CLAMP(L:190) |
09407-19401-000 |
from US $4.17 |
||
|
16
|
16
89489-63B00-000 PROTECTOR,VALVE OUTLET HOSETYPE 1,TYPE 2,TYPE 3 |
89489-63B00-000 |
US $6.18 |
||
|
16
|
16
89489-76G10-000 PROTECTOR,VALVE OUTLET HOSETYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
89489-76G10-000 |
US $4.67 |
||
|
17
|
17
89191-76G01-000 COVER,FUEL TANK,LOWER |
89191-76G01-000 |
US $27.42 |
||
|
18
|
18
89521-60B01-000 PAD,FUEL TANK |
89521-60B01-000 |
US $8.98 |
||
|
19
|
19
03542-06163-000
Screw
|
03542-06163-000 |
— | ||
| replacement | |||||
|
19
|
19
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
|
20
|
20
89282-75F10-000 SEAL,FUEL FILLER NECK |
89282-75F10-000 |
US $13.28 |
||
|
21
|
21
09401-11413-000 CLIPTYPE 1,TYPE 2,TYPE 3 |
09401-11413-000 |
from US $0.88 |
||
|
21
|
21
09401-11415-000 CLIPTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09401-11415-000 |
from US $1.06 |
||
|
22
|
22
09401-12404-000 CLIPClip TYPE 1,TYPE 2,TYPE 3 |
09401-12404-000 |
from US $1.10 |
||
|
22
|
22
09401-12405-000 CLIPTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09401-12405-000 |
from US $1.67 |
||
|
23
|
23
09400-45311-000 CLAMP |
09400-45311-000 |
from US $1.01 |
||
|
24
|
24
89483-76G00-000 PIPE,FUEL EVAPTYPE 1 |
89483-76G00-000 |
US $24.84 |
||
|
24
|
24
89483-76G10-000
パイプ,フューエルエバポレータ
TYPE 2,TYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
89483-76G10-000 |
— | ||
| replacement | |||||
|
24
|
24
89483-76G11-000 PIPE,FUEL EVAPTYPE 2,TYPE 3,TYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
89483-76G11-000 |
US $35.33 |
||
|
25
|
25
09359-54112-760 HOSE(5.4X11.4X760)Hose, fuel (pump to carb) (5.4x11.4x760) TYPE 1,TYPE 2,TYPE 3,L:760->540 |
09359-54112-760 |
US $17.50 |
||
|
25
|
25
09359-54121-600
ホース,5.6X12.4X600
TYPE 4,TYPE 5,L:600->540 |
09359-54121-600 |
— | ||
| replacement | |||||
|
25
|
25
09359-54121-610 HOSETYPE 4,TYPE 5,L:600->540 |
09359-54121-610 |
from US $9.49 |
||
