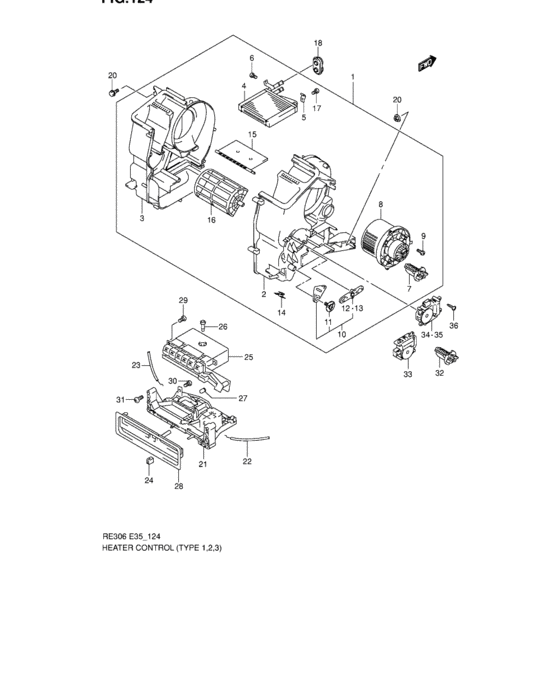

Heater control (TYPE 1,2,3) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-76G83-000
ヒータユニット
TYPE 1,TYPE 2 |
74100-76G83-000 |
— | ||
| replacement | |||||
|
1
|
1
74100-76G84-000
HEATER UNIT
TYPE 1,TYPE 2 |
74100-76G84-000 |
— | ||
|
1
|
1
74100-76G43-000
Heater unit
TYPE 3 |
74100-76G43-000 |
— | ||
| replacement | |||||
|
1
|
1
74100-76G44-000
HEATER UNIT
TYPE 3 |
74100-76G44-000 |
— | ||
|
2
|
2
74111-76G03-000 CASE,HEATER,R |
74111-76G03-000 |
US $71.39 |
||
|
3
|
3
74112-76G02-000 CASE,HEATER,L |
74112-76G02-000 |
US $71.39 |
||
|
4
|
4
74120-76G00-000 CORE,HEATER |
74120-76G00-000 |
US $404.80 |
||
|
5
|
5
74117-76G00-000 CLAMP,PIPE |
74117-76G00-000 |
US $3.20 |
||
|
6
|
6
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
7
|
7
74140-81A00-000 RESISTOR,BLOWERTYPE 3 |
74140-81A00-000 |
from US $33.44 |
||
|
8
|
8
74150-76G00-000
Motor assy, blower
|
74150-76G00-000 |
— | ||
| replacement | |||||
|
8
|
8
74150-75H01-000 MOTOR ASSY |
74150-75H01-000 |
US $345.92 |
||
|
9
|
9
74135-82000-000 SCREW,MOTOR |
74135-82000-000 |
US $1.73 |
||
|
10
|
10
74180-77A00-000 LEVER,TEMPTYPE 3 |
74180-77A00-000 |
US $20.24 |
||
|
11
|
11
74183-82005-000 SCREW,LINKTYPE 3 |
74183-82005-000 |
US $1.73 |
||
|
12
|
12
74185-77A00-000 LEVER,TEMPTYPE 3 |
74185-77A00-000 |
US $7.99 |
||
|
13
|
13
74185-77A00-000 LEVER,TEMPTYPE 1,TYPE 2 |
74185-77A00-000 |
US $7.99 |
||
|
14
|
14
74151-50F00-000 CABLETYPE 3 |
74151-50F00-000 |
from US $2.21 |
||
|
15
|
15
74171-77A00-000 DOOR ASSY,TEMP |
74171-77A00-000 |
US $16.56 |
||
|
16
|
16
74172-77A00-000 DOOR ASSY,MODE |
74172-77A00-000 |
US $16.56 |
||
|
17
|
17
03112-05123-000
Screw
|
03112-05123-000 |
— | ||
| replacement | |||||
|
17
|
17
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
18
|
18
74812-82030-000 GROMMET,HTR |
74812-82030-000 |
US $13.60 |
||
|
19
|
19
09116-06167-000 BOLT(6X20)Bolt (6x20) |
09116-06167-000 |
from US $1.37 |
||
|
20
|
20
09159-06081-000 NUT |
09159-06081-000 |
from US $1.31 |
||
|
21
|
21
74400-81A40-000 LEVER ASSY,HTR CONTTYPE 3 |
74400-81A40-000 |
US $107.82 |
||
|
22
|
22
74452-74G40-000
CABLE,TEMP CONTROL L:465
TYPE 3 |
74452-74G40-000 |
— | ||
|
23
|
23
74453-76G40-000 CABLE,F&R CONTROL L:535TYPE 3 |
74453-76G40-000 |
US $7.51 |
||
|
24
|
24
74461-77A00-000 KNOB,HTR CONTTYPE 3 |
74461-77A00-000 |
from US $1.98 |
||
|
25
|
25
74550-65D01-5PK SWITCH,HTR CONTROLTYPE 3 |
74550-65D01-5PK |
US $281.52 |
||
|
26
|
26
74513-63G00-000 BULB,0.7WTYPE 3 |
74513-63G00-000 |
from US $4.03 |
||
|
27
|
27
74514-63G00-000 BULB,0.6WTYPE 3 |
74514-63G00-000 |
from US $4.01 |
||
|
28
|
28
74510-81A40-000
PANEL,HEATER CONTROL
TYPE 3 |
74510-81A40-000 |
— | ||
|
29
|
29
03512-05123-000
Screw
TYPE 3 |
03512-05123-000 |
— | ||
| replacement | |||||
|
29
|
29
03511-0512A-000 SCREWTYPE 3 |
03511-0512A-000 |
from US $0.96 |
||
|
30
|
30
03512-05123-000
Screw
TYPE 3 |
03512-05123-000 |
— | ||
| replacement | |||||
|
30
|
30
03511-0512A-000 SCREWTYPE 3 |
03511-0512A-000 |
from US $0.96 |
||
|
31
|
31
03541-05123-000
Screw
TYPE 3 |
03541-05123-000 |
— | ||
| replacement | |||||
|
31
|
31
03541-0512B-000 SCREWTYPE 3 |
03541-0512B-000 |
from US $0.76 |
||
|
32
|
32
95626-76G00-000 DRIVER,BLOWER FANTYPE 1,TYPE 2 |
95626-76G00-000 |
US $93.10 |
||
|
33
|
33
95651-76G00-000
Actuator, temp
TYPE 1,TYPE 2 |
95651-76G00-000 |
— | ||
| replacement | |||||
|
33
|
33
95651-76G01-000 ACTUATOR,TEMPTYPE 1,TYPE 2 |
95651-76G01-000 |
US $92.74 |
||
|
34
|
34
95653-76G00-000 ACTUATOR,MODETYPE 1,TYPE 2 |
95653-76G00-000 |
US $91.26 |
||
|
35
|
35
74563-76G10-000 ACTUATOR,MODETYPE 3 |
74563-76G10-000 |
US $151.98 |
||
|
36
|
36
03541-04163-000
Screw
TYPE 1,TYPE 2 |
03541-04163-000 |
— | ||
| replacement | |||||
|
36
|
36
03541-0416A-000 SCREWScrew, trunk box lamp TYPE 1,TYPE 2 |
03541-0416A-000 |
from US $0.76 |
||
