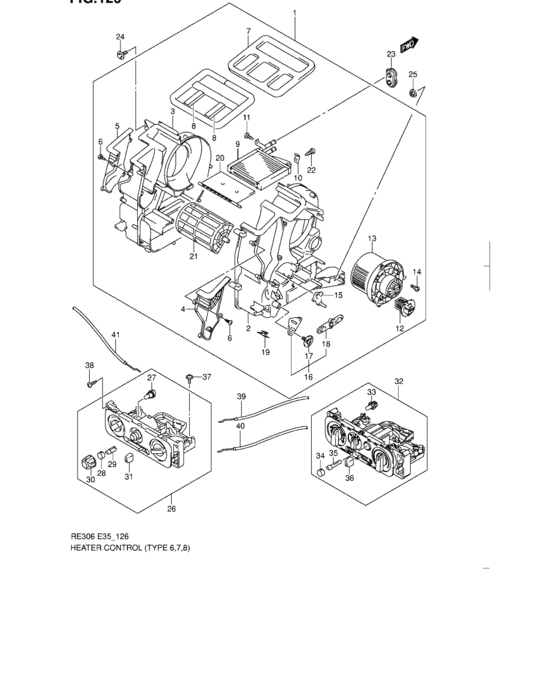

Heater control (TYPE 6,7,8) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-73H01-000
ヒータユニット
|
74100-73H01-000 |
— | ||
| replacement | |||||
|
1
|
1
74100-73H02-000
HEATER UNIT
|
74100-73H02-000 |
— | ||
|
2
|
2
74111-73H00-000
ケース,ヒータ,ライト
|
74111-73H00-000 |
— | ||
| replacement | |||||
|
2
|
2
74111-73H01-000 CASE,HEATER,R |
74111-73H01-000 |
US $71.39 |
||
|
3
|
3
74112-73H00-000
ケース,ヒータ,レフト
|
74112-73H00-000 |
— | ||
| replacement | |||||
|
3
|
3
74112-73H01-000 CASE,HEATER,L |
74112-73H01-000 |
US $71.39 |
||
|
4
|
4
74113-75H00-000 COVER,R |
74113-75H00-000 |
US $32.38 |
||
|
5
|
5
74114-75H00-000 COVER,L |
74114-75H00-000 |
US $32.38 |
||
|
6
|
6
03112-04163-000
Screw
|
03112-04163-000 |
— | ||
| replacement | |||||
|
6
|
6
03111-0416A-000 SCREW |
03111-0416A-000 |
US $0.80 |
||
|
7
|
7
74116-75H01-000 PACKINGHN22S-757944~ |
74116-75H01-000 |
US $10.49 |
||
|
8
|
8
74119-80G20-000 PACKING~HN22S-756871 |
74119-80G20-000 |
US $8.24 |
||
|
9
|
9
74120-76G00-000 CORE,HEATER |
74120-76G00-000 |
US $404.80 |
||
|
10
|
10
74117-76G00-000 CLAMP,PIPE |
74117-76G00-000 |
US $3.20 |
||
|
11
|
11
03112-05123-000
Screw
|
03112-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
12
|
12
74140-84G00-000 RESISTOR,BLOWER |
74140-84G00-000 |
US $38.64 |
||
|
13
|
13
74150-76G00-000
Motor assy, blower
|
74150-76G00-000 |
— | ||
| replacement | |||||
|
13
|
13
74150-75H01-000 MOTOR ASSY |
74150-75H01-000 |
US $345.92 |
||
|
14
|
14
74135-82000-000 SCREW,MOTOR |
74135-82000-000 |
US $1.73 |
||
|
15
|
15
74187-77A00-000 LEVER,MODE |
74187-77A00-000 |
US $12.36 |
||
|
16
|
16
74180-77A00-000 LEVER,TEMP |
74180-77A00-000 |
US $20.24 |
||
|
17
|
17
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
18
|
18
74185-77A00-000 LEVER,TEMP |
74185-77A00-000 |
US $7.99 |
||
|
19
|
19
74151-50F00-000 CABLE |
74151-50F00-000 |
from US $2.21 |
||
|
20
|
20
74171-77A00-000 DOOR ASSY,TEMP |
74171-77A00-000 |
US $16.56 |
||
|
21
|
21
74172-75H00-000 DOOR,MODE |
74172-75H00-000 |
US $38.27 |
||
|
22
|
22
03112-05123-000
Screw
|
03112-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
23
|
23
74812-82030-000 GROMMET,HTR |
74812-82030-000 |
US $13.60 |
||
|
24
|
24
09113-06006-000 BOLT(6X20) |
09113-06006-000 |
US $12.50 |
||
| replacement | |||||
|
24
|
24
09113-06014-000 BOLT(6X20) |
09113-06014-000 |
US $14.40 |
||
|
25
|
25
09159-06081-000 NUT |
09159-06081-000 |
from US $1.31 |
||
|
26
|
26
74400-84G03-5PK LEVER ASSY,HTR CONTTYPE 6,TYPE 7 |
74400-84G03-5PK |
US $182.90 |
||
|
27
|
27
74531-84G00-000 BULB,HTR CONT PNLTYPE 6,TYPE 7 |
74531-84G00-000 |
from US $7.90 |
||
|
28
|
28
95521-84G00-000 KNOB,A/C SWTYPE 6,TYPE 7 |
95521-84G00-000 |
from US $2.43 |
||
|
29
|
29
95522-84G00-000 INDICATOR,A/C SWTYPE 6,TYPE 7 |
95522-84G00-000 |
US $1.52 |
||
|
30
|
30
74462-84G01-000 KNOB,FAN SWITCHTYPE 6,TYPE 7 |
74462-84G01-000 |
US $5.33 |
||
|
31
|
31
74463-84G00-000 KNOB,FRESH AIRTYPE 6,TYPE 7 |
74463-84G00-000 |
US $2.43 |
||
|
32
|
32
74400-70J00-5PK
レバーアッシ,ヒータコントロール(ブラック)
TYPE 8 |
74400-70J00-5PK |
— | ||
| replacement | |||||
|
32
|
32
74400-70J01-5PK LEVER ASSY,HTR CONTTYPE 8 |
74400-70J01-5PK |
US $166.34 |
||
|
33
|
33
74531-84G00-000 BULB,HTR CONT PNLTYPE 8 |
74531-84G00-000 |
from US $7.90 |
||
|
34
|
34
95521-84G00-000 KNOB,A/C SWTYPE 8 |
95521-84G00-000 |
from US $2.43 |
||
|
35
|
35
95522-84G00-000 INDICATOR,A/C SWTYPE 8 |
95522-84G00-000 |
US $1.52 |
||
|
36
|
36
74463-84G00-000 KNOB,FRESH AIRTYPE 8 |
74463-84G00-000 |
US $2.43 |
||
|
37
|
37
09136-05060-000 SCREW(5X16) |
09136-05060-000 |
from US $0.81 |
||
|
38
|
38
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
38
|
38
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
39
|
39
74451-82G00-000 CABLE,MODE CONTROL L:465 |
74451-82G00-000 |
US $8.50 |
||
|
40
|
40
74452-82G00-000 CABLE,TEMP CONTROL L:430 |
74452-82G00-000 |
US $8.50 |
||
|
41
|
41
74453-82G00-000 CABLE,F&R CONTROL L:485 |
74453-82G00-000 |
US $8.50 |
||
