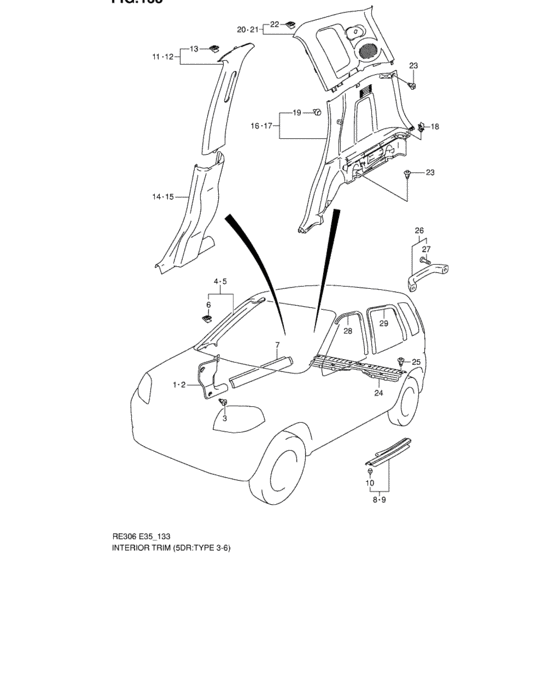

Interior trim (5DR:TYPE 3,4,5,6,7,8) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76120-74G01-P4Z TRIM,DASH SIDE,R |
76120-74G01-P4Z |
US $21.16 |
||
|
2
|
2
76130-74G00-P4Z TRIM,DASH SIDE,L |
76130-74G00-P4Z |
US $21.16 |
||
|
3
|
3
09409-07308-P4Z CLIP(GRAY) |
09409-07308-P4Z |
from US $1.08 |
||
|
4
|
4
76140-74G01-6GS
TRIM,FR PILLAR INNER,R
TYPE 3 |
76140-74G01-6GS |
— | ||
|
4
|
4
76140-80G01-6GS TRIM,FR PILLAR INNER,RTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
76140-80G01-6GS |
US $31.28 |
||
|
5
|
5
76150-74G00-6GS
Trim comp,fr pillar inner,l
TYPE 3 |
76150-74G00-6GS |
— | ||
|
5
|
5
76150-80G01-6GS TRIM,FR PILLAR INNER,LTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
76150-80G01-6GS |
US $31.28 |
||
|
6
|
6
09409-10308-000 CLIPTYPE 3 |
09409-10308-000 |
from US $1.60 |
||
|
6
|
6
09409-06324-000 CLIPTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09409-06324-000 |
from US $1.12 |
||
|
7
|
7
76161-77G00-P4Z SCUFF,SIDE SILL |
76161-77G00-P4Z |
US $20.61 |
||
|
8
|
8
76181-75G00-P4Z SCUFF,SIDE SILL RR,R |
76181-75G00-P4Z |
US $23.74 |
||
|
9
|
9
76191-75G00-P4Z SCUFF,SIDE SILL RR,L |
76191-75G00-P4Z |
US $23.74 |
||
|
10
|
10
09409-08331-000 CLIP |
09409-08331-000 |
from US $1.28 |
||
|
11
|
11
76232-75G10-6GS
TRIM,CTR PLR INR UPR,R
|
76232-75G10-6GS |
— | ||
|
12
|
12
76242-75G10-6GS
TRIM,CTR PLR INR UPR,L
|
76242-75G10-6GS |
— | ||
|
13
|
13
09409-10308-000 CLIP |
09409-10308-000 |
from US $1.60 |
||
|
14
|
14
76230-75G01-P4Z
トリム,センタピラーロア,ライト(グレー)
|
76230-75G01-P4Z |
— | ||
| replacement | |||||
|
14
|
14
76230-75G02-P4Z TRIM,CTR PILLAR LWR,R |
76230-75G02-P4Z |
US $37.90 |
||
|
15
|
15
76240-75G01-P4Z
トリム,センタピラーロア,レフト(グレー)
|
76240-75G01-P4Z |
— | ||
| replacement | |||||
|
15
|
15
76240-75G02-P4Z TRIM,CTR PILLAR LWR,L |
76240-75G02-P4Z |
US $37.90 |
||
|
16
|
16
76210-75G01-P4Z
トリム,クォータインナ,ライト(グレー)
|
76210-75G01-P4Z |
— | ||
| replacement | |||||
|
16
|
16
76210-75G02-P4Z TRIM,QTR INNER,R |
76210-75G02-P4Z |
US $128.80 |
||
|
17
|
17
76220-75G01-P4Z
トリム,クォータインナ,レフト(グレー)
|
76220-75G01-P4Z |
— | ||
| replacement | |||||
|
17
|
17
76220-75G02-P4Z TRIM,QTR INNER,L |
76220-75G02-P4Z |
US $128.80 |
||
|
18
|
18
76215-74G00-000 HOLDER,LUG LID |
76215-74G00-000 |
from US $1.60 |
||
|
19
|
19
76216-76F20-000 CLIP,QTR TRIMTYPE 3,TYPE 4,TYPE 5 |
76216-76F20-000 |
from US $1.89 |
||
|
20
|
20
76251-75G00-6GS TRIM,QTR WINDOW,R |
76251-75G00-6GS |
US $73.60 |
||
|
21
|
21
76261-75G00-6GS TRIM,QTR WINDOW,L |
76261-75G00-6GS |
US $152 |
||
|
22
|
22
09409-10308-000 CLIP |
09409-10308-000 |
from US $1.60 |
||
|
23
|
23
09409-07308-P4Z CLIP(GRAY) |
09409-07308-P4Z |
from US $1.08 |
||
|
24
|
24
76271-74G00-P4Z TRIM,TAIL END MEMBER |
76271-74G00-P4Z |
US $35.88 |
||
|
25
|
25
09409-07308-P4Z CLIP(GRAY) |
09409-07308-P4Z |
from US $1.08 |
||
|
26
|
26
76400-70820-6GS GRIP,ASST |
76400-70820-6GS |
from US $11.88 |
||
|
27
|
27
09139-06104-000 SCREW(6X26) |
09139-06104-000 |
US $14 |
||
|
28
|
28
76291-75G00-6GS
TRIM,FR DOOR OPENING
TYPE 3 |
76291-75G00-6GS |
— | ||
| replacement | |||||
|
28
|
28
76291-75G01-6GS
TRIM,FR DOOR OPENING
TYPE 3 |
76291-75G01-6GS |
— | ||
|
28
|
28
76291-83G00-6GS TRIM,FR DOOR OPENINGTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
76291-83G00-6GS |
US $19.87 |
||
|
29
|
29
76292-75G00-6GS
トリム,リヤドアオープニング(グレー)
|
76292-75G00-6GS |
— | ||
| replacement | |||||
|
29
|
29
76292-82G00-6GS TRIM,RR DOOR OPENING |
76292-82G00-6GS |
US $23.37 |
||
