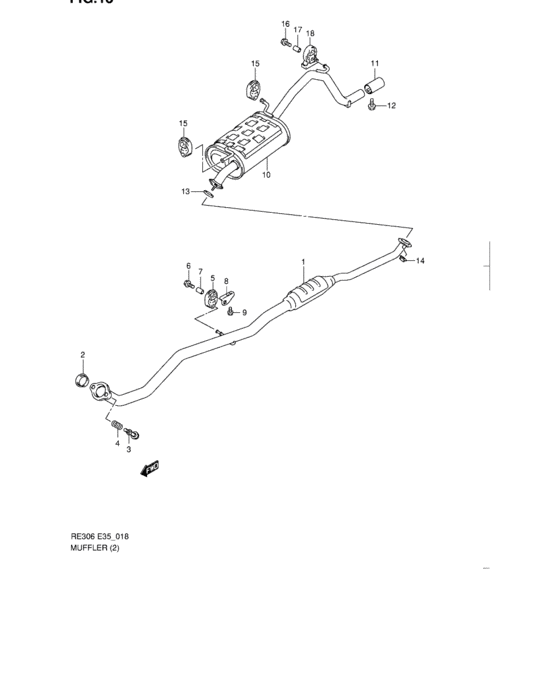

Muffler (TYPE 4,5,6,7,8) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-83G00-000
PIPE,EXHAUST
TYPE 4,TYPE 5,TYPE 6,TYPE 7 |
14190-83G00-000 |
— | ||
| replacement | |||||
|
1
|
1
14190-83G01-000 Pipe,exhTYPE 4,TYPE 5,TYPE 6,TYPE 7 |
14190-83G01-000 |
US $301.76 |
||
|
1
|
1
14190-83G20-000
パイプ,エキゾースト
TYPE 8 |
14190-83G20-000 |
— | ||
| replacements | |||||
|
1
|
1
14190-83G21-000
PIPE,EXHAUST
TYPE 8 |
14190-83G21-000 |
— | ||
|
1
|
1
14190-83G22-000 Pipe,exhTYPE 8 |
14190-83G22-000 |
US $281.52 |
||
|
2
|
2
14183-75FC0-000 RING,SEAL EXH PIPE |
14183-75FC0-000 |
from US $14.09 |
||
|
3
|
3
09119-10039-000
Bolt
|
09119-10039-000 |
— | ||
| replacement | |||||
|
3
|
3
14493-76G01-000 BOLT,EXH PIPE |
14493-76G01-000 |
from US $3.04 |
||
|
4
|
4
14492-82001-000 SPRING,EXH PIPETYPE 4 |
14492-82001-000 |
from US $1.28 |
||
|
4
|
4
14492-83G00-000
Spring,exh pipe
TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
14492-83G00-000 |
— | ||
| replacement | |||||
|
4
|
4
14492-83G01-000 SPRING,EXH PIPETYPE 5,TYPE 6,TYPE 7,TYPE 8 |
14492-83G01-000 |
US $5.81 |
||
|
5
|
5
14281-75F00-000
Mounting
|
14281-75F00-000 |
— | ||
| replacement | |||||
|
5
|
5
14281-75F01-000 MOUNTING,MUF |
14281-75F01-000 |
from US $4.88 |
||
|
6
|
6
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
6
|
6
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
7
|
7
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
7
|
7
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.04 |
||
|
8
|
8
14284-76G10-000
ブラケット,エキゾーストパイプ
|
14284-76G10-000 |
— | ||
| replacement | |||||
|
8
|
8
14284-73H00-000 BRACKET,EXH PIPE |
14284-73H00-000 |
US $9.02 |
||
|
9
|
9
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
10
|
10
14300-83GS0-000
マフラ
TYPE 4,TYPE 5,TYPE 6,TYPE 7 |
14300-83GS0-000 |
— | ||
| replacement | |||||
|
10
|
10
14300-83GR1-000 MUFFLERTYPE 4,TYPE 5,TYPE 6,TYPE 7 |
14300-83GR1-000 |
US $287.04 |
||
|
10
|
10
14300-83GR0-000
マフラ
TYPE 8 |
14300-83GR0-000 |
— | ||
| replacement | |||||
|
10
|
10
14300-83GR1-000 MUFFLERTYPE 8 |
14300-83GR1-000 |
US $287.04 |
||
|
11
|
11
14630-78G51-000 PIPE,MUFFLER TAIL |
14630-78G51-000 |
US $48.58 |
||
|
12
|
12
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
13
|
13
14182-60B00-000
GASKET,EXH PIPE
|
14182-60B00-000 |
— | ||
| replacement | |||||
|
13
|
13
14182-60B01-000 Gasket,exh Pipe |
14182-60B01-000 |
from US $3.34 |
||
|
14
|
14
09159-10049-000 Nut |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
14
|
14
09159-10102-000 NUT |
09159-10102-000 |
from US $1.28 |
||
|
15
|
15
14281-75F00-000
Mounting
|
14281-75F00-000 |
— | ||
| replacement | |||||
|
15
|
15
14281-75F01-000 MOUNTING,MUF |
14281-75F01-000 |
from US $4.88 |
||
|
16
|
16
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
16
|
16
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
17
|
17
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
17
|
17
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.04 |
||
|
18
|
18
14281-75F00-000
Mounting
|
14281-75F00-000 |
— | ||
| replacement | |||||
|
18
|
18
14281-75F01-000 MOUNTING,MUF |
14281-75F01-000 |
from US $4.88 |
||
|
18
|
18
14281-58J01-000
Mounting,muffler
HN22S-775257~ |
14281-58J01-000 |
— | ||
| replacement | |||||
|
18
|
18
14281-68K00-000 MOUNTING,MUFHN22S-775257~ |
14281-68K00-000 |
from US $11.77 |
||
