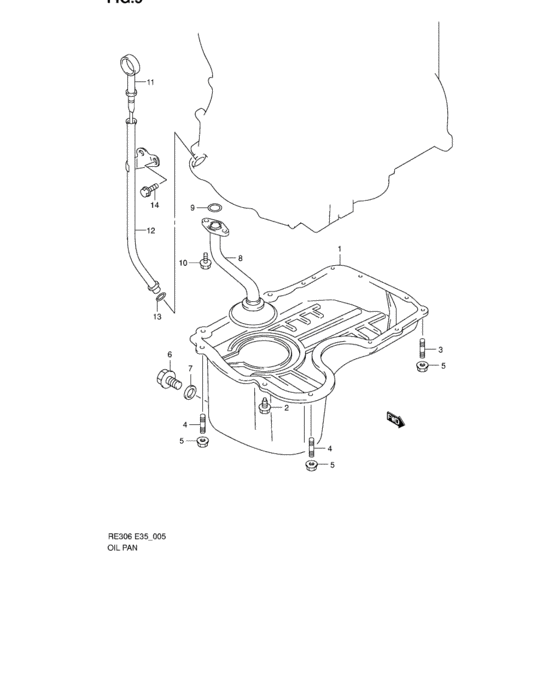

Oil pan (OIL PAN) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-73G60-000
PAN,OIL
|
11510-73G60-000 |
— | ||
|
1
|
1
11510-83G02-000 PAN,OILHN21S-110027~,HN21S-634282~,HN22S-700001~ |
11510-83G02-000 |
US $135.42 |
||
|
2
|
2
09117-06062-000 BOLT(6X16) |
09117-06062-000 |
US $15.80 |
||
|
3
|
3
09108-06113-000 BOLT,STUD |
09108-06113-000 |
US $13.60 |
||
|
4
|
4
09108-06113-000 BOLT,STUD |
09108-06113-000 |
US $13.60 |
||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
09247-14027-000 PLUG(14X11.5)Plug, oil drain |
09247-14027-000 |
from US $1.89 |
||
| replacement | |||||
|
6
|
6
09247-14044-000 DRAIN PLUG (M14x1.5) |
09247-14044-000 |
from US $1.67 |
||
|
7
|
7
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union |
09168-14015-000 |
from US $1.04 |
||
|
8
|
8
16520-75F00-000 STRAINER,OIL PUMP |
16520-75F00-000 |
US $68.08 |
||
|
9
|
9
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe |
09280-16005-000 |
from US $2.27 |
||
|
10
|
10
01570-06163-000
Bolt
|
01570-06163-000 |
— | ||
| replacements | |||||
|
10
|
10
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
|
10
|
10
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.96 |
||
|
11
|
11
16910-73G02-000
GAUGE,OIL LEVEL
|
16910-73G02-000 |
— | ||
|
11
|
11
16910-83G50-000 GAUGE,OIL LEVELHN21S-110027~,HN21S-634282~,HN22S-700001~ |
16910-83G50-000 |
US $16.67 |
||
|
12
|
12
16930-84G03-000 GUIDE,OIL LEVEL GAUGE |
16930-84G03-000 |
US $16.74 |
||
|
13
|
13
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
|
14
|
14
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
