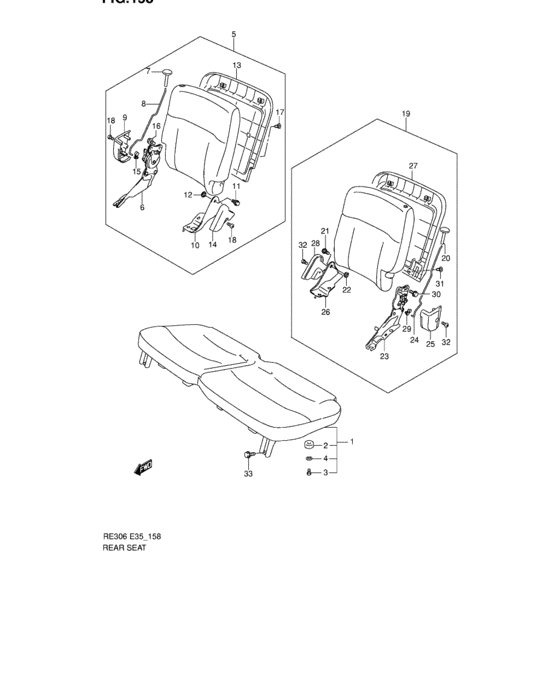

Rear seat (3DR) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-75G00-M2J
Cushioh assy, rear
TYPE 1 |
87101-75G00-M2J |
— | ||
|
1
|
1
87101-75G00-CK2
Cushion assy,rr(gray)
TYPE 2 |
87101-75G00-CK2 |
— | ||
|
2
|
2
87291-60A10-000 CUSHION,RR SEAT |
87291-60A10-000 |
US $1.95 |
||
|
3
|
3
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
3
|
3
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
4
|
4
08322-01053-000
Washer
|
08322-01053-000 |
— | ||
| replacements | |||||
|
4
|
4
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
4
|
4
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
5
|
5
87301-74G00-M2J
Back assy, rear rh
TYPE 1 |
87301-74G00-M2J |
— | ||
|
5
|
5
87301-74G00-CK2
Back assy, rear rh
TYPE 2 |
87301-74G00-CK2 |
— | ||
|
6
|
6
87210-74G00-000 RECLINING ASSY,RR,RReclining assy, rr rh |
87210-74G00-000 |
US $120.70 |
||
|
7
|
7
87211-74G00-T01
Knob, rear back (gray)
|
87211-74G00-T01 |
— | ||
| replacement | |||||
|
7
|
7
87211-74G10-T01 KNOB,RR BACK |
87211-74G10-T01 |
from US $3.96 |
||
|
8
|
8
87215-74G00-000
Rod, rear reclining rh
|
87215-74G00-000 |
— | ||
| replacement | |||||
|
8
|
8
87215-74G01-000
ROD,RR RCLNG,R
|
87215-74G01-000 |
— | ||
|
9
|
9
87221-74G00-V12
COVER,RECL OUTSIDE,R
TYPE 1 |
87221-74G00-V12 |
— | ||
|
9
|
9
87221-74G00-T01
COVER,RECL OUTSIDE,R
TYPE 2 |
87221-74G00-T01 |
— | ||
|
10
|
10
87230-74G00-000
HINGE,RR INSIDE,R
|
87230-74G00-000 |
— | ||
|
11
|
11
87239-74G00-000 BOLT,HINGE |
87239-74G00-000 |
US $2.83 |
||
|
12
|
12
87299-74G00-000
Bush, hinge
|
87299-74G00-000 |
— | ||
| replacement | |||||
|
12
|
12
87299-74G10-000 BUSH,HINGE |
87299-74G10-000 |
US $3.35 |
||
|
13
|
13
87390-74G00-V12
BOARD,RR BACK,R
TYPE 1 |
87390-74G00-V12 |
— | ||
|
13
|
13
87390-74G00-T01
ボード,リヤバック,ライト(グレー)
TYPE 2 |
87390-74G00-T01 |
— | ||
|
14
|
14
87423-74G00-V12
Cover, hinge outside rh (gray)
TYPE 1 |
87423-74G00-V12 |
— | ||
|
14
|
14
87423-74G00-T01
Cover,hinge outside,r
TYPE 2 |
87423-74G00-T01 |
— | ||
|
15
|
15
09403-04306-000 CLAMPConnector, choke rod |
09403-04306-000 |
US $20.20 |
||
|
16
|
16
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
17
|
17
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
17
|
17
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
18
|
18
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
18
|
18
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
18
|
18
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
19
|
19
87302-74G00-M2J
Back assy, rr lh
TYPE 1 |
87302-74G00-M2J |
— | ||
|
19
|
19
87302-74G00-CK2
Back assy, rr lh
TYPE 2 |
87302-74G00-CK2 |
— | ||
|
20
|
20
87211-74G00-T01
Knob, rear back (gray)
|
87211-74G00-T01 |
— | ||
| replacement | |||||
|
20
|
20
87211-74G10-T01 KNOB,RR BACK |
87211-74G10-T01 |
from US $3.96 |
||
|
21
|
21
87239-74G00-000 BOLT,HINGE |
87239-74G00-000 |
US $2.83 |
||
|
22
|
22
87299-74G00-000
Bush, hinge
|
87299-74G00-000 |
— | ||
| replacement | |||||
|
22
|
22
87299-74G10-000 BUSH,HINGE |
87299-74G10-000 |
US $3.35 |
||
|
23
|
23
87710-74G00-000 RECLINING ASSY,RR,LReclining assy, rr lh |
87710-74G00-000 |
US $120.70 |
||
|
24
|
24
87715-74G00-000
Rod, rear reclining lh
|
87715-74G00-000 |
— | ||
| replacement | |||||
|
24
|
24
87715-74G01-000
ROD,RR RCLNG,L
|
87715-74G01-000 |
— | ||
|
25
|
25
87721-74G00-V12
COVER,RECL OUTSIDE,L
TYPE 1 |
87721-74G00-V12 |
— | ||
|
25
|
25
87721-74G00-T01
COVER,RECL OUTSIDE,L
TYPE 2 |
87721-74G00-T01 |
— | ||
|
26
|
26
87730-74G00-000
HINGE,RR INSIDE,L
|
87730-74G00-000 |
— | ||
|
27
|
27
87890-74G00-V12
BOARD,RR BACK,L
TYPE 1 |
87890-74G00-V12 |
— | ||
|
27
|
27
87890-74G00-T01
BOARD,RR BACK,L
TYPE 2 |
87890-74G00-T01 |
— | ||
|
28
|
28
87923-74G00-V12
Cover, hinge outside lh (gray)
TYPE 1 |
87923-74G00-V12 |
— | ||
|
28
|
28
87923-74G00-T01
Cover,hinge outside,l
TYPE 2 |
87923-74G00-T01 |
— | ||
|
29
|
29
09403-04306-000 CLAMPConnector, choke rod |
09403-04306-000 |
US $20.20 |
||
|
30
|
30
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
30
|
30
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
31
|
31
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
31
|
31
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
31
|
31
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
32
|
32
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
32
|
32
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
32
|
32
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
33
|
33
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
33
|
33
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
