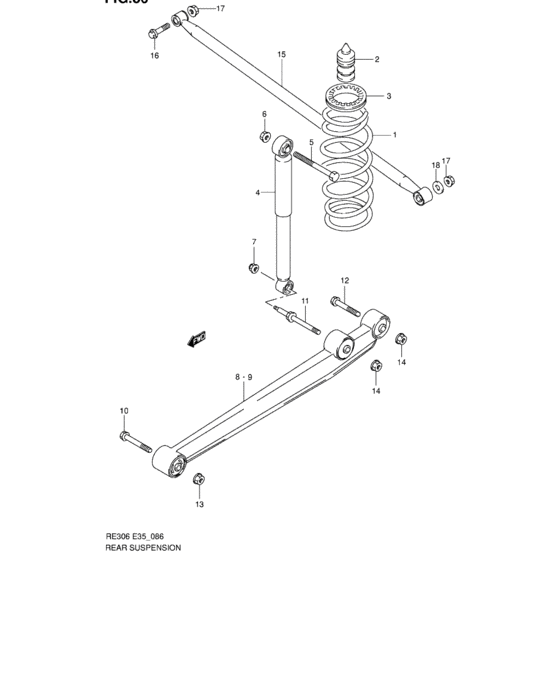

Rear suspension (REAR SUSPENSION) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41311-74G01-000 SPRING,REAR COILTYPE 1,TYPE 2 |
41311-74G01-000 |
US $88.32 |
||
|
1
|
1
41311-74G10-000 SPRING,REAR COILTYPE 3,TYPE 4,TYPE 5 |
41311-74G10-000 |
US $74.70 |
||
|
1
|
1
41311-74G11-000 SPRING,REAR COILTYPE 6,TYPE 7,TYPE 8 |
41311-74G11-000 |
US $88.32 |
||
|
2
|
2
42251-75F90-000 STOPPER,RR BUMP |
42251-75F90-000 |
US $21.34 |
||
|
3
|
3
41341-50A00-000 SEAT,REAR SPRING UPPERTYPE 1,TYPE 2,TYPE 3 |
41341-50A00-000 |
from US $11.19 |
||
|
3
|
3
41341-79A00-000 SEAT,REAR SPRING UPPERTYPE 4,TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
41341-79A00-000 |
from US $6.10 |
||
|
4
|
4
41800-74G01-000
Absorber assy, rear shock
TYPE 1,TYPE 2 |
41800-74G01-000 |
— | ||
| replacement | |||||
|
4
|
4
41800-74G03-000 ABSORBER ASSY,RR SHOCKTYPE 1,TYPE 2 |
41800-74G03-000 |
US $241.60 |
||
|
4
|
4
41800-74G10-000
ABSORBER ASSY,RR SHOCK
TYPE 3,TYPE 4,TYPE 5 |
41800-74G10-000 |
— | ||
| replacement | |||||
|
4
|
4
41800-74G21-000 ABSORBER ASSY,RR SHOCKTYPE 3,TYPE 4,TYPE 5 |
41800-74G21-000 |
US $111.87 |
||
|
4
|
4
41800-74G11-000
ABSORBER ASSY,RR SHOCK
TYPE 6,TYPE 7,TYPE 8 |
41800-74G11-000 |
— | ||
| replacement | |||||
|
4
|
4
41800-74G13-000 ABSORBER ASSY,RR SHOCKTYPE 6,TYPE 7,TYPE 8 |
41800-74G13-000 |
US $110.03 |
||
|
5
|
5
41981-76G01-000 BOLT,RR SHK ABSORBER UPR |
41981-76G01-000 |
US $8.64 |
||
|
6
|
6
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
|
7
|
7
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
08316-10123-000
Nut
HN21S-110026~,HN21S-614880~,HN22S-700001~ |
08316-10123-000 |
— | ||
|
8
|
8
46201-84G00-000
アームアッシ,リヤトレーリング,ライト
TYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
46201-84G00-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0620C-000 SCREWTYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
02162-0620C-000 |
from US $0.83 |
||
|
8
|
8
46200-70H00-000 ARM ASSY,RR TRAILINGTYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
46200-70H00-000 |
from US $104.92 |
||
|
8
|
8
02162-06203-000
Bolt
TYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
02162-06203-000 |
— | ||
|
8
|
8
46201-70H00-000 ARM ASSYREAR TRAILINGTYPE 6,TYPE 7,TYPE 8 |
46201-70H00-000 |
US $104.92 |
||
| replacements | |||||
|
8
|
8
02162-0620C-000 SCREWTYPE 6,TYPE 7,TYPE 8 |
02162-0620C-000 |
from US $0.83 |
||
|
8
|
8
46200-70H00-000 ARM ASSY,RR TRAILINGTYPE 6,TYPE 7,TYPE 8 |
46200-70H00-000 |
from US $104.92 |
||
|
8
|
8
02162-06203-000
Bolt
TYPE 6,TYPE 7,TYPE 8 |
02162-06203-000 |
— | ||
|
9
|
9
46202-84G00-000
アームアッシ,リヤトレーリング,レフト
TYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
46202-84G00-000 |
— | ||
| replacements | |||||
|
9
|
9
02162-0620C-000 SCREWTYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
02162-0620C-000 |
from US $0.83 |
||
|
9
|
9
46200-70H00-000 ARM ASSY,RR TRAILINGTYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
46200-70H00-000 |
from US $104.92 |
||
|
9
|
9
02162-06203-000
Bolt
TYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5 |
02162-06203-000 |
— | ||
|
9
|
9
46202-70H00-000 ARM ASSYREAR TRAILINGTYPE 6,TYPE 7,TYPE 8 |
46202-70H00-000 |
US $104.92 |
||
| replacements | |||||
|
9
|
9
02162-0620C-000 SCREWTYPE 6,TYPE 7,TYPE 8 |
02162-0620C-000 |
from US $0.83 |
||
|
9
|
9
46200-70H00-000 ARM ASSY,RR TRAILINGTYPE 6,TYPE 7,TYPE 8 |
46200-70H00-000 |
from US $104.92 |
||
|
9
|
9
02162-06203-000
Bolt
TYPE 6,TYPE 7,TYPE 8 |
02162-06203-000 |
— | ||
|
10
|
10
09103-12044-000 BOLT(12X87) |
09103-12044-000 |
from US $3.02 |
||
|
11
|
11
46291-76G00-000
Bolt, trailing arm center
->46291-76G01,USED WITH 08316-10123 |
46291-76G00-000 |
— | ||
| replacements | |||||
|
11
|
11
08316-1012A-000 NUT->46291-76G01,USED WITH 08316-10123 |
08316-1012A-000 |
from US $0.96 |
||
|
11
|
11
46291-74G00-000 BOLT,TRAILING ARM CTR->46291-76G01,USED WITH 08316-10123 |
46291-74G00-000 |
US $6.11 |
||
|
11
|
11
08316-10123-000
Nut
->46291-76G01,USED WITH 08316-10123 |
08316-10123-000 |
— | ||
|
11
|
11
46291-76G01-000
ボルト,トレーリングアーム,センタ
HN21S-110026~,HN21S-614880~,HN22S-700001~ |
46291-76G01-000 |
— | ||
| replacement | |||||
|
11
|
11
46291-74G00-000 BOLT,TRAILING ARM CTRHN21S-110026~,HN21S-614880~,HN22S-700001~ |
46291-74G00-000 |
US $6.11 |
||
|
12
|
12
09103-12064-000
ボルト,12X80
|
09103-12064-000 |
— | ||
| replacement | |||||
|
12
|
12
09103-12068-000 BOLT(12X80) |
09103-12068-000 |
from US $3.20 |
||
|
13
|
13
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
|
14
|
14
09159-12025-000 NUTTYPE 1,TYPE 2,TYPE 3,TYPE 4,TYPE 5,TYPE 6 |
09159-12025-000 |
from US $0.77 |
||
|
14
|
14
46292-60J00-000
ナット
TYPE 7,TYPE 8 |
46292-60J00-000 |
— | ||
| replacement | |||||
|
14
|
14
09159-12068-000 NUTTYPE 7,TYPE 8 |
09159-12068-000 |
from US $1.49 |
||
|
15
|
15
46300-76GA0-000 ROD ASSY,LATERAL |
46300-76GA0-000 |
US $100.46 |
||
|
16
|
16
09103-12051-000 BOLT(12X50) |
09103-12051-000 |
from US $2.56 |
||
|
17
|
17
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
|
18
|
18
09164-12017-000 WASHER |
09164-12017-000 |
from US $1.44 |
||
