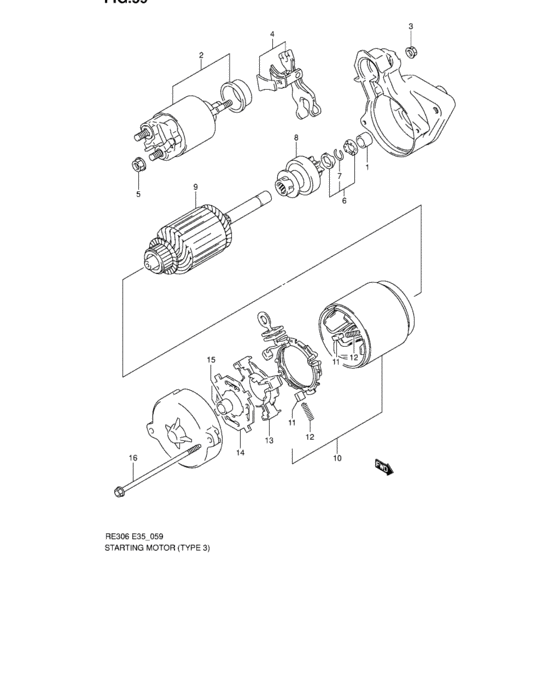

Starting motor (TYPE 3) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
31100-76G10-000 MOTOR ASSY,STARTING |
31100-76G10-000 |
US $668.80 |
||
|
1
|
1
31152-52A50-000 BEARING |
31152-52A50-000 |
from US $15.50 |
||
|
2
|
2
31220-51A10-000 SWITCH ASSY |
31220-51A10-000 |
from US $99.16 |
||
|
3
|
3
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
4
|
4
31191-85020-000 LEVER ASSY |
31191-85020-000 |
from US $9.27 |
||
|
5
|
5
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
31310-51A10-000 NUT,PINION STOP |
31310-51A10-000 |
from US $11.18 |
||
|
7
|
7
31312-51A10-000 RING,SNAP |
31312-51A10-000 |
from US $1.71 |
||
|
8
|
8
31320-70B20-000 CLUTCH ASSY |
31320-70B20-000 |
US $109.30 |
||
|
9
|
9
31311-80110-000 ARMATURE |
31311-80110-000 |
US $303.60 |
||
|
10
|
10
31110-77A00-000 YOKE ASSY |
31110-77A00-000 |
from US $143.87 |
||
|
11
|
11
31131-51A10-000 BRUSH |
31131-51A10-000 |
from US $5.36 |
||
|
12
|
12
31135-51A10-000 SPRING,BRUSH |
31135-51A10-000 |
from US $1.58 |
||
|
13
|
13
31173-51A10-000 HOLDER,BRUSH |
31173-51A10-000 |
from US $21.89 |
||
|
14
|
14
31175-51A10-000 INSULATOR |
31175-51A10-000 |
from US $1.46 |
||
|
15
|
15
31172-51A10-000 BUSH |
31172-51A10-000 |
from US $2.41 |
||
|
16
|
16
31281-51A10-000 Bolt |
31281-51A10-000 |
from US $2.57 |
||
