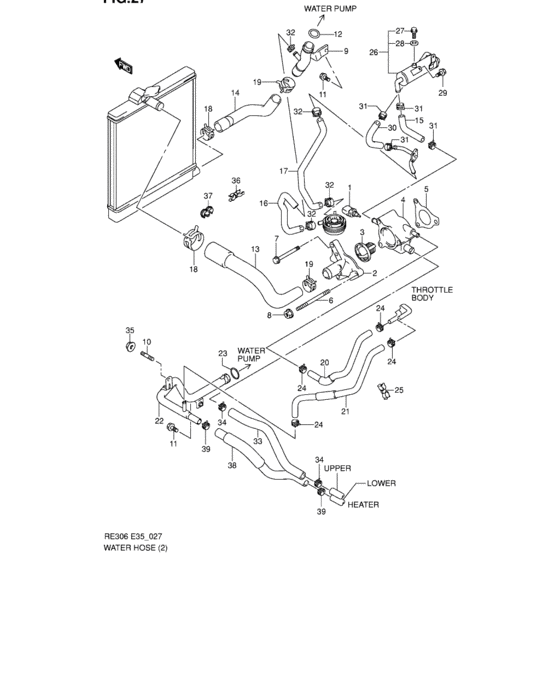

Water hose (TYPE 4,5,6,7,8) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-50G10-000 Sensor,water Temp |
13650-50G10-000 |
from US $54.07 |
||
|
2
|
2
17561-75F00-000
CAP,WATER THERMOSTAT
TYPE 4 |
17561-75F00-000 |
— | ||
|
2
|
2
17561-78F00-000 CAP,WTR THERMOTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
17561-78F00-000 |
US $22.63 |
||
|
3
|
3
17670-76G00-000 THERMOSTAT,WATER 82 DEGTYPE 4 |
17670-76G00-000 |
from US $24.32 |
||
|
3
|
3
17670-76G10-000
サーモスタット,ウォータ,88゜C
TYPE 5,TYPE 6,TYPE 7,TYPE 8 |
17670-76G10-000 |
— | ||
| replacement | |||||
|
3
|
3
17670-65G00-000 THERMOSTAT,WATER 88 DEGTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
17670-65G00-000 |
from US $24.75 |
||
|
4
|
4
17690-78GV0-000 CASE,THERMOSTAT |
17690-78GV0-000 |
US $163.20 |
||
|
5
|
5
17699-73G01-000 GASKET,THERMOSTAT CASEGasket, thermostat case |
17699-73G01-000 |
from US $3.74 |
||
|
6
|
6
01421-08753-000
Stud bolt
|
01421-08753-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0875A-000 BOLT,STUD |
01421-0875A-000 |
from US $6.49 |
||
|
7
|
7
01550-08803-000
Bolt (8x80)
|
01550-08803-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0880B-000 BoltBolt, muffler bracket & stand |
01550-0880B-000 |
from US $3.05 |
||
|
7
|
7
01550-0880A-000 Bolt |
01550-0880A-000 |
from US $1.67 |
||
|
8
|
8
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
9
|
9
17830-83G50-000 PIPE,WATER INLETTYPE 4 |
17830-83G50-000 |
US $26.13 |
||
|
9
|
9
17830-73H50-000 PIPE,WATER INLETTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
17830-73H50-000 |
US $32.57 |
||
|
10
|
10
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
10
|
10
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
11
|
11
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
11
|
11
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
12
|
12
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe |
17849-53E00-000 |
from US $1.52 |
||
|
13
|
13
17852-83G00-000 HOSE,RDTR INLETTYPE 4 |
17852-83G00-000 |
US $29.60 |
||
|
13
|
13
17852-73H01-000 HOSE,RDTR INLETTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
17852-73H01-000 |
US $12.95 |
||
|
14
|
14
17854-83G50-000
HOSE,RDTR OUTLET
TYPE 4 |
17854-83G50-000 |
— | ||
|
14
|
14
17854-73H50-000 HOSE,RDTR OUTLETTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
17854-73H50-000 |
US $15.79 |
||
|
15
|
15
17856-78G51-000 HOSE,THERMO TO TANK |
17856-78G51-000 |
US $10.64 |
||
|
16
|
16
17858-83G51-000 HOSE,O/C TO INLET PIPE |
17858-83G51-000 |
US $13.03 |
||
|
17
|
17
17859-83G51-000 HOSE,TURBO TO OIL COOLER |
17859-83G51-000 |
US $15.24 |
||
|
18
|
18
09401-30405-000 CLIP |
09401-30405-000 |
from US $3.04 |
||
|
19
|
19
09402-32502-000 CLAMPTYPE 4 |
09402-32502-000 |
from US $3.96 |
||
|
19
|
19
09401-30405-000 CLIPTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09401-30405-000 |
from US $3.04 |
||
|
20
|
20
17959-78G50-000 HOSE,WTR THROT INLETTYPE 4 |
17959-78G50-000 |
US $15.42 |
||
|
20
|
20
13491-73H50-000 HOSE,WTR TB INLETTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
13491-73H50-000 |
US $14.57 |
||
|
21
|
21
17958-78G50-000
Hose, throt outlet
|
17958-78G50-000 |
— | ||
| replacement | |||||
|
21
|
21
17958-78G51-000 HOSE,WTR THROT OUTLET |
17958-78G51-000 |
US $17.96 |
||
|
21
|
21
17958-78G51-000 HOSE,WTR THROT OUTLETHN22S-761841~ |
17958-78G51-000 |
US $17.96 |
||
|
22
|
22
17840-83G01-000 PIPE,HEATER OUTLET |
17840-83G01-000 |
US $51.52 |
||
|
23
|
23
17849-83G00-000 O-RING,HEATER OUTLET PIPE |
17849-83G00-000 |
from US $1.85 |
||
|
24
|
24
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.35 |
||
|
25
|
25
09408-00173-000 CLAMP |
09408-00173-000 |
US $26.90 |
||
|
26
|
26
17960-78G52-000
タンクアッシ,ターボウォータ
TYPE 4,->17960-78G53,USED WITH 14131-83G51 |
17960-78G52-000 |
— | ||
| replacement | |||||
|
26
|
26
17960-78G5V-000 TANK ASSY,TURBO WATERTYPE 4,->17960-78G53,USED WITH 14131-83G51 |
17960-78G5V-000 |
US $45.26 |
||
|
26
|
26
17960-78G53-000
タンクアッシ,ターボウォータ
TYPE 5 |
17960-78G53-000 |
— | ||
| replacement | |||||
|
26
|
26
17960-78G5V-000 TANK ASSY,TURBO WATERTYPE 5 |
17960-78G5V-000 |
US $45.26 |
||
|
26
|
26
17960-83H50-000 TANK ASSY,TURBO WATERTYPE 6,TYPE 7,TYPE 8 |
17960-83H50-000 |
US $44.16 |
||
|
27
|
27
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover |
17568-50F00-000 |
from US $2.08 |
||
|
28
|
28
09168-06026-000 GASKET(6.4X11.5X0.8) |
09168-06026-000 |
from US $0.91 |
||
|
29
|
29
01550-06123-000
Bolt
TYPE 4,TYPE 5 |
01550-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0612B-000 BoltBolt, clamp TYPE 4,TYPE 5 |
01550-0612B-000 |
from US $0.76 |
||
|
29
|
29
01550-0612A-000 BoltTYPE 4,TYPE 5 |
01550-0612A-000 |
from US $0.76 |
||
|
30
|
30
09356-90161-600 HOSE(9X16X600)L:600->80 |
09356-90161-600 |
from US $22.05 |
||
|
31
|
31
09401-14405-000 CLIP |
09401-14405-000 |
US $12.50 |
||
|
32
|
32
09401-14405-000 CLIP |
09401-14405-000 |
US $12.50 |
||
|
33
|
33
17871-78G11-000 HOSE,HTR INLET |
17871-78G11-000 |
US $11.67 |
||
|
34
|
34
09401-18403-000 CLIPClip, heater hose |
09401-18403-000 |
from US $1.53 |
||
|
35
|
35
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
35
|
35
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
36
|
36
09408-00173-000 CLAMPTYPE 4 |
09408-00173-000 |
US $26.90 |
||
|
37
|
37
09408-00201-000 CLAMPTYPE 5,TYPE 6,TYPE 7,TYPE 8 |
09408-00201-000 |
US $28.30 |
||
|
38
|
38
17872-78G11-000 HOSE,HTR OUTLETMT |
17872-78G11-000 |
US $18.40 |
||
|
39
|
39
09401-18403-000 CLIPClip, heater hose MT |
09401-18403-000 |
from US $1.53 |
||
