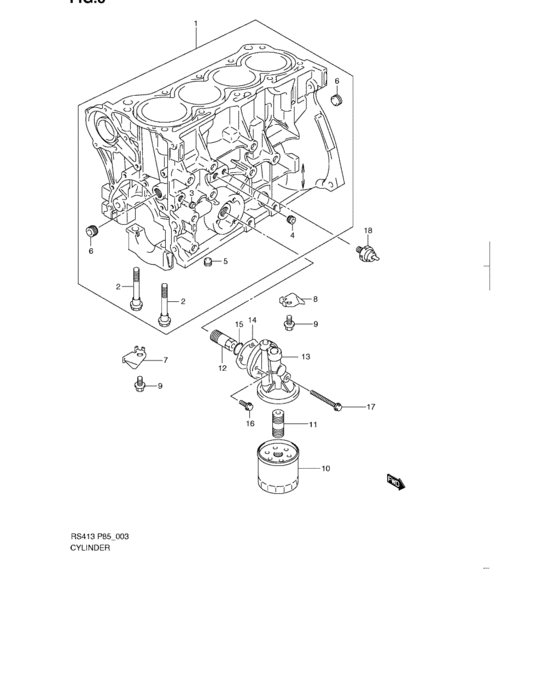

Cylinder (CYLINDER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- All regions
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-M63B2-100
Block assy, cylinder
|
11200-M63B2-100 |
— | ||
|
2
|
2
11260-50G01-000 BOLT,CRANK BEARING CAP |
11260-50G01-000 |
from US $1.98 |
||
|
3
|
3
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.76 |
||
|
4
|
4
09246-06002-000 PLUG |
09246-06002-000 |
US $0.63 |
||
| replacement | |||||
|
4
|
4
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
5
|
5
09246-06002-000 PLUG |
09246-06002-000 |
US $0.63 |
||
| replacement | |||||
|
5
|
5
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
6
|
6
09246-08002-000 PLUG |
09246-08002-000 |
from US $0.63 |
||
|
7
|
7
11213-72F01-000
Plate, breather front
|
11213-72F01-000 |
— | ||
| replacement | |||||
|
7
|
7
11213-72F02-000 PLATE,BREATHER FRONT |
11213-72F02-000 |
from US $2.70 |
||
|
8
|
8
11214-72F01-000 PLATE,BREATHER REAR |
11214-72F01-000 |
from US $2.66 |
||
|
9
|
9
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
10
|
10
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil |
16510-82703-000 |
from US $14.38 |
||
|
11
|
11
11241-69G01-000
STAND,OIL FILTER
|
11241-69G01-000 |
— | ||
| replacement | |||||
|
11
|
11
11241-69G02-000 STAND,OIL FILTER |
11241-69G02-000 |
from US $12.46 |
||
|
12
|
12
11241-85400-000 STAND,OIL FILTER CYL |
11241-85400-000 |
US $7.04 |
||
|
13
|
13
16530-60G01-000 CASE,OIL FILTER |
16530-60G01-000 |
US $59.62 |
||
|
14
|
14
16539-76001-000 GASKET,OIL ADAPTER CASE |
16539-76001-000 |
US $4.26 |
||
|
15
|
15
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe |
09280-16005-000 |
from US $2.27 |
||
|
16
|
16
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
17
|
17
01550-0675A-000 Bolt |
01550-0675A-000 |
US $1.12 |
||
|
18
|
18
37820-82002-000
Switch assy,oil press
|
37820-82002-000 |
— | ||
| replacement | |||||
|
18
|
18
37820-820P0-000 SWITCH ASSY,OIL PRESSURE |
37820-820P0-000 |
from US $12.67 |
||
