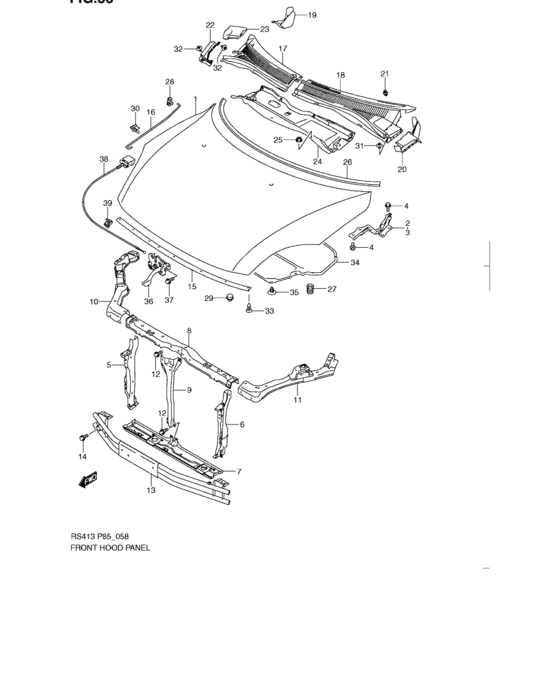

Front hood panel (FRONT HOOD PANEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- All regions
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-M75J0-000 Panel assy, front hood |
57300-M75J0-000 |
US $234.41 |
||
|
2
|
2
57410-M75J0-000
Hinge, front hood rh
|
57410-M75J0-000 |
— | ||
|
3
|
3
57420-M75J0-000
Hinge, front hood lh
|
57420-M75J0-000 |
— | ||
|
4
|
4
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
58110-M74K0-000
Brace, lamp support rh
|
58110-M74K0-000 |
— | ||
|
6
|
6
58120-M74K0-000
Brace, lamp support lh
|
58120-M74K0-000 |
— | ||
|
7
|
7
58210-M75J0-000
Member, rdtr support lower
|
58210-M75J0-000 |
— | ||
|
8
|
8
58230-M75J0-100
Member, hood lock
|
58230-M75J0-100 |
— | ||
|
9
|
9
58241-M75J0-000
Brace, hood lock
|
58241-M75J0-000 |
— | ||
|
10
|
10
58250-M75J0-000
Member, lamp support rh
|
58250-M75J0-000 |
— | ||
|
11
|
11
58260-M75J0-000
Member, lamp support lh
|
58260-M75J0-000 |
— | ||
|
12
|
12
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
13
|
13
58270-M75J0-000
Member, fr bumper upper
|
58270-M75J0-000 |
— | ||
|
14
|
14
01551-0820A-000 Bolt |
01551-0820A-000 |
from US $0.96 |
||
|
15
|
15
72361-M63J0-000
Seal, hood front
|
72361-M63J0-000 |
— | ||
|
16
|
16
72311-M63J0-000
Stay, fr hood
|
72311-M63J0-000 |
— | ||
|
19
|
19
72333-M63J0-000
Cover, rh
|
72333-M63J0-000 |
— | ||
|
20
|
20
72343-M63J0-000
Cover, lh
|
72343-M63J0-000 |
— | ||
|
21
|
21
77553-65D00-000 CLIP,SPLASH GUARDRH:2PCS,LH:3PCS |
77553-65D00-000 |
from US $2.08 |
||
|
24
|
24
72380-M75J0-000
Panel, fr cowl upper
|
72380-M75J0-000 |
— | ||
|
25
|
25
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
26
|
26
72362-79J00-000
Seal,hood rear
|
72362-79J00-000 |
— | ||
| replacement | |||||
|
26
|
26
72362-54L00-000 SEAL,HOOD RR |
72362-54L00-000 |
from US $18.86 |
||
|
27
|
27
72372-M80E0-000
Cushion
|
72372-M80E0-000 |
— | ||
|
28
|
28
09209-M0900-700
Linkage
|
09209-M0900-700 |
— | ||
|
29
|
29
09321-M1002-300
Cushion
|
09321-M1002-300 |
— | ||
|
30
|
30
09403-07307-5PK CLAMP |
09403-07307-5PK |
from US $1.85 |
||
|
33
|
33
09409-M1030-400
Clip
|
09409-M1030-400 |
— | ||
|
34
|
34
72440-M75J0-000
Silencer, fr hood
|
72440-M75J0-000 |
— | ||
|
35
|
35
09409-06325-000 CLIP |
09409-06325-000 |
from US $1.28 |
||
|
36
|
36
82110-M75J0-000
Latch, hood
|
82110-M75J0-000 |
— | ||
|
37
|
37
09138-06049-000 BOLT(6X12) |
09138-06049-000 |
US $1.12 |
||
|
38
|
38
82160-M75J0-000
Cable hood latch release
|
82160-M75J0-000 |
— | ||
|
39
|
39
76238-M70F0-000
Clamp, trunk lid opener cable
|
76238-M70F0-000 |
— | ||
