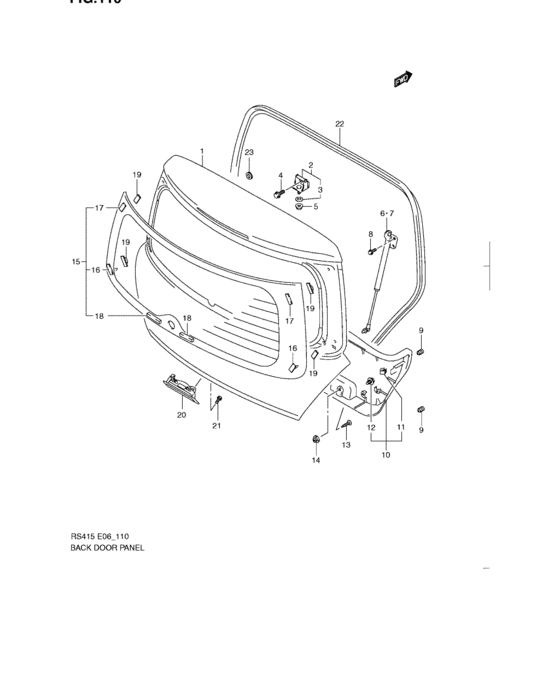

Back door panel (BACK DOOR PANEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Africa
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-63J23-000 PANEL ASSY,BACK DOOR |
69100-63J23-000 |
from US $395.30 |
||
|
2
|
2
69510-54G00-000
Hinge,door
|
69510-54G00-000 |
— | ||
| replacement | |||||
|
2
|
2
69510-54G10-000 HINGE,DOOR |
69510-54G10-000 |
US $29.81 |
||
|
3
|
3
69571-76G00-000 PACKING,BACK DR HNG |
69571-76G00-000 |
US $2.24 |
||
|
4
|
4
09111-06086-000 BOLT(6X12) |
09111-06086-000 |
US $12.50 |
||
|
5
|
5
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81800-63812-000 BALANCER,BACK DR |
81800-63812-000 |
from US $68.45 |
||
|
7
|
7
81800-63822-000 BALANCER,BACK DR |
81800-63822-000 |
US $128 |
||
|
8
|
8
01551-0812C-000 Bolt |
01551-0812C-000 |
US $13.20 |
||
|
9
|
9
82683-60B10-000 CUSHION |
82683-60B10-000 |
US $1.92 |
||
|
10
|
10
83770-63J00-P4Z
Trim,back door(gray)
|
83770-63J00-P4Z |
— | ||
| replacement | |||||
|
10
|
10
83770-63J01-P4Z TRIM,BACK DOOR |
83770-63J01-P4Z |
US $95.68 |
||
|
11
|
11
09409-08325-000 CLIP |
09409-08325-000 |
from US $0.80 |
||
|
12
|
12
09409-08331-000 CLIP |
09409-08331-000 |
from US $1.24 |
||
|
13
|
13
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
14
|
14
09148-06007-000 NUT |
09148-06007-000 |
from US $0.88 |
||
|
15
|
15
84570-63J00-000 GLASS,BACK DR WINDOW |
84570-63J00-000 |
from US $302.56 |
||
|
16
|
16
84572-74G00-000 MALE,GLASS FASTENER NO.1 |
84572-74G00-000 |
US $3.79 |
||
|
17
|
17
84513-76F00-000 MALE,GLASS FASTENER NO.2 |
84513-76F00-000 |
US $1.60 |
||
|
18
|
18
84617-76F00-000 SPACER,WINDSHIELD GLASS |
84617-76F00-000 |
US $3.68 |
||
|
19
|
19
84515-65D00-000 FEMALE,GLASS FASTENER NO.2 |
84515-65D00-000 |
from US $3.51 |
||
|
20
|
20
82850-63JA0-ZFM HANDLE,BACK DOOR LOCK |
82850-63JA0-ZFM |
US $54.10 |
||
|
20
|
20
82850-63JA0-ZFN HANDLE,BACK DR LOCK |
82850-63JA0-ZFN |
US $54.10 |
||
|
20
|
20
82850-63JA0-ZJP
HANDLE ASSY,BK DR LOCK
|
82850-63JA0-ZJP |
— | ||
|
20
|
20
82850-63JA0-Z2S HANDLE,BACK DR LOCK |
82850-63JA0-Z2S |
US $54.10 |
||
|
20
|
20
82850-63JA0-ZDF HANDLE ASSY,BACK DR LOCK |
82850-63JA0-ZDF |
US $87.95 |
||
|
20
|
20
82850-63JA0-ZJ3 HANDLE,BACK DR LOCK |
82850-63JA0-ZJ3 |
US $54.10 |
||
|
20
|
20
82850-63JA0-ZY4 HANDLE,BACK DR LOCK |
82850-63JA0-ZY4 |
US $54.10 |
||
|
20
|
20
82850-63JA0-Z7T HANDLE,BACK DR LOCK |
82850-63JA0-Z7T |
US $54.46 |
||
|
21
|
21
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
22
|
22
84681-63J10-000
Weatherstrip,back door opening
|
84681-63J10-000 |
— | ||
| replacement | |||||
|
22
|
22
84681-63J11-000 WEATHERSTRIP,BACK DR OPNG |
84681-63J11-000 |
US $71.76 |
||
|
23
|
23
09250-20023-000 CAP(OD:25.8) |
09250-20023-000 |
US $10.30 |
||
