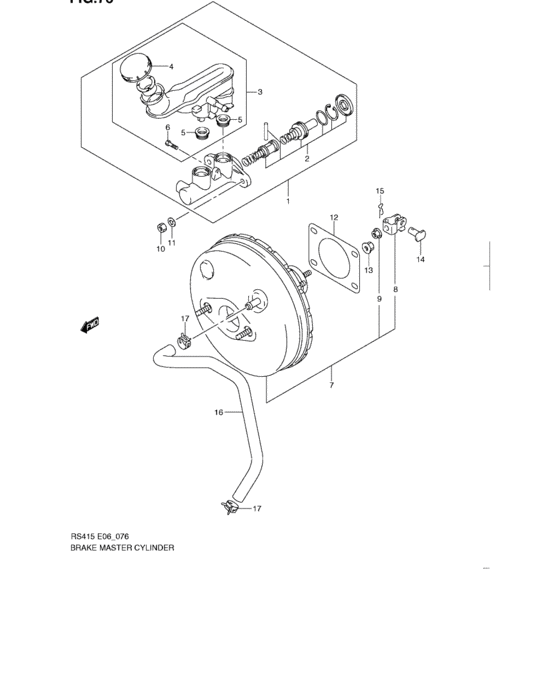

Brake master cylinder (BRAKE MASTER CYLINDER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Africa
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-63J00-000
Cylinder assy,brake master
MT |
51100-63J00-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-63J01-000 CYLINDER ASSY,BRAKE MASTERMT |
51100-63J01-000 |
US $670.40 |
||
|
2
|
2
51810-63J00-000
Piston set,brake master
|
51810-63J00-000 |
— | ||
| replacement | |||||
|
2
|
2
51810-63J02-000 PISTON SET,BRAKE MASTER |
51810-63J02-000 |
US $90.16 |
||
|
3
|
3
51200-63J00-000 RESERVOIR ASSY,BRAKE MASTERMT |
51200-63J00-000 |
US $77.52 |
||
|
4
|
4
51220-61J00-000 CAP,RESERVOIR |
51220-61J00-000 |
from US $15.53 |
||
|
5
|
5
51232-61J00-000 GROMMET,RSVR CONNECTOR |
51232-61J00-000 |
US $5.15 |
||
|
6
|
6
51233-63J00-000 BOLT,RESERVOIR |
51233-63J00-000 |
US $2.43 |
||
|
7
|
7
51300-63J40-000 BOOSTER ASSY,BRAKE MASTER |
51300-63J40-000 |
US $353.28 |
||
|
8
|
8
51182-63J10-000 CLEVIS,CYLINDER PUSH ROD |
51182-63J10-000 |
US $8.32 |
||
|
9
|
9
51315-61J00-000 NUT,CYLINDER PUSH ROD |
51315-61J00-000 |
US $3.35 |
||
|
10
|
10
51313-61J00-000 NUT |
51313-61J00-000 |
US $3.35 |
||
|
11
|
11
51314-61J00-000 SPRING WASHER |
51314-61J00-000 |
US $2.72 |
||
|
12
|
12
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
13
|
13
09159-08127-000 NUT |
09159-08127-000 |
US $9.90 |
||
|
14
|
14
09200-08048-000 PIN(8X20) |
09200-08048-000 |
from US $1.06 |
||
|
15
|
15
09385-08007-000 PIN,SNAPClip |
09385-08007-000 |
from US $1.09 |
||
|
16
|
16
51010-63J00-000 HOSE,BRAKE VACUUM INTAKE |
51010-63J00-000 |
US $21.34 |
||
|
17
|
17
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.04 |
||
