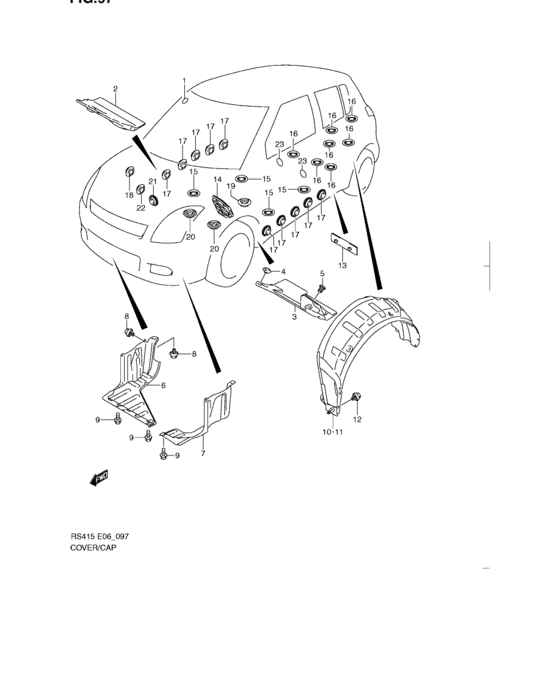

Cover/cap (COVER/CAP) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Africa
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/ROOF SIDE AIR BAG,CUT AS REQUIRED |
84761-50X50-000 |
US $6.72 |
||
|
2
|
2
75411-63J00-000 PAD,DASH LWR,RRHD |
75411-63J00-000 |
US $34.41 |
||
|
3
|
3
75412-80J00-000 PAD,DASH LWR,LRHD |
75412-80J00-000 |
US $34.41 |
||
|
4
|
4
09148-05037-000 CLIP |
09148-05037-000 |
from US $1.24 |
||
|
5
|
5
75471-63J00-000 STOPPER,ACCEL PEDAL |
75471-63J00-000 |
US $2.43 |
||
|
6
|
6
72391-63J10-000 COVER,ENG UNDER,R |
72391-63J10-000 |
from US $77.49 |
||
|
7
|
7
72392-63J10-000 COVER,ENG UNDER,L |
72392-63J10-000 |
from US $76.77 |
||
|
8
|
8
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.28 |
||
|
9
|
9
09122-76001-000 SCREW(6X16) |
09122-76001-000 |
US $0.80 |
||
|
10
|
10
75511-57K00-000 LINING,RR FENDER,R |
75511-57K00-000 |
US $65.14 |
||
|
11
|
11
75521-57K00-000 LINING,RR FENDER,L |
75521-57K00-000 |
US $65.14 |
||
|
12
|
12
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.28 |
||
|
13
|
13
75542-63J00-000 COVER,MAIN FL END |
75542-63J00-000 |
US $4.64 |
||
|
14
|
14
75420-63J00-000 CAP,DASH LWR |
75420-63J00-000 |
US $6.51 |
||
|
15
|
15
75431-58J00-000 CAP,FL |
75431-58J00-000 |
US $2.88 |
||
|
16
|
16
75431-58J00-000 CAP,FL |
75431-58J00-000 |
US $2.88 |
||
|
17
|
17
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
18
|
18
77111-63J00-000 CAP |
77111-63J00-000 |
US $1.60 |
||
|
19
|
19
09250-15015-000 CAP(OD:23.5) |
09250-15015-000 |
US $1.07 |
||
|
20
|
20
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $0.95 |
||
|
21
|
21
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
22
|
22
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
23
|
23
77151-82000-000
FILM
|
77151-82000-000 |
— | ||
| replacements | |||||
|
23
|
23
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
23
|
23
77151-82010-000 Seal |
77151-82010-000 |
US $1.44 |
||
