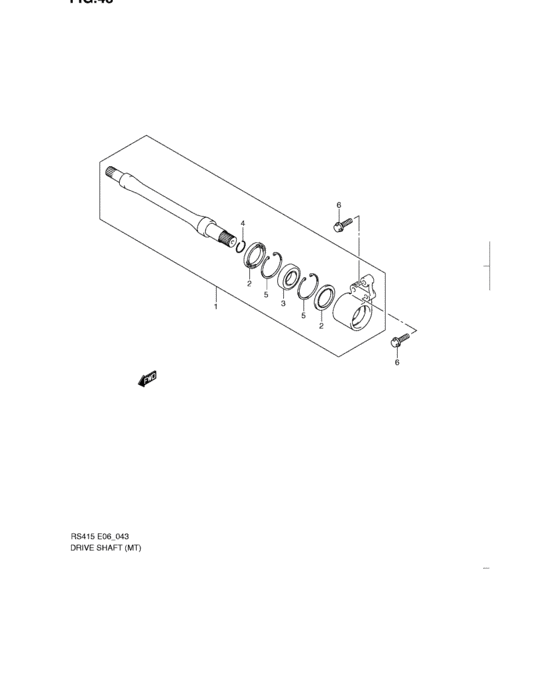

Drive shaft (MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Africa
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27800-86G40-000
Shaft assy,drive intermediate
|
27800-86G40-000 |
— | ||
| replacement | |||||
|
1
|
1
27800-86G41-000 SHAFT ASSY,DRIVE INTERMEDIATE |
27800-86G41-000 |
US $482.24 |
||
|
2
|
2
27841-64G00-000 SEAL,DRIVE INTERMEDIATE |
27841-64G00-000 |
from US $10.19 |
||
|
3
|
3
09262-28030-000
Bearing,28x58x16
|
09262-28030-000 |
— | ||
| replacement | |||||
|
3
|
3
27831-68L10-000 BEARING,DRIVE INTERMEDIATE |
27831-68L10-000 |
from US $29.61 |
||
|
4
|
4
09381-24001-000 RING,SNAPRing (od:24,d:1.6) |
09381-24001-000 |
from US $1.60 |
||
|
5
|
5
08331-4158A-000 CIRCLIP |
08331-4158A-000 |
from US $2.56 |
||
|
6
|
6
01550-1040A-000 BOLT |
01550-1040A-000 |
from US $1.12 |
||
