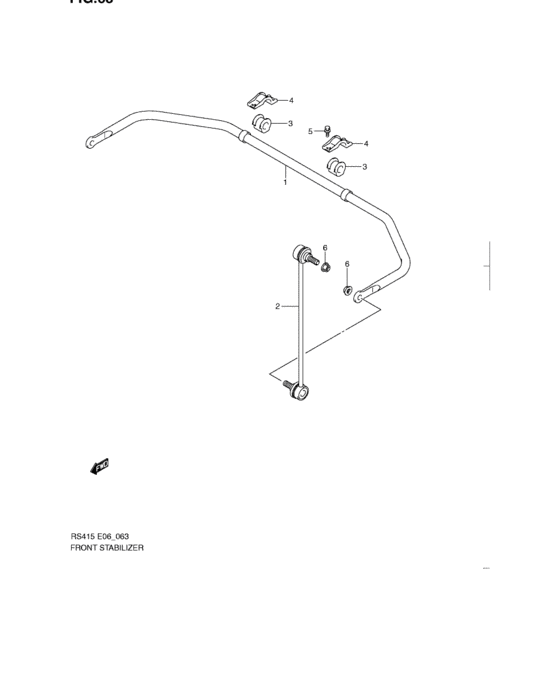

Front stabilizer (FRONT STABILIZER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Africa
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-63J10-000 BAR,FR STABILIZER |
42311-63J10-000 |
US $135.20 |
||
|
2
|
2
42420-63J00-000
JOINT,FR STABILIZER BAR
|
42420-63J00-000 |
— | ||
| replacement | |||||
|
2
|
2
42420-63J01-000 JOINT COMP FR STABILIZER BAR |
42420-63J01-000 |
from US $31.43 |
||
|
3
|
3
42431-63J10-000 MOUNT,FR STAB BAR |
42431-63J10-000 |
from US $4.73 |
||
|
4
|
4
42441-63J21-000 BRACKET,FR STABILIZER MOUNT |
42441-63J21-000 |
US $8.76 |
||
|
5
|
5
09117-08101-000 BOLT(8X25) |
09117-08101-000 |
US $1.92 |
||
|
6
|
6
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
