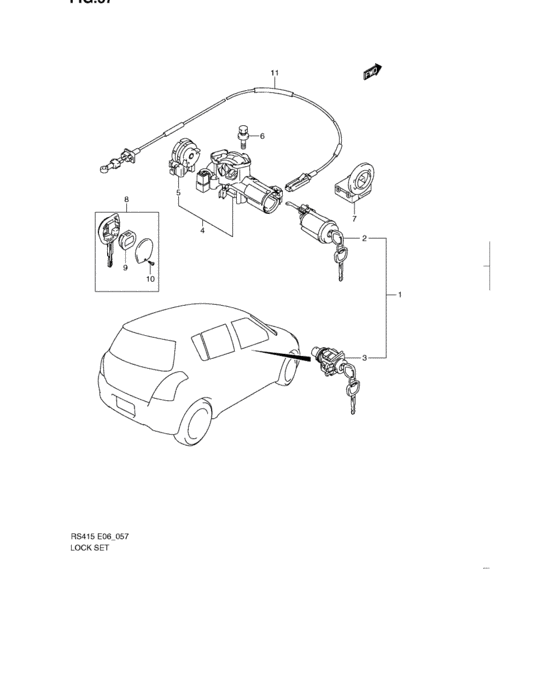

Lock set (LOCK SET) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Africa
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37106-63860-000
Lock set
MT |
37106-63860-000 |
— | ||
| replacements | |||||
|
1
|
1
37106-63861-000
LOCK SET
MT |
37106-63861-000 |
— | ||
|
1
|
1
37106-63862-000 LOCK SETMT |
37106-63862-000 |
US $429.44 |
||
|
2
|
2
37106-63880-000 LOCK ASSY,STEERINGMT |
37106-63880-000 |
US $94.24 |
||
|
3
|
3
82270-63810-000 CYLINDER,FR DR LATCH,R |
82270-63810-000 |
US $53.36 |
||
|
4
|
4
37101-62J10-000 BODY,STEERING LOCKMT |
37101-62J10-000 |
US $121.44 |
||
|
5
|
5
37111-58J00-000 Ignition switch |
37111-58J00-000 |
US $48.94 |
||
|
6
|
6
37152-84G00-000 BOLT, STRG LOCK |
37152-84G00-000 |
from US $2.98 |
||
|
7
|
7
33970-62J00-000 CONTROLLER ASSY,IMMOBILIZER |
33970-62J00-000 |
US $239.20 |
||
|
8
|
8
37145-55JA0-000
KEY,BLANK W/IMM/KEYLESS
OPT |
37145-55JA0-000 |
— | ||
| replacement | |||||
|
8
|
8
37145-55JA1-000 KEY,BLANK W/IMM/KEYLESSOPT |
37145-55JA1-000 |
US $77.83 |
||
|
9
|
9
37182-62J10-000
Switch assy, transmitter
|
37182-62J10-000 |
— | ||
| replacement | |||||
|
9
|
9
37182-62JV0-000
SWITCH ASSY,TRANSMITTER
|
37182-62JV0-000 |
— | ||
|
10
|
10
37186-81A00-000 SCREW |
37186-81A00-000 |
US $1.60 |
||
