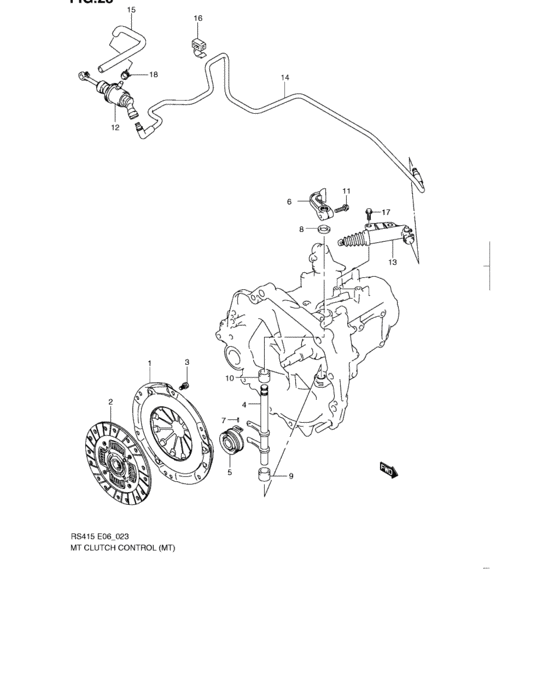

Mt clutch control (MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Africa
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-60J00-000 COVER ASSY,CLUTCH |
22100-60J00-000 |
from US $144.14 |
||
|
2
|
2
22400-60J00-000 DISC,CLUTCH |
22400-60J00-000 |
from US $118.31 |
||
|
3
|
3
09117-08096-000 BOLT(8X16) |
09117-08096-000 |
from US $1.28 |
||
|
4
|
4
23260-63J20-000 SHAFT,CLUTCH RELEASE |
23260-63J20-000 |
US $52 |
||
|
5
|
5
23265-65G00-000 BEARING,CLUTCH RELEASE |
23265-65G00-000 |
from US $49.55 |
||
|
6
|
6
23266-63J20-000 ARM,CLUTCH RELEASE |
23266-63J20-000 |
US $74.40 |
||
|
7
|
7
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock |
09205-03019-000 |
from US $0.81 |
||
|
8
|
8
09284-16004-000 SEAL,OIL(16X24X5) |
09284-16004-000 |
from US $2.72 |
||
|
9
|
9
09300-16009-000 BUSH(16X20X20) |
09300-16009-000 |
from US $2.72 |
||
|
10
|
10
09300-16010-000 BUSH(16X24X19) |
09300-16010-000 |
from US $3.47 |
||
|
11
|
11
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.06 |
||
|
12
|
12
23810-63J01-000
Cylinder assy,clutch master
|
23810-63J01-000 |
— | ||
| replacement | |||||
|
12
|
12
23810-63J02-000 CYLINDER ASSY,CLUTCH MASTER |
23810-63J02-000 |
from US $128.25 |
||
|
13
|
13
23820-63J00-000
Cylinder assy,clutch operating
|
23820-63J00-000 |
— | ||
| replacement | |||||
|
13
|
13
23820-63J01-000 CYLINDER ASSY,CLUTCH OPERATING |
23820-63J01-000 |
from US $61.97 |
||
|
14
|
14
23830-63J20-000 PIPE,CLUTCH OIL |
23830-63J20-000 |
US $51.20 |
||
|
15
|
15
23881-63J20-000 HOSE,CLUTCH RESERVOIR |
23881-63J20-000 |
US $8.35 |
||
|
16
|
16
23915-63J00-000 CLAMP,CLUTCH OIL PIPE NO.1 |
23915-63J00-000 |
US $1.25 |
||
|
17
|
17
09103-08375-000 BOLT(8X25) |
09103-08375-000 |
US $26.10 |
||
|
18
|
18
09401-12405-000 CLIP |
09401-12405-000 |
from US $1.60 |
||
