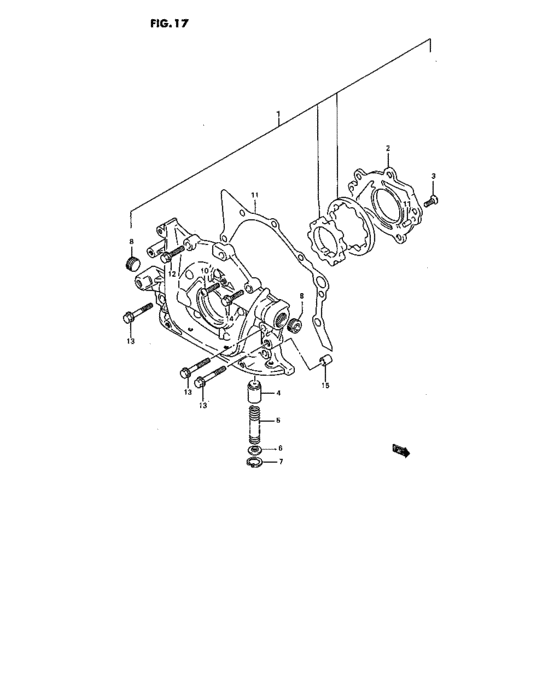

Oil pump (OIL PUMP) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-82829-000
ポンプセット,オイル
<-16100-82826 |
16100-82829-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-82844-000 PUMP SET,OIL<-16100-82826 |
16100-82844-000 |
US $285.20 |
||
|
2
|
2
16161-86000-000
Plate, gear
|
16161-86000-000 |
— | ||
|
3
|
3
09126-06007-000 SCREW(6X14)Bolt <-02122-06148 |
09126-06007-000 |
from US $3.21 |
||
|
4
|
4
16150-78100-000 VALVE SET,OIL PUMP RELIEF |
16150-78100-000 |
US $11.81 |
||
|
5
|
5
16152-78100-000
スプリング,リリーフバルブ
|
16152-78100-000 |
— | ||
| replacement | |||||
|
5
|
5
16150-78100-000 VALVE SET,OIL PUMP RELIEF |
16150-78100-000 |
US $11.81 |
||
|
6
|
6
16153-78100-000
リテーナ,スプリング
|
16153-78100-000 |
— | ||
|
7
|
7
08331-41156-000
Circlip
|
08331-41156-000 |
— | ||
| replacement | |||||
|
7
|
7
08331-4115A-000 CIRCLIP |
08331-4115A-000 |
US $1.60 |
||
|
8
|
8
09246-08002-000 PLUG |
09246-08002-000 |
US $1.76 |
||
|
9
|
9
16173-78100-000
PIN,OIL PUMP GEAR PLATE
|
16173-78100-000 |
— | ||
|
10
|
10
02112-06253-000
Screw
|
02112-06253-000 |
— | ||
| replacements | |||||
|
10
|
10
02112-0625B-000 SCREW |
02112-0625B-000 |
US $0.80 |
||
|
10
|
10
02112-0625A-000 SCREW |
02112-0625A-000 |
from US $0.80 |
||
|
11
|
11
16119-82011-000
ガスケット,オイルポンプ
|
16119-82011-000 |
— | ||
| replacement | |||||
|
11
|
11
16119-82012-000 GASKET,OIL PUMP |
16119-82012-000 |
US $23.20 |
||
|
11
|
11
16119-60A04-000
Gasket
JSAEAA44S00252133~ |
16119-60A04-000 |
— | ||
| replacement | |||||
|
11
|
11
16119-60A05-000 GASKET,OIL PUMPJSAEAA44S00252133~ |
16119-60A05-000 |
from US $9.16 |
||
|
12
|
12
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
12
|
12
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
13
|
13
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
13
|
13
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
14
|
14
09103-06084-000
Bolt
|
09103-06084-000 |
— | ||
| replacement | |||||
|
14
|
14
09103-06282-000 BOLT(6X25)Bolt, shift cam (6x25) |
09103-06282-000 |
from US $3.42 |
||
|
15
|
15
04211-09109-000 PINKnock pin |
04211-09109-000 |
from US $0.96 |
||
