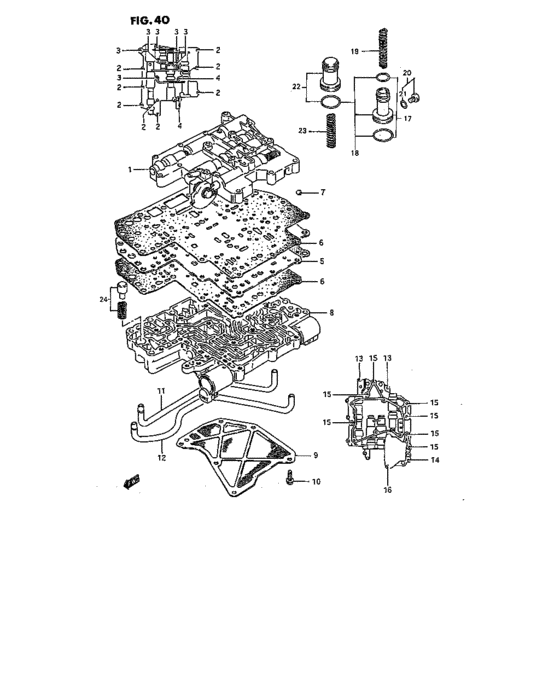

At valve (AT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Pacific
- transmission
- AT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
26510-82304-000
Body assy, valve
|
26510-82304-000 |
— | ||
| replacement | |||||
|
|
26510-82307-000
VALVE ASSY,TRANSMISSION
|
26510-82307-000 |
— | ||
|
1
|
1
26521-82303-000
ボディアッシ,アッパバルブ
|
26521-82303-000 |
— | ||
| replacement | |||||
|
1
|
1
26521-82304-000
BODY ASSY,UPPER VALVE
|
26521-82304-000 |
— | ||
|
2
|
2
26595-82300-000
BOLT,T/M VALVE BODY LWR NO.1
|
26595-82300-000 |
— | ||
|
3
|
3
26596-82300-000
BOLT,T/M VALVE BODY LWR NO.2
|
26596-82300-000 |
— | ||
|
4
|
4
26597-82300-000
BOLT,T/M VALVE BODY LWR NO.3
|
26597-82300-000 |
— | ||
|
5
|
5
26551-82300-000
プレート,バルブボディ
|
26551-82300-000 |
— | ||
| replacement | |||||
|
5
|
5
26551-70F00-000 PLATE,VALVE BODY |
26551-70F00-000 |
US $43.79 |
||
|
6
|
6
26581-82300-000
ガスケット,バルブボディ
|
26581-82300-000 |
— | ||
| replacement | |||||
|
6
|
6
26581-82301-000 GASKET,VALVE BODY |
26581-82301-000 |
US $7.40 |
||
|
7
|
7
26533-82300-000 BALL,VALVE BODY |
26533-82300-000 |
US $0.92 |
||
|
8
|
8
26511-82300-000
ボディアッシ,ロアバルブ
|
26511-82300-000 |
— | ||
| replacement | |||||
|
8
|
8
26511-82302-000
BODY ASSY,LOWER VALVE
|
26511-82302-000 |
— | ||
|
9
|
9
26570-82300-000 STRAINER,T/M OIL |
26570-82300-000 |
US $45.26 |
||
|
10
|
10
09103-05006-000
BOLT(5X14)
|
09103-05006-000 |
— | ||
|
11
|
11
26541-82300-000 TUBE,FWD CLUTCH ACCUMULATOR |
26541-82300-000 |
US $22.82 |
||
|
12
|
12
26542-82300-000
TUBE,2ND BRAKE
|
26542-82300-000 |
— | ||
|
13
|
13
26599-82300-000 Bolt |
26599-82300-000 |
US $2.61 |
||
|
14
|
14
26586-85500-000 BOLT,VALVE BODY NO.2 |
26586-85500-000 |
US $1.73 |
||
|
15
|
15
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
15
|
15
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
16
|
16
09103-06080-000 BOLT(6X47) |
09103-06080-000 |
US $14.40 |
||
|
17
|
17
26531-823T0-000
PISTON SET,B1 ACC
|
26531-823T0-000 |
— | ||
|
18
|
18
26533-823T0-000 SEAL RING SET,ACC |
26533-823T0-000 |
US $7.65 |
||
|
19
|
19
26573-82301-000
SPRING,B2 ACCUMULATOR
|
26573-82301-000 |
— | ||
|
20
|
20
24820-62B00-000 PLUG,BOOSTER |
24820-62B00-000 |
US $3.53 |
||
|
21
|
21
24755-78130-000 O-RING |
24755-78130-000 |
US $0.92 |
||
|
22
|
22
26532-62BT0-000
PISTON SET,C1 ACC
|
26532-62BT0-000 |
— | ||
|
23
|
23
26561-82301-000
スプリング,アキュムレータ
|
26561-82301-000 |
— | ||
|
24
|
24
26534-823T0-000
VALVE SET,COOLER BYPASS
|
26534-823T0-000 |
— | ||
