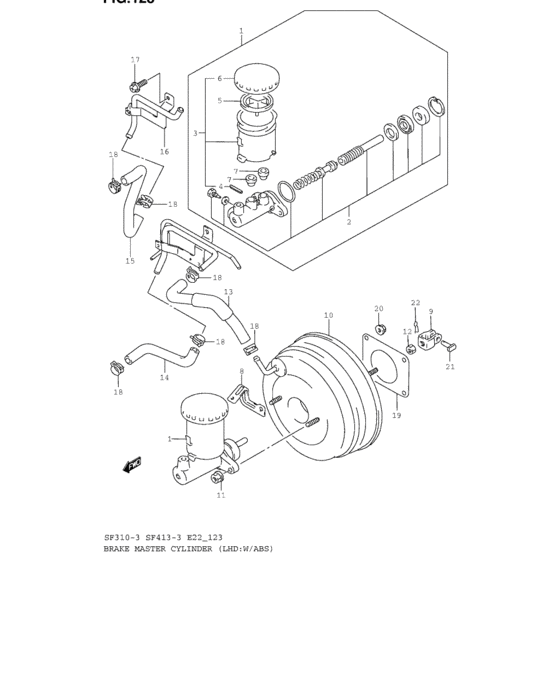

Brake master cylinder (LHD:W/ABS) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-70CA0-000
Cylinder assy,brake master
|
51100-70CA0-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-70CA1-000
CYLINDER ASSY,BRAKE MASTER
|
51100-70CA1-000 |
— | ||
|
2
|
2
51810-77A50-000
Piston set,master cylinder
|
51810-77A50-000 |
— | ||
| replacement | |||||
|
2
|
2
51810-77A51-000 PISTON SET,MASTER CYLINDER |
51810-77A51-000 |
from US $93.76 |
||
|
3
|
3
51200-77E01-000 RESERVOIR ASSY,MASTER CYLINDER |
51200-77E01-000 |
US $156.80 |
||
|
4
|
4
09205-05003-000 PIN,SPRING(5X45) |
09205-05003-000 |
US $1.76 |
||
|
5
|
5
51234-60A20-000 STRAINER,MASTER CYLINDER |
51234-60A20-000 |
US $7.68 |
||
|
6
|
6
51220-60A20-000 CAP,RESERVOIR |
51220-60A20-000 |
US $17.60 |
||
|
7
|
7
51197-85520-000 GROMMET,RESERVOIR CONNECTOR |
51197-85520-000 |
US $2.72 |
||
|
8
|
8
51119-60B20-000
BRACKET,ENG HARN CLAMP
|
51119-60B20-000 |
— | ||
|
9
|
9
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
10
|
10
51300-80EB1-000 BOOSTER ASSY,BRAKE MASTER |
51300-80EB1-000 |
US $397.44 |
||
|
11
|
11
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
|
12
|
12
09140-10019-000 NUT |
09140-10019-000 |
US $9.20 |
||
|
13
|
13
51021-80E40-000
HOSE,VACUUM BSTR TO PIPE
|
51021-80E40-000 |
— | ||
|
14
|
14
51031-80EB0-000
Hose, vacuum pipe to intake
SF310 |
51031-80EB0-000 |
— | ||
|
15
|
15
51031-80E20-000
Hose, vacuum pipe to intake
SF413 |
51031-80E20-000 |
— | ||
|
16
|
16
51050-80E00-000
PIPE,BRAKE VACUUM
SF413 |
51050-80E00-000 |
— | ||
|
17
|
17
02162-06103-000
Bolt
SF413 |
02162-06103-000 |
— | ||
| replacement | |||||
|
17
|
17
02162-0610A-000 SCREWSF413 |
02162-0610A-000 |
from US $0.64 |
||
|
18
|
18
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.04 |
||
|
19
|
19
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
20
|
20
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
20
|
20
09159-08135-000 NUT |
09159-08135-000 |
from US $0.81 |
||
|
21
|
21
09200-10021-000 PIN |
09200-10021-000 |
US $1.28 |
||
|
22
|
22
09385-10006-000 PIN,SNAPPin |
09385-10006-000 |
from US $1.60 |
||
