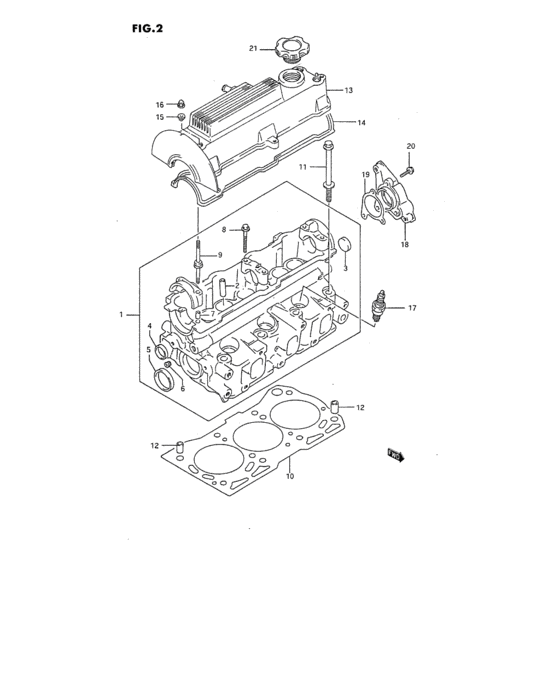

Cylinder head (CYLINDER HEAD) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-60B01-000 HEAD ASSY,CYLINDER |
11100-60B01-000 |
US $792 |
||
|
2
|
2
11115-60B11-001 GUIDE,VALVE |
11115-60B11-001 |
from US $12.73 |
||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.60 |
||
|
4
|
4
09241-25005-000 PLUG(OD:25) |
09241-25005-000 |
from US $2.72 |
||
|
5
|
5
09241-40004-000 PLUG |
09241-40004-000 |
US $28.30 |
||
|
6
|
6
09246-05003-000
プラグ,1/8PT,H:5.5
|
09246-05003-000 |
— | ||
| replacement | |||||
|
6
|
6
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.76 |
||
|
7
|
7
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
8
|
8
09103-06132-000 BOLT(6X41) |
09103-06132-000 |
from US $1.28 |
||
|
9
|
9
11131-60B00-000
BOLT,CMSHFT HOUSING STUD
|
11131-60B00-000 |
— | ||
|
10
|
10
11141-60B01-000
ガスケット,シリンダヘッド
|
11141-60B01-000 |
— | ||
| replacement | |||||
|
10
|
10
11141-60B02-000 GASKET,CYL HEAD |
11141-60B02-000 |
US $64.77 |
||
|
11
|
11
11119-60B01-000
Bolt, cylinder head
|
11119-60B01-000 |
— | ||
| replacement | |||||
|
11
|
11
11119-60B02-000 BOLT,CYLINDER HEAD |
11119-60B02-000 |
US $5.26 |
||
|
12
|
12
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
12
|
12
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
13
|
13
11170-60B10-000 Cover,cylinder head |
11170-60B10-000 |
US $213.44 |
||
|
14
|
14
11189-60B00-000 GASKET,CYL HEAD COVER |
11189-60B00-000 |
US $42.40 |
||
|
15
|
15
11180-60B00-000 SEAL WASHER,CYL HEAD COVER |
11180-60B00-000 |
US $13.60 |
||
|
16
|
16
08313-21064-000
Nut 6mm
|
08313-21064-000 |
— | ||
| replacements | |||||
|
16
|
16
08313-2006B-000 NUT |
08313-2006B-000 |
from US $0.76 |
||
|
16
|
16
08313-2006A-000 NUT |
08313-2006A-000 |
from US $1.24 |
||
|
17
|
17
09482-00299-000 PLUG,SPARK(BPR6ES)Plug, spark (bpr6es) |
09482-00299-000 |
from US $5.37 |
||
|
17
|
17
09482-00409-000 PLUG,SPARK(W20EPR-U) |
09482-00409-000 |
US $8.65 |
||
|
18
|
18
11161-60B00-000
CASE,DISTRIBUTOR
|
11161-60B00-000 |
— | ||
|
19
|
19
11169-60B00-000 GASKET,DISTRIBUTOR CASE |
11169-60B00-000 |
US $2.36 |
||
|
20
|
20
01517-06203-000
Bolt
|
01517-06203-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
20
|
20
01550-0620A-000 Bolt |
01550-0620A-000 |
from US $0.76 |
||
|
21
|
21
16920-86502-000
Cap, oil filler
|
16920-86502-000 |
— | ||
| replacements | |||||
|
21
|
21
16920-83G00-000
Cap,oil filler
|
16920-83G00-000 |
— | ||
|
21
|
21
16920-83G01-000 CAP OIL FILLER |
16920-83G01-000 |
US $10.22 |
||
