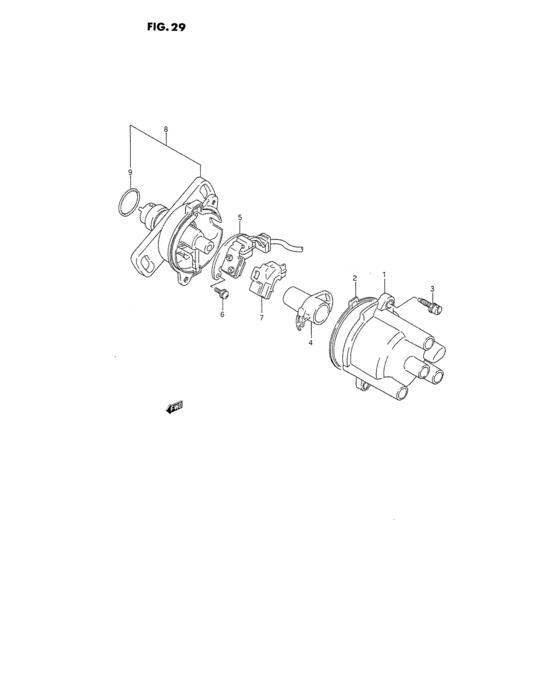

Distributor (DISTRIBUTOR) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
33100-60B50-000
Distributor assy,with ca snsr
|
33100-60B50-000 |
— | ||
|
1
|
1
33321-85570-000 CAP,DISTRIBUTOR |
33321-85570-000 |
US $48 |
||
|
2
|
2
33324-86510-000 PACKING,CAP |
33324-86510-000 |
from US $2.08 |
||
|
3
|
3
33237-60B50-000
ボルト
|
33237-60B50-000 |
— | ||
| replacements | |||||
|
3
|
3
01580-0520B-000 Bolt |
01580-0520B-000 |
from US $1.17 |
||
|
3
|
3
01174-05203-000
New Genuine Part
|
01174-05203-000 |
— | ||
|
4
|
4
33310-60B50-000 ROTOR,DISTRIBUTOR |
33310-60B50-000 |
US $15.42 |
||
|
5
|
5
33140-60B50-000 PICKUP COIL ASSY |
33140-60B50-000 |
US $163.20 |
||
|
6
|
6
33151-65010-000
Screw
|
33151-65010-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
6
|
6
02152-04108-000
Screw
|
02152-04108-000 |
— | ||
|
7
|
7
33279-82010-000
カバー,シグナルジェネレータダスト
|
33279-82010-000 |
— | ||
|
8
|
8
33110-60B50-000
Housing assy, distributor
|
33110-60B50-000 |
— | ||
|
9
|
9
33278-54E10-000 O-RING |
33278-54E10-000 |
from US $8.64 |
||
