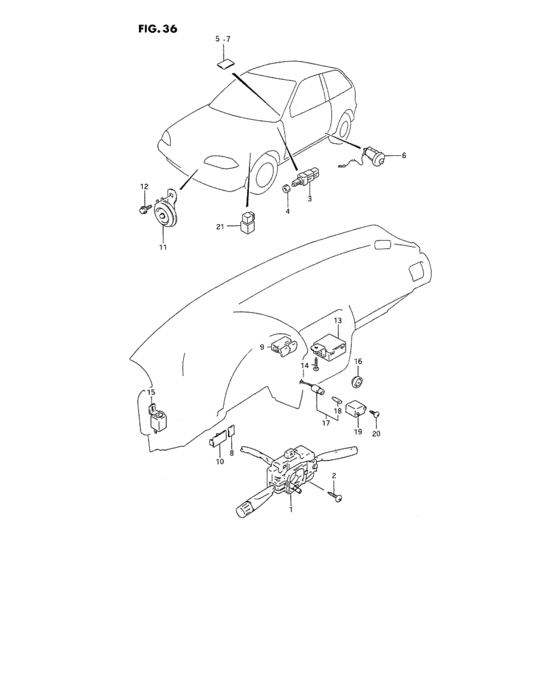

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-64E10-000
Switch, combination
|
37400-64E10-000 |
— | ||
| replacement | |||||
|
1
|
1
37400-64E12-000 SWITCH ASSY,COMB |
37400-64E12-000 |
US $133.13 |
||
|
2
|
2
02112-05128-000
Screw
|
02112-05128-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-05127-000 SCREWScrew, vacuum sw valve |
02112-05127-000 |
from US $0.76 |
||
|
3
|
3
37740-60A00-000
SWITCH ASSY STOP LAMP
|
37740-60A00-000 |
— | ||
| replacement | |||||
|
3
|
3
37740-60D01-000 SWITCH ASSY,STOP LAMP |
37740-60D01-000 |
from US $28.82 |
||
|
4
|
4
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
4
|
4
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
5
|
5
71891-84300-000
カバー
|
71891-84300-000 |
— | ||
| replacement | |||||
|
5
|
5
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
6
|
6
37670-60B10-000
スイッチアッシ,ドア
|
37670-60B10-000 |
— | ||
| replacement | |||||
|
6
|
6
37670-60A02-000 SWITCH ASSY,DOOR |
37670-60A02-000 |
from US $13.84 |
||
|
7
|
7
36930-82000-000
カバー
|
36930-82000-000 |
— | ||
| replacement | |||||
|
7
|
7
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
8
|
8
37285-60E00-000 CAP,OPTION SW HOLE |
37285-60E00-000 |
from US $2.24 |
||
|
9
|
9
37375-60E00-000 CAP,CLUSTER SW HOLE |
37375-60E00-000 |
US $12 |
||
|
10
|
10
37955-60E00-000 CAP,MIRROR SW HOLE |
37955-60E00-000 |
US $4.31 |
||
|
11
|
11
38500-82200-000
Horn assy
|
38500-82200-000 |
— | ||
| replacement | |||||
|
11
|
11
38500-60G00-000 HORN ASSY |
38500-60G00-000 |
from US $49.86 |
||
|
12
|
12
01137-08123-000
Bolt
|
01137-08123-000 |
— | ||
| replacement | |||||
|
12
|
12
01570-0812A-000 Bolt |
01570-0812A-000 |
US $14.40 |
||
|
13
|
13
38590-60B20-000
Buzzer assy, warning
|
38590-60B20-000 |
— | ||
| replacement | |||||
|
13
|
13
38590-77E10-000 CONTROLLER,WARNING BUZZER |
38590-77E10-000 |
US $138 |
||
|
14
|
14
02142-05106-000
Screw
|
02142-05106-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.72 |
||
|
15
|
15
38610-50A01-000
RELAY
|
38610-50A01-000 |
— | ||
| replacement | |||||
|
15
|
15
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
from US $44.30 |
||
|
16
|
16
09250-25008-000 CAP(OD:31) |
09250-25008-000 |
US $13.20 |
||
|
17
|
17
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM |
36550-60E00-000 |
from US $15.05 |
||
|
18
|
18
36551-70A00-000
バルブ,12V1.4W
|
36551-70A00-000 |
— | ||
| replacement | |||||
|
18
|
18
09471-12091-000 BULB(12V1.4W G30) |
09471-12091-000 |
from US $3.08 |
||
|
19
|
19
89819-60E00-000
Holder, ashtray lamp
|
89819-60E00-000 |
— | ||
| replacement | |||||
|
19
|
19
89819-60E01-000 HOLDER,ASHTRAY LAMP |
89819-60E01-000 |
US $4.38 |
||
|
20
|
20
03541-04128-000
Screw 4x12
|
03541-04128-000 |
— | ||
| replacements | |||||
|
20
|
20
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
20
|
20
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.96 |
||
|
21
|
21
38860-61B00-000 RELAY ASSY,HORN |
38860-61B00-000 |
from US $15.82 |
||
