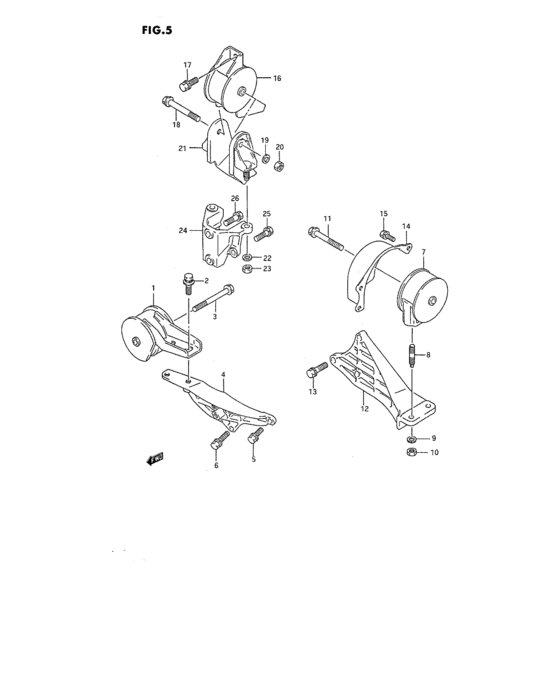

Engine mounting (ENGINE MOUNTING) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-60B10-000
MOUNTING,ENG,R
|
11610-60B10-000 |
— | ||
|
2
|
2
09118-10052-000 BOLT(10X30) |
09118-10052-000 |
from US $1.44 |
||
|
3
|
3
01537-10853-000
Bolt
|
01537-10853-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-1085A-000 Bolt |
01550-1085A-000 |
from US $1.35 |
||
|
4
|
4
11641-60B10-000 BRACKET,ENG MTG,R |
11641-60B10-000 |
US $71.39 |
||
| replacement | |||||
|
4
|
4
11641-61B10-000 BRACKET,ENG MTG,R |
11641-61B10-000 |
US $66.24 |
||
|
5
|
5
01147-10253-000
ボルト
|
01147-10253-000 |
— | ||
| replacement | |||||
|
5
|
5
01570-1025A-000 Bolt |
01570-1025A-000 |
US $1.12 |
||
|
6
|
6
01947-10403-000
Bolt
|
01947-10403-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-1040A-000 Bolt |
01570-1040A-000 |
US $1.06 |
||
|
7
|
7
11620-60B11-000 MOUNTING,ENG,L |
11620-60B11-000 |
from US $65.77 |
||
|
8
|
8
09108-10107-000 BOLT,STUD |
09108-10107-000 |
from US $1.15 |
||
|
9
|
9
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.96 |
||
|
9
|
9
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.96 |
||
|
10
|
10
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
10
|
10
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
10
|
10
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
11
|
11
09103-10214-000
ボルト,10X80
|
09103-10214-000 |
— | ||
| replacement | |||||
|
11
|
11
09103-10341-000 BOLT(10X80) |
09103-10341-000 |
from US $2.09 |
||
|
12
|
12
11651-60B10-000 BRACKET,ENG MTG,L |
11651-60B10-000 |
US $76.54 |
||
|
13
|
13
01947-10353-000
Bolt
|
01947-10353-000 |
— | ||
| replacement | |||||
|
13
|
13
01570-1035A-000 Bolt |
01570-1035A-000 |
US $1.07 |
||
|
14
|
14
11671-60B10-000 BRACKET,ENG MTG BODY,L |
11671-60B10-000 |
US $5.13 |
||
|
15
|
15
01147-08203-000
Bolt
|
01147-08203-000 |
— | ||
| replacements | |||||
|
15
|
15
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
15
|
15
01570-0820A-000 Bolt |
01570-0820A-000 |
from US $0.96 |
||
|
16
|
16
11710-60B10-000
Mounting, engine rear
|
11710-60B10-000 |
— | ||
| replacement | |||||
|
16
|
16
11710-63B10-000 MOUNTING,ENG RR |
11710-63B10-000 |
from US $52.16 |
||
|
17
|
17
09118-10054-000 BOLT(10X30) |
09118-10054-000 |
US $1.68 |
||
|
18
|
18
09103-10214-000
ボルト,10X80
|
09103-10214-000 |
— | ||
| replacement | |||||
|
18
|
18
09103-10341-000 BOLT(10X80) |
09103-10341-000 |
from US $2.09 |
||
|
19
|
19
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.96 |
||
|
19
|
19
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.96 |
||
|
20
|
20
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
20
|
20
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
20
|
20
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
21
|
21
11750-60B11-000 BRACKET,ENG RR MTG NO.2 |
11750-60B11-000 |
US $47.20 |
||
|
22
|
22
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
22
|
22
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.96 |
||
|
22
|
22
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.96 |
||
|
23
|
23
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
23
|
23
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
23
|
23
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
24
|
24
11741-60B10-000 BRACKET,ENG RR MTG NO.1 |
11741-60B10-000 |
US $50.42 |
||
|
25
|
25
01147-10303-000
ボルト
|
01147-10303-000 |
— | ||
| replacement | |||||
|
25
|
25
01570-1030A-000 Bolt |
01570-1030A-000 |
from US $1.12 |
||
|
26
|
26
09117-10047-000
BOLT(10X30)
|
09117-10047-000 |
— | ||
