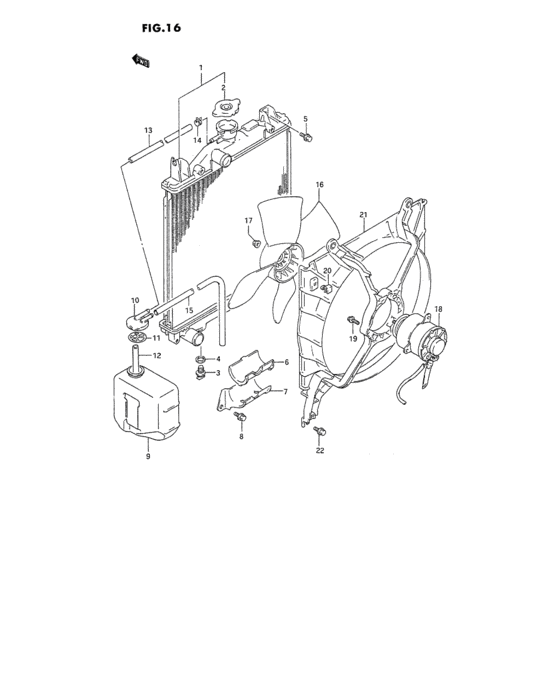

Radiator (RADIATOR) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-60B22-000
RADIATOR ASSY
|
17700-60B22-000 |
— | ||
|
2
|
2
17920-60B20-000
RADIATOR CAP
|
17920-60B20-000 |
— | ||
| replacement | |||||
|
2
|
2
17920-60B21-000 CAP,RADIATOR 0.9 |
17920-60B21-000 |
from US $17.60 |
||
|
3
|
3
17751-82000-000 PLUG,RADIATOR DRAIN |
17751-82000-000 |
from US $3.15 |
||
|
4
|
4
17759-63210-000
GASKET
|
17759-63210-000 |
— | ||
| replacement | |||||
|
4
|
4
17759-63211-000 Gasket |
17759-63211-000 |
US $1.18 |
||
|
5
|
5
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
5
|
5
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
6
|
6
17813-60E00-000 RUBBER,RADIATOR SUPPORT |
17813-60E00-000 |
from US $2.93 |
||
|
7
|
7
17811-60E00-000 BRACKET,RDTR SUPPORT |
17811-60E00-000 |
US $14.08 |
||
|
8
|
8
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
8
|
8
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
9
|
9
17931-60B00-000 TANK,WATER RESERVE |
17931-60B00-000 |
from US $18.29 |
||
|
10
|
10
17932-60B00-000
キャップ,ウォータリザーブタンク
|
17932-60B00-000 |
— | ||
| replacement | |||||
|
10
|
10
17932-60B10-000 CAP,WATER RESERVE TANK |
17932-60B10-000 |
from US $10.53 |
||
|
11
|
11
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap |
17933-60B00-000 |
from US $1.98 |
||
|
12
|
12
09352-70111-300
ホース,7X11X300
L:300->125 |
09352-70111-300 |
— | ||
| replacement | |||||
|
12
|
12
09352-70111-600 HOSE(7X11X600)L:300->125 |
09352-70111-600 |
from US $6.84 |
||
|
13
|
13
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600->370 |
09352-70121-600 |
from US $5.93 |
||
|
14
|
14
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
14
|
14
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
15
|
15
09352-70111-300
ホース,7X11X300
|
09352-70111-300 |
— | ||
| replacement | |||||
|
15
|
15
09352-70111-600 HOSE(7X11X600) |
09352-70111-600 |
from US $6.84 |
||
|
16
|
16
17111-84000-000 FAN |
17111-84000-000 |
US $20.50 |
||
|
17
|
17
08316-26053-000 NUT 5MM |
08316-26053-000 |
US $0.97 |
||
| replacement | |||||
|
17
|
17
08316-2005A-000 NUT |
08316-2005A-000 |
from US $0.80 |
||
|
18
|
18
17120-60B60-000
MOTOR ASSY
|
17120-60B60-000 |
— | ||
|
19
|
19
17129-50F10-000 SCREW,FAN MOTORScrew |
17129-50F10-000 |
from US $1.10 |
||
|
20
|
20
17761-60B00-000 CLIP(BLACK) |
17761-60B00-000 |
US $2.39 |
||
|
21
|
21
17760-60B60-000
SHROUD,FAN
|
17760-60B60-000 |
— | ||
|
22
|
22
01517-06103-000
BOLT 6X10
|
01517-06103-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
22
|
22
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
