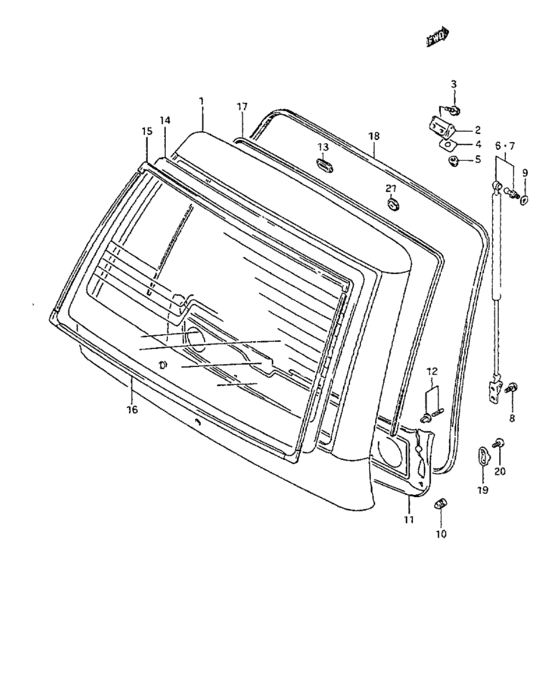

Back dr panel (BACK DR PANEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-60B70-000
Panel assy, back door
|
69100-60B70-000 |
— | ||
|
2
|
2
69510-60B00-000 HINGE,BACK DOOR |
69510-60B00-000 |
US $37.17 |
||
|
3
|
3
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
3
|
3
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
4
|
4
69571-60B00-000 PACKING,BACK DOOR HINGE FEM |
69571-60B00-000 |
US $3.64 |
||
|
5
|
5
08361-25083-000
Nut
|
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81800-62830-000
Balancer, back door rh
92 MODEL,93 MODEL |
81800-62830-000 |
— | ||
| replacement | |||||
|
6
|
6
81800-62831-000
BALANCER SET,BACK DR,R
92 MODEL,93 MODEL |
81800-62831-000 |
— | ||
|
6
|
6
81800-62851-000
Balancer, back door rh
94 MODEL |
81800-62851-000 |
— | ||
|
7
|
7
81800-62840-000
Balancer, back door lh
92 MODEL,93 MODEL |
81800-62840-000 |
— | ||
| replacement | |||||
|
7
|
7
81800-62841-000
BALANCER SET,BACK DR,L
92 MODEL,93 MODEL |
81800-62841-000 |
— | ||
|
7
|
7
81800-62861-000
Balancer, back door lh
94 MODEL |
81800-62861-000 |
— | ||
|
8
|
8
09138-06049-000 BOLT(6X12)92 MODEL,93 MODEL |
09138-06049-000 |
US $1.12 |
||
|
8
|
8
02112-76123-000
Screw
94 MODEL |
02112-76123-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-7612B-000 SCREW94 MODEL |
02112-7612B-000 |
from US $0.96 |
||
|
9
|
9
08322-11084-000
Washer
|
08322-11084-000 |
— | ||
| replacements | |||||
|
9
|
9
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
9
|
9
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
10
|
10
76683-70C00-000 CUSHION,TRUNK LID/BACK DR |
76683-70C00-000 |
US $1.92 |
||
|
11
|
11
83770-60B10-5ES
TRIM,BACK DOOR
92 MODEL,93 MODEL |
83770-60B10-5ES |
— | ||
|
11
|
11
83770-60B80-6MK
Trim, back door
94 MODEL |
83770-60B80-6MK |
— | ||
|
12
|
12
09409-07308-5PK CLIP(BLACK)92 MODEL,93 MODEL |
09409-07308-5PK |
from US $1.04 |
||
|
12
|
12
09409-07308-6MK
CLIP(GRAY)
94 MODEL |
09409-07308-6MK |
— | ||
|
13
|
13
83917-82010-000
カバー,ドアシーリング,アッパ
|
83917-82010-000 |
— | ||
| replacement | |||||
|
13
|
13
83917-82010-5PK CAP,BACK DR HOLE |
83917-82010-5PK |
US $1.60 |
||
|
14
|
14
84571-63B10-000
Glass,back door window
92 MODEL,93 MODEL |
84571-63B10-000 |
— | ||
| replacement | |||||
|
14
|
14
84571-60B80-000
GLASS,BACK DR WINDOW
92 MODEL,93 MODEL |
84571-60B80-000 |
— | ||
|
14
|
14
84571-63BK0-000
Glass, window
94 MODEL |
84571-63BK0-000 |
— | ||
|
15
|
15
84623-60B00-000
MOLDING,BACK WDO UPR
|
84623-60B00-000 |
— | ||
|
16
|
16
84625-60B01-000
MOLDING,BACK WDO LWR
|
84625-60B01-000 |
— | ||
|
17
|
17
84627-60B00-000 TRIM,BACK DOOR WINDOW |
84627-60B00-000 |
US $44.53 |
||
|
18
|
18
84681-60B00-000 WEATHERSTRIP,BACK DR OPNG |
84681-60B00-000 |
US $125.60 |
||
|
19
|
19
77121-60B00-000 STOPPER,BACK DOOR |
77121-60B00-000 |
US $4.12 |
||
|
20
|
20
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
20
|
20
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
21
|
21
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
