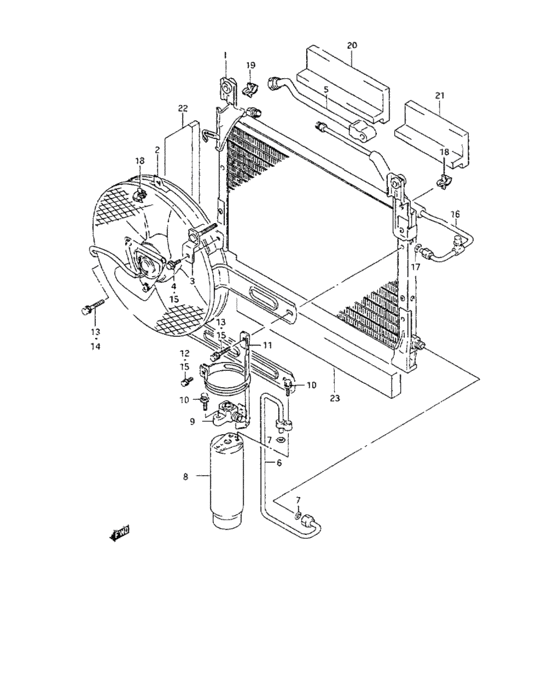

Condenser (CONDENSER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95310-50E10-000
Condenser
92 MODEL,93 MODEL |
95310-50E10-000 |
— | ||
|
1
|
1
95310-70C10-000
CONDENSER
94 MODEL |
95310-70C10-000 |
— | ||
|
2
|
2
95320-60B10-000
FAN ASSY,COND
92 MODEL,93 MODEL |
95320-60B10-000 |
— | ||
|
2
|
2
95320-70C10-000 FAN ASSY,COND94 MODEL |
95320-70C10-000 |
US $404.80 |
||
|
3
|
3
95329-60B10-000
Bracket,condenser pipe
|
95329-60B10-000 |
— | ||
|
4
|
4
01580-06123-000
Bolt
92 MODEL,93 MODEL |
01580-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01580-0612B-000 Bolt92 MODEL,93 MODEL |
01580-0612B-000 |
US $0.96 |
||
|
4
|
4
01580-0612A-000 Bolt92 MODEL,93 MODEL |
01580-0612A-000 |
from US $0.91 |
||
|
5
|
5
95322-60B10-000
PIPE,CONDENSER INLET
|
95322-60B10-000 |
— | ||
|
6
|
6
95731-60B10-000
Pipe,cond outlet
92 MODEL,93 MODEL |
95731-60B10-000 |
— | ||
| replacement | |||||
|
6
|
6
95731-70C10-000
Pipe, condenser outlet
92 MODEL,93 MODEL |
95731-70C10-000 |
— | ||
|
6
|
6
95731-70C10-000
Pipe, condenser outlet
94 MODEL |
95731-70C10-000 |
— | ||
|
7
|
7
95891-60E00-000 O-RING |
95891-60E00-000 |
US $0.70 |
||
|
8
|
8
95330-60B10-000
レシーバドライヤ
92 MODEL,93 MODEL |
95330-60B10-000 |
— | ||
| replacement | |||||
|
8
|
8
95330-60EG0-000
RECEIVER
92 MODEL,93 MODEL |
95330-60EG0-000 |
— | ||
|
8
|
8
95330-60EG0-000
RECEIVER
94 MODEL |
95330-60EG0-000 |
— | ||
|
9
|
9
95331-60B10-000
JOINT,RECEIVER DRYER
92 MODEL,93 MODEL |
95331-60B10-000 |
— | ||
|
9
|
9
95331-70C10-000
Joint, receiver
94 MODEL |
95331-70C10-000 |
— | ||
|
10
|
10
01580-06253-000
Bolt, ignition
|
01580-06253-000 |
— | ||
| replacement | |||||
|
10
|
10
01580-0625A-000 Bolt |
01580-0625A-000 |
US $0.96 |
||
|
11
|
11
95381-60B10-000
Bracket, receiver
92 MODEL,93 MODEL |
95381-60B10-000 |
— | ||
|
12
|
12
01550-06163-000
Bolt
92 MODEL,93 MODEL |
01550-06163-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0616B-000 BOLT92 MODEL,93 MODEL |
01550-0616B-000 |
from US $0.76 |
||
|
12
|
12
01550-0616A-000 BOLT92 MODEL,93 MODEL |
01550-0616A-000 |
from US $0.76 |
||
|
13
|
13
01580-06403-000
Bolt, front
92 MODEL,93 MODEL |
01580-06403-000 |
— | ||
| replacement | |||||
|
13
|
13
01580-0640B-000 BOLT92 MODEL,93 MODEL |
01580-0640B-000 |
from US $5.07 |
||
|
14
|
14
01580-06403-000
Bolt, front
94 MODEL |
01580-06403-000 |
— | ||
| replacement | |||||
|
14
|
14
01580-0640B-000 BOLT94 MODEL |
01580-0640B-000 |
from US $5.07 |
||
|
15
|
15
01580-06143-000 Bolt94 MODEL |
01580-06143-000 |
US $13.20 |
||
|
16
|
16
95732-60B10-000
PIPE,RECEIVER OUTLET
92 MODEL,93 MODEL |
95732-60B10-000 |
— | ||
|
16
|
16
95732-60EH0-000
Pipe, receiver outlet
94 MODEL |
95732-60EH0-000 |
— | ||
|
17
|
17
95891-60E00-000 O-RING |
95891-60E00-000 |
US $0.70 |
||
|
18
|
18
09408-00061-000
Clamp, decomp read
92 MODEL |
09408-00061-000 |
— | ||
| replacement | |||||
|
18
|
18
09403-08405-000 CLAMPClamp, decomp lead 92 MODEL |
09403-08405-000 |
from US $3.47 |
||
|
19
|
19
09408-00061-000
Clamp, decomp read
94 MODEL |
09408-00061-000 |
— | ||
| replacement | |||||
|
19
|
19
09403-08405-000 CLAMPClamp, decomp lead 94 MODEL |
09403-08405-000 |
from US $3.47 |
||
|
20
|
20
95814-60B10-000
PACKING,CONDENSER UPPER
|
95814-60B10-000 |
— | ||
|
21
|
21
95814-60B10-000
PACKING,CONDENSER UPPER
L:205->135 |
95814-60B10-000 |
— | ||
|
22
|
22
95812-60B10-000
PACKING,CONDENSER SIDE
|
95812-60B10-000 |
— | ||
|
23
|
23
95811-60B10-000
PACKING,CONDENSER BOTTOM
|
95811-60B10-000 |
— | ||
