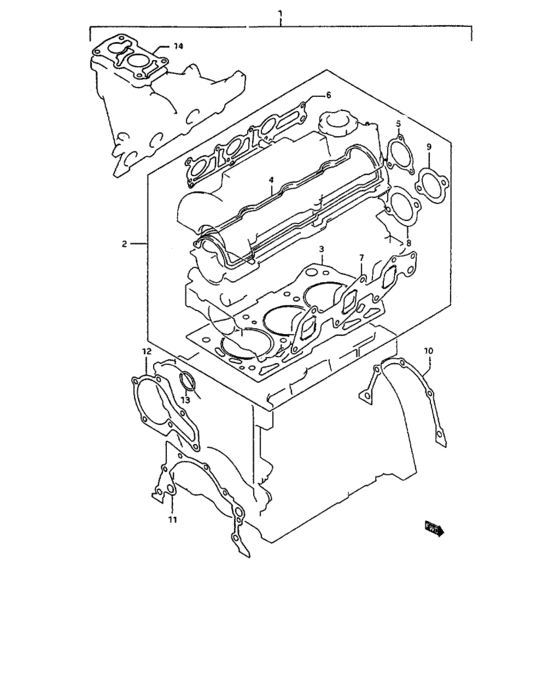

Engine gasket set (PRODUCT OF JAPAN) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-61828-000
Gasket set, engine
|
11400-61828-000 |
— | ||
| replacement | |||||
|
1
|
1
11401-61872-000 GASKET SET,ENGINE |
11401-61872-000 |
US $117.02 |
||
|
1
|
1
11401-61811-000
Gasket set, engine
JS2AA44S P5100444~ |
11401-61811-000 |
— | ||
| replacement | |||||
|
1
|
1
11401-61815-000
Gasket set,engine
JS2AA44S P5100444~ |
11401-61815-000 |
— | ||
|
2
|
2
11100-61812-000
Gasket set, cylinder head
|
11100-61812-000 |
— | ||
| replacement | |||||
|
2
|
2
11100-61815-000
GASKET SET,CYL HEAD
|
11100-61815-000 |
— | ||
|
3
|
3
11141-60B02-000 GASKET,CYL HEAD<-11141-60B01 |
11141-60B02-000 |
US $64.77 |
||
|
4
|
4
11189-60B00-000 GASKET,CYL HEAD COVER |
11189-60B00-000 |
US $42.40 |
||
|
5
|
5
11169-60B00-000 GASKET,DISTRIBUTOR CASE |
11169-60B00-000 |
US $2.36 |
||
|
6
|
6
13119-60B00-000 GASKET,INTK MANF |
13119-60B00-000 |
US $14.32 |
||
|
7
|
7
14141-60B01-000 GASKET,EXH MANF |
14141-60B01-000 |
US $20.06 |
||
|
8
|
8
17699-60B01-000
ガスケット,サーモスタットケース
|
17699-60B01-000 |
— | ||
| replacement | |||||
|
8
|
8
17699-60B02-000 GASKET,THERMO CASE |
17699-60B02-000 |
US $5.92 |
||
|
9
|
9
17569-82001-H17 GASKET,WTR THERMO CAP |
17569-82001-H17 |
US $2.24 |
||
|
10
|
10
11349-60A10-000
ガスケット,オイルシールハウジング
|
11349-60A10-000 |
— | ||
| replacement | |||||
|
10
|
10
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing |
11349-60A01-000 |
from US $6.05 |
||
|
11
|
11
16119-82011-000
ガスケット,オイルポンプ
|
16119-82011-000 |
— | ||
| replacement | |||||
|
11
|
11
16119-82012-000 GASKET,OIL PUMP |
16119-82012-000 |
US $23.20 |
||
|
12
|
12
17431-60A10-000
ガスケット,ウォータポンプ
|
17431-60A10-000 |
— | ||
| replacement | |||||
|
12
|
12
17431-60A00-000 GASKET,WATER PUMP |
17431-60A00-000 |
from US $3.80 |
||
|
13
|
13
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $1.28 |
||
|
14
|
14
13421-60B00-000
GASKET,THROTTLE BODY
|
13421-60B00-000 |
— | ||
|
14
|
14
13421-60E00-000
GASKET,THROTTLE BODY
JS2AA44S P5100444~ |
13421-60E00-000 |
— | ||
