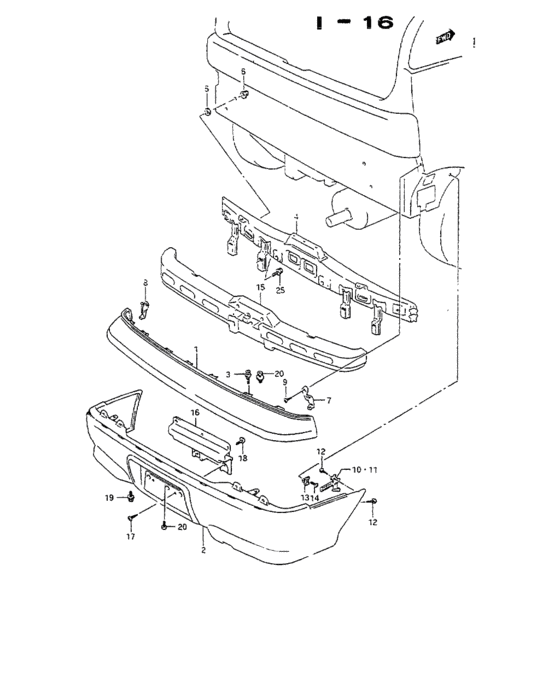

Rear bumper (92, 93 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-60E00-5PK BUMPER,RR,UPPER(BLACK)N/UNDER COAT(SEE NOTE) |
71811-60E00-5PK |
US $366.32 |
||
|
2
|
2
71812-60E00-5PK
BUMPER,RR LOWER
|
71812-60E00-5PK |
— | ||
|
3
|
3
09111-06061-000
Bolt,6x16.5
|
09111-06061-000 |
— | ||
| replacement | |||||
|
3
|
3
09111-06094-000 BOLT(6X16.5) |
09111-06094-000 |
from US $0.96 |
||
|
4
|
4
71820-60E10-000
Member, rear bumper
->71820-60General,USED WITH 09409-07325-5PK,(7PCS) |
71820-60E10-000 |
— | ||
| replacements | |||||
|
4
|
4
71820-60E11-000
Member comp,rear bumper
->71820-60General,USED WITH 09409-07325-5PK,(7PCS) |
71820-60E11-000 |
— | ||
|
4
|
4
09409-07325-5PK CLIP(BLACK)->71820-60General,USED WITH 09409-07325-5PK,(7PCS) |
09409-07325-5PK |
from US $1.60 |
||
|
4
|
4
71820-60E11-000
Member comp,rear bumper
JS2AA44S N5100311~ |
71820-60E11-000 |
— | ||
|
5
|
5
71841-60B00-000 SEAL,REAR BUMPER MEMBER |
71841-60B00-000 |
US $1.52 |
||
|
6
|
6
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
71831-60B00-000 ATTACHMENT,RR BUMPER SIDE,R |
71831-60B00-000 |
US $5.63 |
||
|
8
|
8
71836-60B00-000 ATTACHMENT,RR BUMPER SIDE,L |
71836-60B00-000 |
US $5.63 |
||
|
9
|
9
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
9
|
9
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
10
|
10
71851-60B00-000 SLIDER,REAR BUMPER SIDE,R |
71851-60B00-000 |
US $9.44 |
||
|
11
|
11
71852-60B00-000 SLIDER,REAR BUMPER SIDE,L |
71852-60B00-000 |
US $9.44 |
||
|
12
|
12
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
13
|
13
71753-60B00-000 HOLDER,BUMPER SIDE |
71753-60B00-000 |
US $2.24 |
||
|
14
|
14
03511-05123-000
スクリュ
|
03511-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03511-0512A-000 SCREW |
03511-0512A-000 |
from US $0.80 |
||
|
15
|
15
71861-60E10-000
Absorber, rear bumper
|
71861-60E10-000 |
— | ||
|
16
|
16
71870-60E10-000
PROTECTOR,LIC PLATE LAMP
|
71870-60E10-000 |
— | ||
|
17
|
17
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
17
|
17
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
18
|
18
03541-06163-000
スクリュ
|
03541-06163-000 |
— | ||
| replacement | |||||
|
18
|
18
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
|
19
|
19
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
19
|
19
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
20
|
20
09409-07325-5PK CLIP(BLACK)JS2AA44S N5100311~ |
09409-07325-5PK |
from US $1.60 |
||
