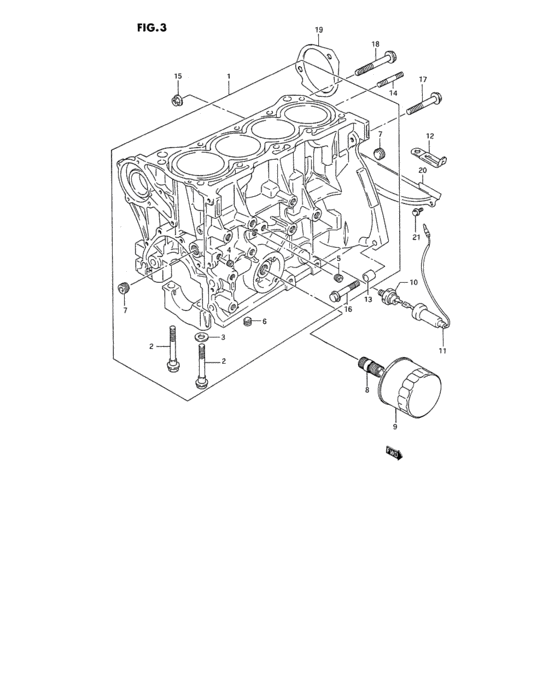

Cylinder (CYLINDER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-63B00-000
Block assy, cylinder
|
11200-63B00-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-52G03-000 BLOCK ASSY,CYLINDER |
11200-52G03-000 |
US $2,160.32 |
||
|
2
|
2
09103-10067-000
ボルト,10X70
|
09103-10067-000 |
— | ||
| replacements | |||||
|
2
|
2
11260-50G01-000 BOLT,CRANK BEARING CAP |
11260-50G01-000 |
US $1.98 |
||
|
2
|
2
11260-50G00-000
ボルト,ベアリングキャップ
|
11260-50G00-000 |
— | ||
|
3
|
3
09160-10039-000 WASHER(10.5X22X2.3) |
09160-10039-000 |
from US $1.06 |
||
|
4
|
4
09246-05003-000
プラグ,1/8PT,H:5.5
|
09246-05003-000 |
— | ||
| replacement | |||||
|
4
|
4
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.35 |
||
|
5
|
5
09246-06002-000
PLUG
|
09246-06002-000 |
— | ||
| replacement | |||||
|
5
|
5
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
6
|
6
09246-06001-000 PLUG(1/4PT,H:7.5) |
09246-06001-000 |
US $12.50 |
||
|
7
|
7
09246-08002-000 PLUG |
09246-08002-000 |
US $1.76 |
||
|
8
|
8
11241-73003-000 STAND,OIL FILTER |
11241-73003-000 |
US $6.40 |
||
|
9
|
9
16510-73002-000
フィルタ,オイル(TOKYO ROKI)
|
16510-73002-000 |
— | ||
| replacements | |||||
|
9
|
9
16510-60B00-CDN
Oil Filter
|
16510-60B00-CDN |
— | ||
|
9
|
9
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil |
16510-82703-000 |
from US $13.41 |
||
|
10
|
10
37820-82001-000
Switch assy, oil pressure
|
37820-82001-000 |
— | ||
| replacement | |||||
|
10
|
10
37820-820P0-000 SWITCH ASSY,OIL PRESSURE |
37820-820P0-000 |
from US $12.02 |
||
|
11
|
11
36895-82000-000
Wire, oil pressure switch
|
36895-82000-000 |
— | ||
| replacement | |||||
|
11
|
11
36895-60B00-000 WIRE,OIL PRESS SW |
36895-60B00-000 |
US $16.80 |
||
|
12
|
12
09404-10401-000
Clamp (l:52)
|
09404-10401-000 |
— | ||
| replacements | |||||
|
12
|
12
09404-10204-000
CLAMP(L:62)
|
09404-10204-000 |
— | ||
|
12
|
12
09404-10206-000 Clamp |
09404-10206-000 |
from US $3.21 |
||
|
13
|
13
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
13
|
13
04211-13189-000 PIN |
04211-13189-000 |
from US $1.17 |
||
|
14
|
14
09108-10113-000 BOLT,STUD |
09108-10113-000 |
from US $1.92 |
||
|
15
|
15
08316-16103-000 Nut |
08316-16103-000 |
US $1.30 |
||
| replacement | |||||
|
15
|
15
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
16
|
16
01537-10503-000
ボルト
|
01537-10503-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-1050A-000 BOLTBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
|
16
|
16
01550-1050B-000 BOLT |
01550-1050B-000 |
US $1.22 |
||
|
17
|
17
01537-10603-000
New Genuine Part
|
01537-10603-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-1060B-000 Bolt |
01550-1060B-000 |
US $1.60 |
||
|
18
|
18
01537-10703-000
New Genuine Part
|
01537-10703-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-1070A-000 Bolt |
01550-1070A-000 |
from US $1.60 |
||
|
19
|
19
11311-60B00-000 PLATE,STARTING MOTOR |
11311-60B00-000 |
US $2.88 |
||
|
20
|
20
11321-82000-000
プレート,クラッチハウジング,ロア
|
11321-82000-000 |
— | ||
| replacement | |||||
|
20
|
20
11320-83E01-000 PLATE,CLUTCH HSG LOWER |
11320-83E01-000 |
US $11.52 |
||
|
21
|
21
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
21
|
21
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
