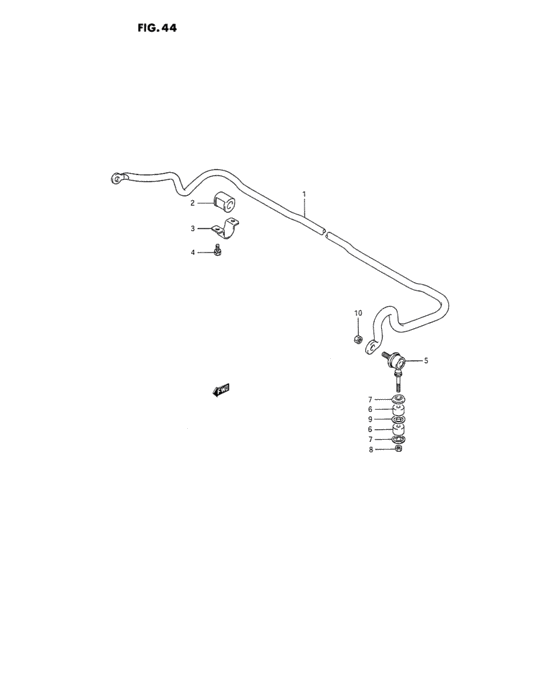

Front stabilizer (FRONT STABILIZER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-64B31-000
BAR,FR STABILIZER
|
42311-64B31-000 |
— | ||
|
2
|
2
42431-64B00-000
マウント,スタビライザバー
|
42431-64B00-000 |
— | ||
| replacements | |||||
|
2
|
2
42431-59J21-000 MOUNT,STAB BAR |
42431-59J21-000 |
from US $23.60 |
||
|
2
|
2
42431-59J00-000 MOUNT,STAB BAR |
42431-59J00-000 |
from US $5.74 |
||
|
3
|
3
42441-63B00-000 BRACKET,STABILIZER MOUNT |
42441-63B00-000 |
US $6.24 |
||
|
4
|
4
01137-08203-000
Bolt, brace front
|
01137-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
4
|
4
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
5
|
5
46630-60B01-000 JOINT,STABILIZER BAR |
46630-60B01-000 |
US $57.60 |
||
|
6
|
6
46651-60B01-000
Cushion, stabilizer link
|
46651-60B01-000 |
— | ||
| replacement | |||||
|
6
|
6
09320-10024-000 CUSHION |
09320-10024-000 |
from US $3.04 |
||
|
7
|
7
09165-10002-000 WASHER |
09165-10002-000 |
from US $2.08 |
||
|
8
|
8
09159-08083-000 NUT |
09159-08083-000 |
from US $1.28 |
||
|
9
|
9
09169-14008-000 WASHER |
09169-14008-000 |
US $23.60 |
||
|
10
|
10
09159-10056-000 NUT |
09159-10056-000 |
US $1.12 |
||
