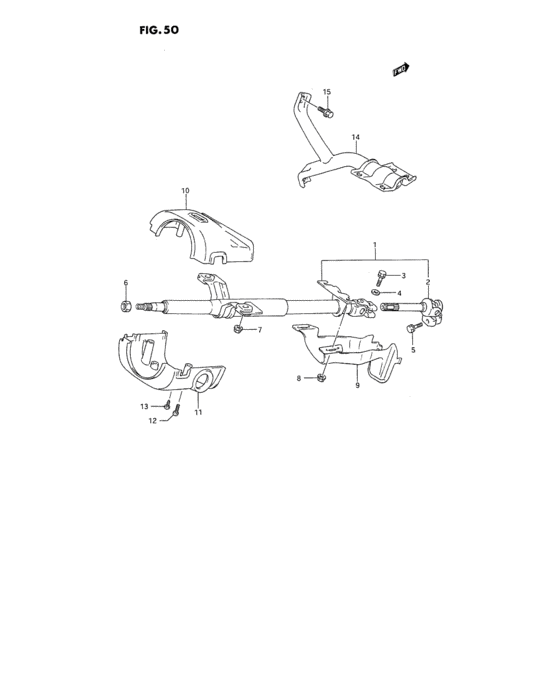

Steering column (STEERING COLUMN) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-63E50-000 COLUMN ASSY,COLPS STRG |
48200-63E50-000 |
US $461.12 |
||
|
2
|
2
48220-63B50-000
JOINT,STEERING SHAFT
|
48220-63B50-000 |
— | ||
|
3
|
3
48218-63B00-000
Bolt, steering joint
|
48218-63B00-000 |
— | ||
| replacement | |||||
|
3
|
3
09100-10262-000 BOLT(10X29)Bolt, arm knuckle tie-rod end |
09100-10262-000 |
from US $1.60 |
||
|
4
|
4
08321-31106-000
Washer lock
|
08321-31106-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
4
|
4
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
5
|
5
09117-08034-000
ボルト,8X30
|
09117-08034-000 |
— | ||
| replacement | |||||
|
5
|
5
09117-08053-000 BOLT(8X30) |
09117-08053-000 |
US $20.20 |
||
|
6
|
6
09159-12029-000
ナット
|
09159-12029-000 |
— | ||
| replacement | |||||
|
6
|
6
09159-12025-000 NUT |
09159-12025-000 |
US $1.82 |
||
|
7
|
7
09159-08052-000
ナット
|
09159-08052-000 |
— | ||
| replacement | |||||
|
7
|
7
09159-08135-000 NUT |
09159-08135-000 |
from US $0.81 |
||
|
8
|
8
08316-26086-000
Nut
|
08316-26086-000 |
— | ||
| replacements | |||||
|
8
|
8
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
8
|
8
08316-20087-000 NUT |
08316-20087-000 |
from US $3.77 |
||
|
9
|
9
48481-60E50-000 COVER,STRG JOINT |
48481-60E50-000 |
US $16.60 |
||
|
10
|
10
48411-62E50-5ES
Cover, steering column upper
|
48411-62E50-5ES |
— | ||
| replacement | |||||
|
10
|
10
48400-62E50-5ES
COVER SET,STRG COLUMN
|
48400-62E50-5ES |
— | ||
|
11
|
11
48421-62E50-5ES
Cover, steering column lower
|
48421-62E50-5ES |
— | ||
| replacement | |||||
|
11
|
11
48400-62E50-5ES
COVER SET,STRG COLUMN
|
48400-62E50-5ES |
— | ||
|
12
|
12
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
US $0.96 |
||
|
13
|
13
03211-05166-000
Screw, l:16
|
03211-05166-000 |
— | ||
| replacement | |||||
|
13
|
13
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
14
|
14
72410-60E10-000
SUPPORT,STEERING BRACKET
|
72410-60E10-000 |
— | ||
|
15
|
15
01517-08165-000
Bolt, side
|
01517-08165-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
15
|
15
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
