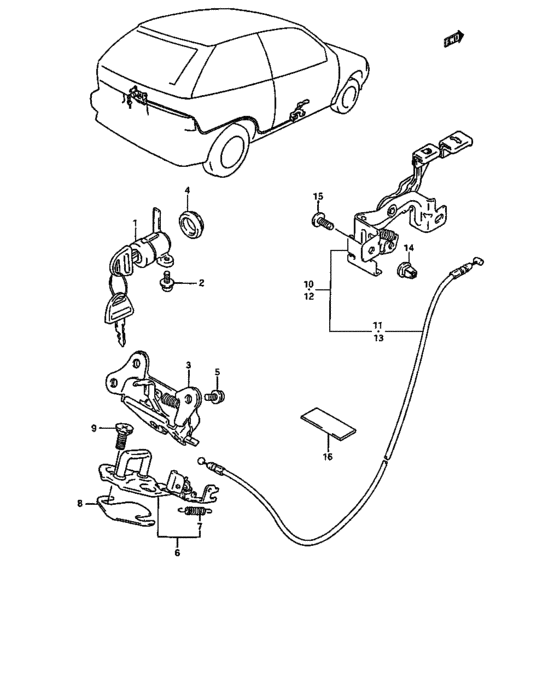

Back door lock (3DR, 5DR) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- U.S.A.
- transmission
- MT
- grade
- GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82500-61830-000 CYLINDER,BACK DR LOCK |
82500-61830-000 |
US $49.68 |
||
|
2
|
2
02112-75123-000
Screw
|
02112-75123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-7512A-000 SCREW |
02112-7512A-000 |
from US $2.21 |
||
|
3
|
3
82510-60B01-000 LATCH ASSY,BACK DR3DR, <-82510-60B00 |
82510-60B01-000 |
US $48.21 |
||
|
3
|
3
82510-62B01-000 LATCH ASSY,BACK DR5DR, <-82510-62B00 |
82510-62B01-000 |
US $47.10 |
||
|
4
|
4
82591-60B00-000 PACKING,BACK DOOR CYLINDER |
82591-60B00-000 |
US $1.52 |
||
|
5
|
5
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
6
|
6
82650-60E01-000
ストライカ,バックドアラッチ
3DR:GA, <-82650-60 |
82650-60E01-000 |
— | ||
| replacement | |||||
|
6
|
6
82650-60E0V-000 STRIKER,BACK DOOR LATCH3DR:GA, <-82650-60 |
82650-60E0V-000 |
US $12.40 |
||
|
6
|
6
82650-60E11-000
ストライカ,バックドアラッチ
3DR:GL, GTI, GT, LIMITED,<-82650-60Chile |
82650-60E11-000 |
— | ||
| replacement | |||||
|
6
|
6
82650-60E1V-000 STRIKER,BACK DOOR LATCH3DR:GL, GTI, GT, LIMITED,<-82650-60Chile |
82650-60E1V-000 |
US $43.33 |
||
|
7
|
7
82655-60B00-000
Spring
|
82655-60B00-000 |
— | ||
|
8
|
8
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
9
|
9
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
9
|
9
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
9
|
9
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
9
|
9
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
9
|
9
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
9
|
9
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
10
|
10
83310-60B30-000 HANDLE,BACK DOOR OPENER3DR:GL, LIMITED |
83310-60B30-000 |
US $246.56 |
||
|
10
|
10
83310-60B10-000
HANDLE,BACK DOOR OPENER
3DR:GTI, GT |
83310-60B10-000 |
— | ||
|
11
|
11
83340-70C00-000 CABLE,BACK DR OPENER3DR:GL, GTI, GT, <-83340-60B10 |
83340-70C00-000 |
US $46 |
||
|
12
|
12
83310-62B10-000
Handle, opener
5DR |
83310-62B10-000 |
— | ||
| replacement | |||||
|
12
|
12
83310-60B10-000
HANDLE,BACK DOOR OPENER
5DR |
83310-60B10-000 |
— | ||
|
13
|
13
83340-70C00-000 CABLE,BACK DR OPENER5DR, <-83340-62B10 |
83340-70C00-000 |
US $46 |
||
|
14
|
14
09148-06007-000 NUTGL, GTI, GT, GLX, GS |
09148-06007-000 |
from US $0.65 |
||
|
15
|
15
03241-06123-000
Screw
GL, GTI, GT, GLX, GS |
03241-06123-000 |
— | ||
| replacement | |||||
|
15
|
15
03241-0612A-000 SCREWGL, GTI, GT, GLX, GS |
03241-0612A-000 |
US $0.80 |
||
|
16
|
16
36930-82000-000
カバー
GL, GTI, GT, GLX, GS |
36930-82000-000 |
— | ||
| replacement | |||||
|
16
|
16
36930-82010-000 COVER,HARNESSCover, roof wire GL, GTI, GT, GLX, GS |
36930-82010-000 |
from US $1.73 |
||
