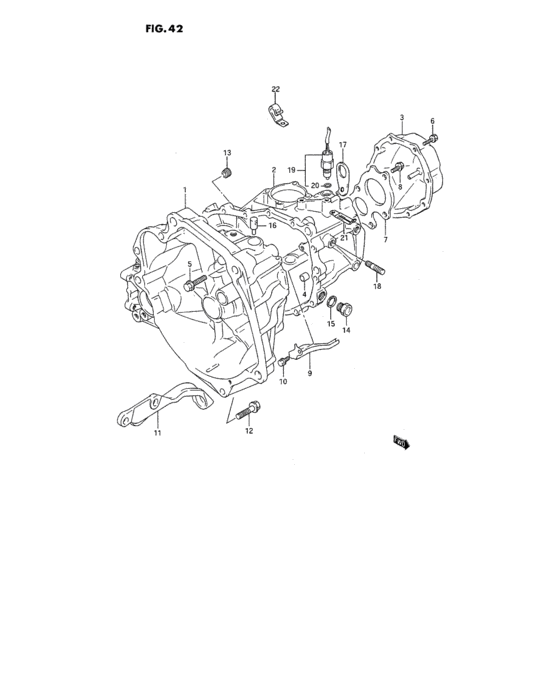

Mt tm transmission case (2WD:MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Africa
- drive
- 2WD
- transmission
- MT
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-70C02-000
ケース,トランスミッション,ライト
->24711-70C03,USED WITH 09250-26005 |
24711-70C02-000 |
— | ||
| replacements | |||||
|
1
|
1
24711-70C03-000
CASE,TRANSAXLE,R
->24711-70C03,USED WITH 09250-26005 |
24711-70C03-000 |
— | ||
|
1
|
1
09250-26005-000 CAP(OD:36)->24711-70C03,USED WITH 09250-26005 |
09250-26005-000 |
from US $2.48 |
||
|
1
|
1
24711-70C03-000
CASE,TRANSAXLE,R
AH14S-250383~,JSAEAH14S00252282~,JS2AH14S R5100842~ |
24711-70C03-000 |
— | ||
|
2
|
2
24721-70C02-000
ケース,トランスミッション,レフト
->24721-70C03,USED WITH 09246-16010 |
24721-70C02-000 |
— | ||
| replacements | |||||
|
2
|
2
09246-16010-000
PLUG
->24721-70C03,USED WITH 09246-16010 |
09246-16010-000 |
— | ||
|
2
|
2
24721-63J21-000 CASE,TRANSAXLE,L->24721-70C03,USED WITH 09246-16010 |
24721-63J21-000 |
US $450.56 |
||
|
2
|
2
09246-16021-000 Plug,t/m Oil Drain->24721-70C03,USED WITH 09246-16010 |
09246-16021-000 |
from US $4.01 |
||
|
2
|
2
24721-70C03-000
ケース,トランスミッション,レフト
AH14S-203198~,JSAEAH14S00152727~ |
24721-70C03-000 |
— | ||
| replacement | |||||
|
2
|
2
24721-63J21-000 CASE,TRANSAXLE,LAH14S-203198~,JSAEAH14S00152727~ |
24721-63J21-000 |
US $450.56 |
||
|
3
|
3
24730-70C01-000
カバー,トランスミッション,サイド
|
24730-70C01-000 |
— | ||
| replacement | |||||
|
3
|
3
24730-70C03-000
COVER,TRANSAXLE SIDE
|
24730-70C03-000 |
— | ||
|
4
|
4
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
5
|
5
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
5
|
5
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
6
|
6
09135-06022-000
Bolt
|
09135-06022-000 |
— | ||
| replacement | |||||
|
6
|
6
09135-06027-000 BOLT(6X12) |
09135-06027-000 |
from US $1.12 |
||
|
7
|
7
24725-70C01-000
プレート,レフトケース
<-24725-70C00 |
24725-70C01-000 |
— | ||
| replacement | |||||
|
7
|
7
24725-59J20-000 PLATE,LEFT CASE<-24725-70C00 |
24725-59J20-000 |
US $26.68 |
||
|
8
|
8
09117-08050-000 BOLT(8X20) |
09117-08050-000 |
US $2.24 |
||
|
9
|
9
24810-70C00-000 GUTTER,INPUT OIL |
24810-70C00-000 |
US $5.30 |
||
|
10
|
10
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
10
|
10
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
11
|
11
24791-70C00-000
STIFFENER,TRANSAXLE CASE LWR
|
24791-70C00-000 |
— | ||
|
12
|
12
01550-10403-000
Bolt
|
01550-10403-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-1040B-000 BOLT |
01550-1040B-000 |
from US $3.53 |
||
|
12
|
12
01550-1040A-000 BOLT |
01550-1040A-000 |
from US $1.12 |
||
|
13
|
13
09250-16011-000
Plug,od:19.5
|
09250-16011-000 |
— | ||
|
14
|
14
09247-18003-000 PLUG |
09247-18003-000 |
US $1.76 |
||
|
15
|
15
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) |
09160-18018-000 |
US $0.96 |
||
|
16
|
16
24821-09001-000 PLUG,T/M BREATHERPlug, breather |
24821-09001-000 |
from US $3.04 |
||
|
17
|
17
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
18
|
18
09108-10106-000 BOLT,STUD |
09108-10106-000 |
from US $6.38 |
||
|
19
|
19
37610-70B11-000 SWITCH ASSY,BACK UP LAMP |
37610-70B11-000 |
from US $28.94 |
||
|
20
|
20
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
21
|
21
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
22
|
22
09403-09315-000 CLAMP |
09403-09315-000 |
US $19.10 |
||
